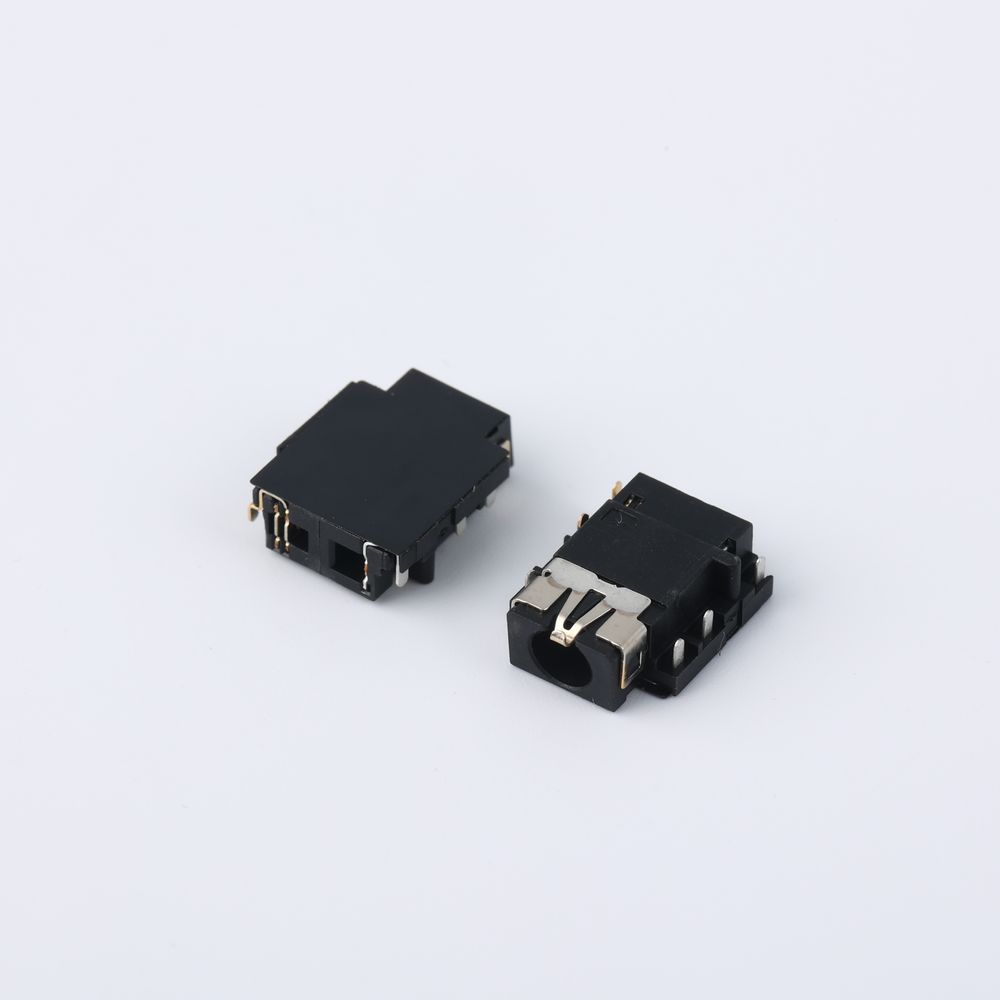

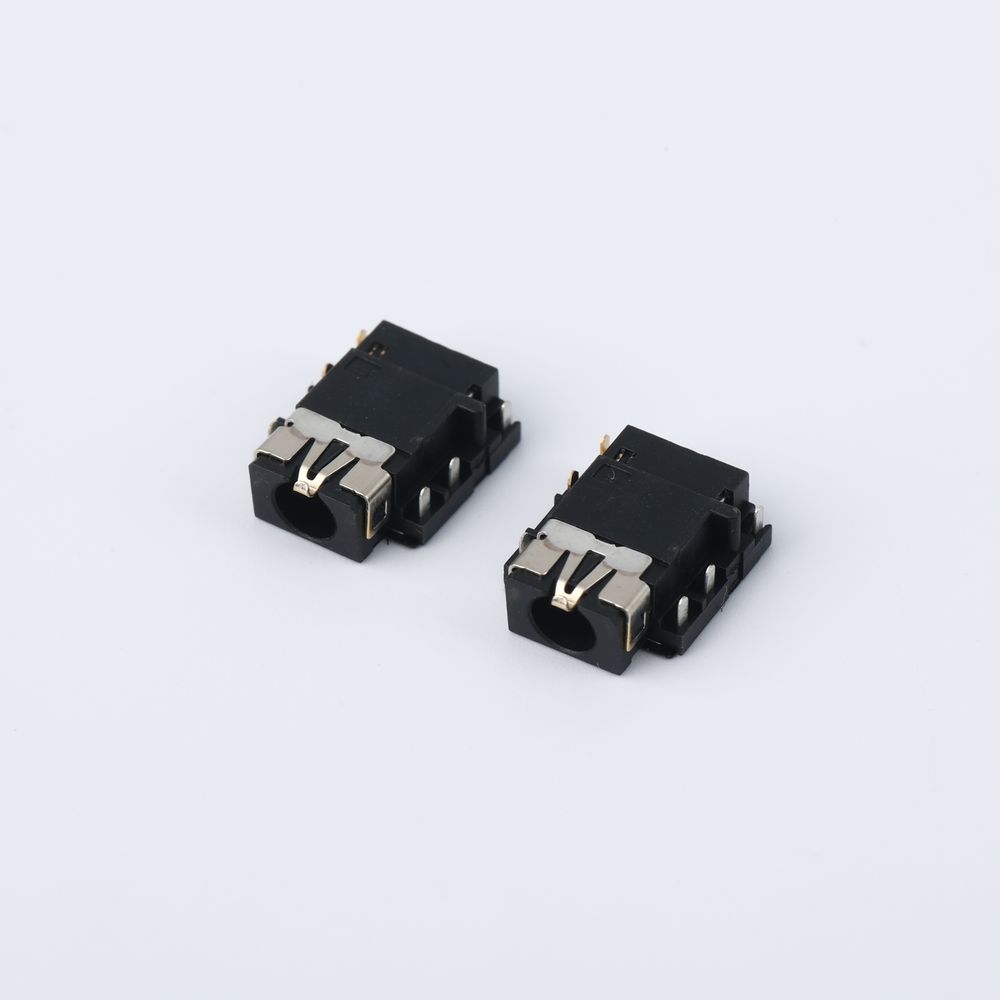

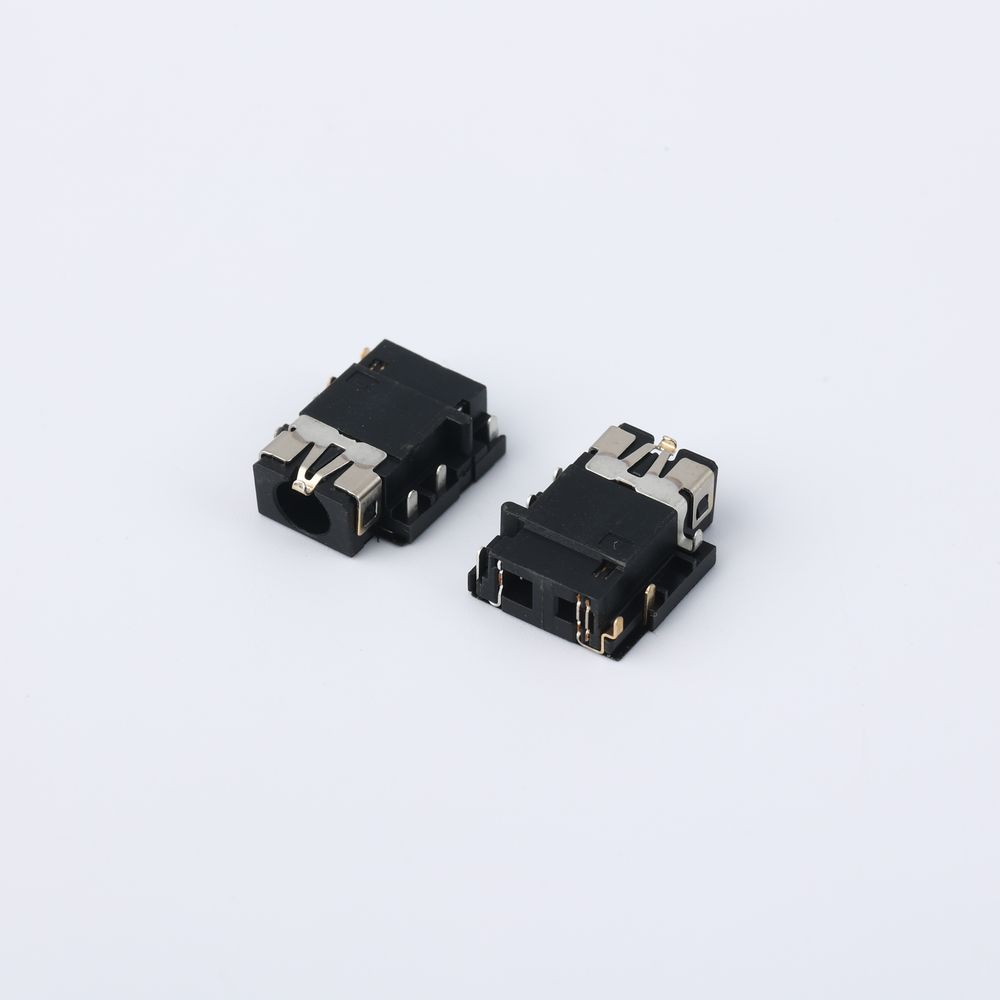

model numarası.: AAPJ+J3B06+M101Z φ=3.5 phone Jack CH=-0.20
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP PLASTIC BLACK |
| SEPARATOR: | HIGH TEMP PLASTIC BLACK |
| CONTACT-1: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN |
| CONTACT-2: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN |
| CONTACT-3: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN |
| CONTACT-4: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN, TIN 50U'' MIN |
| CONTACT-5: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN |
| CONTACT-6: | PHOSPHOR BRONZE T=0.20mm, AU 1U'' MIN |
| MALAR: | T=0.8mm, BLACK |
| CURUENT RATING: | 0.5AMP |
| VOLTAGE RATING: | 12VAC RMS |
| CONTACT RESISTANCE: | 50mΩ MAX.(initial), 100mΩ MIN (after humidity test) |
| INSULATION RESISTANCE: | 100mΩ MIN, 500VDC (initial), 100mΩ MIN 500VDC (after humidity test) |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500VAC RMS 50 (60) HZ FOR 1 MINUTE |
| INSERTION FORCE : | 3.0Kgf MAX |
| WITHDRAWAL FRCE : | 0.3Kgf MAX |
| OPERATING LIFE: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE: | -30℃~+80℃ |
