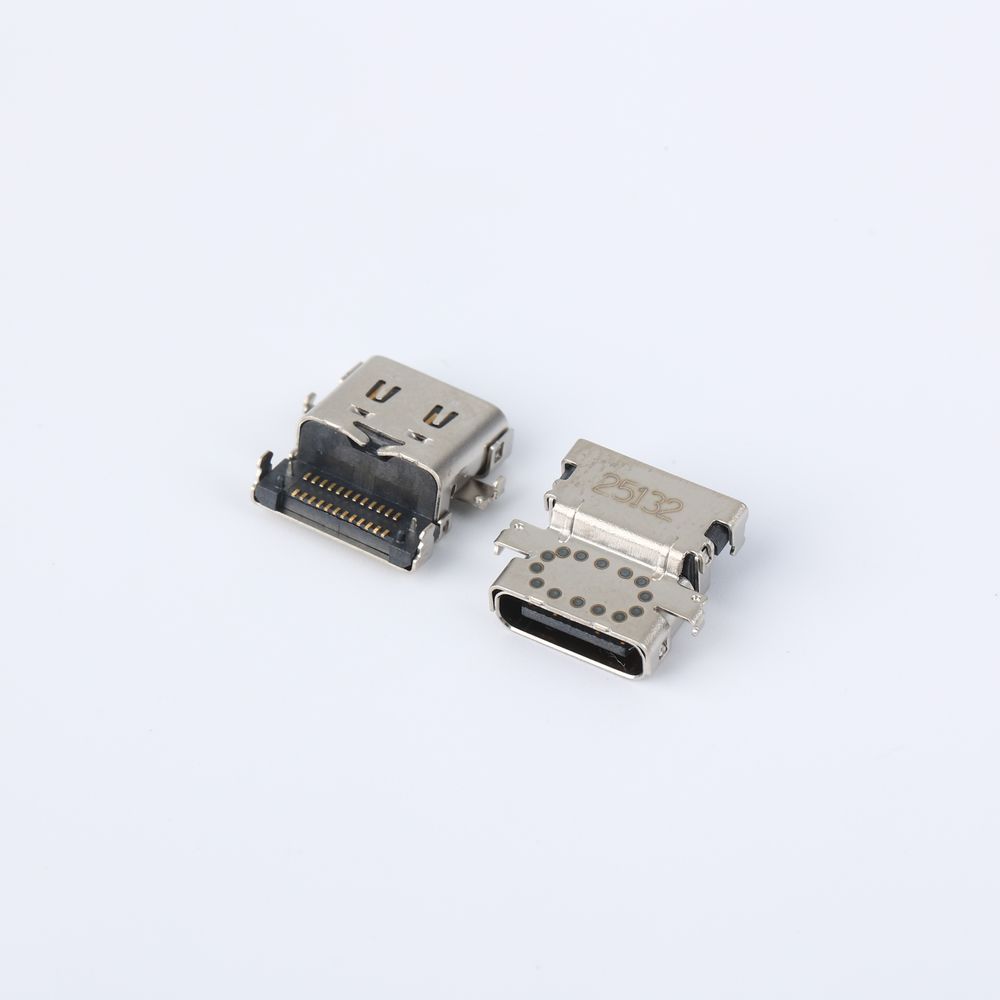

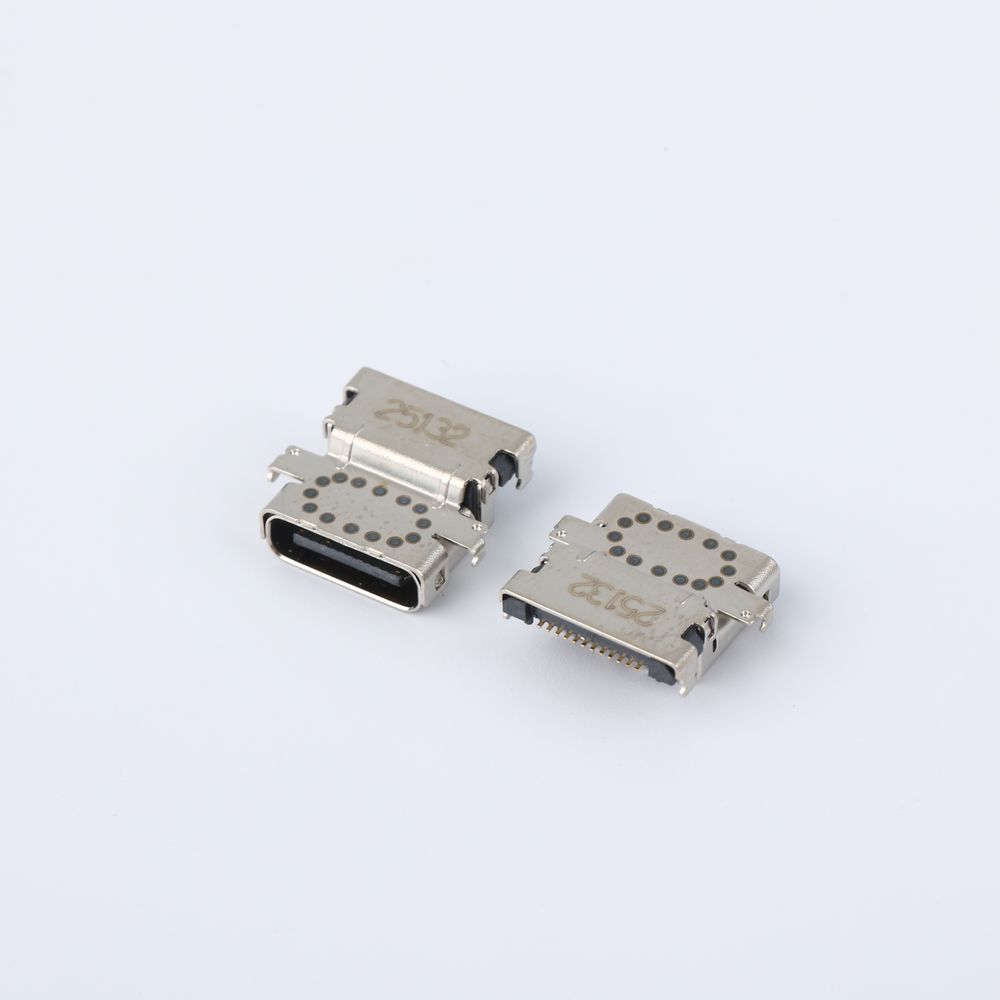

model numarası.: AUS+C064+140B USB4 GEN3 TYPE-C SMT 24PIN
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP E6808UHF+40%GF[UL94 V-0] BLACK |
| CONTACT: | COPPER ALLOY(C18400), Ni 50u” MIN. UNDER PLATED OVER ALL |
| Ni 50u” MIN. UNDER PLATED OVER ALL | |
| GOLD PLATING 3050u” MIN ON CONTACT AREA | |
| G/F PLATING ON SOLDER AREA | |
| OUT SHELL: | SUS304 3/4H, Ni 50u” MIN. PLATING ON SOLDER AREA |
| MID SHELL: | SUS301 EH T=0.15, Ni 50u” MIN. PLATING ON SOLDER AREA |
| IN SHELL: | SUS304 3/4H, Ni 50u” MIN. PLATING ON SOLDER AREA |
| HF COMPLIANT, ROHS COMPLIANT | |
| ELECTRICAL: | |
| CURRENT RATING: | 5A MAX |
| VOLTAGE RATING: | 20V AV |
| TEMPERATURE RANGE: | -25℃ ~ +85℃ |
| THE PEAK TEMPERATURE ON THE BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260℃ | |
