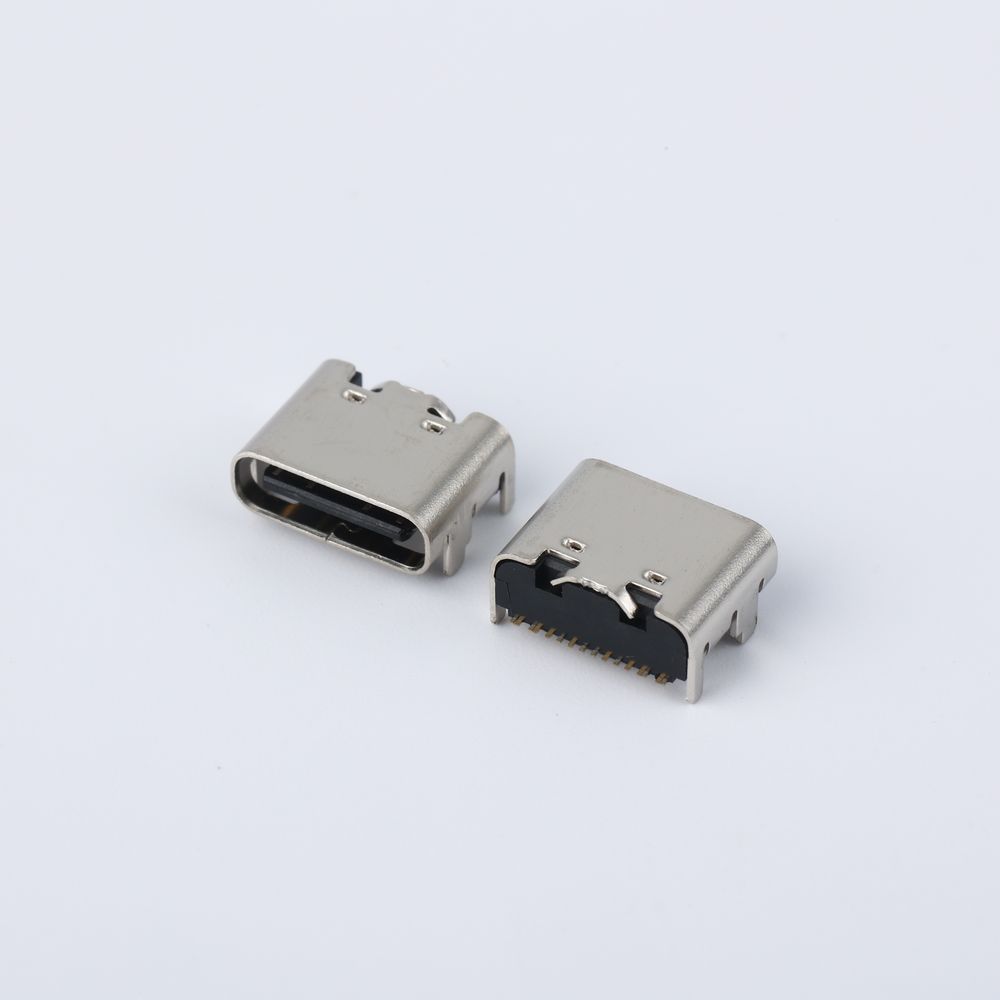

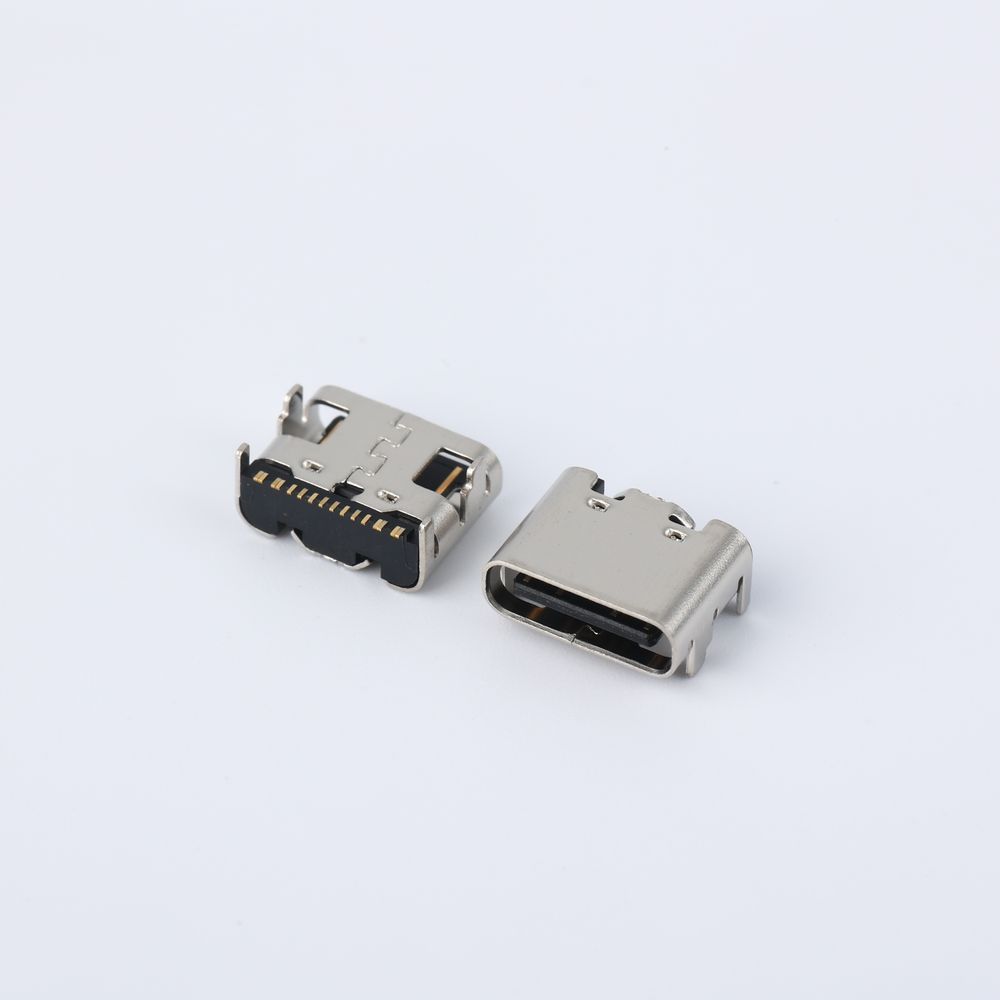

model numarası.: AAUS+TC16P+CF022 16PIN TYPE-C SINGLE SMT L=6.75mm
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94 V-0 BLACK |
| CONTACT: | COPPER ALLOY(C2680) |
| Ni 50u” MIN. UNDER PLATED OVER ALL | |
| 1u” Au PLATED ON THE TUNCTIONAL AREA OF CONTACT | |
| (GOLD PLATING THICKNESS FOLLOW THE P/N) | |
| PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N | |
| FRONT SHELL: | STAINLESS STEEL(SUS304), Ni 30u'' MIN UNDER PLATED OVER ALL |
| CLIP: | STAINLESS STEEL(SUS301), CLEAR ONLY |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
| ELECTRICAL: | |
| CURRENT RATING: | 5A |
| VOLTAGE RATING: | 5V |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| ENVIRONMENTAL: | |
| TEMPERATURE RANGE: | -25℃ ~ +90℃ |
| THE PEAK TEMPERATURE ON THE BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260℃ | |
