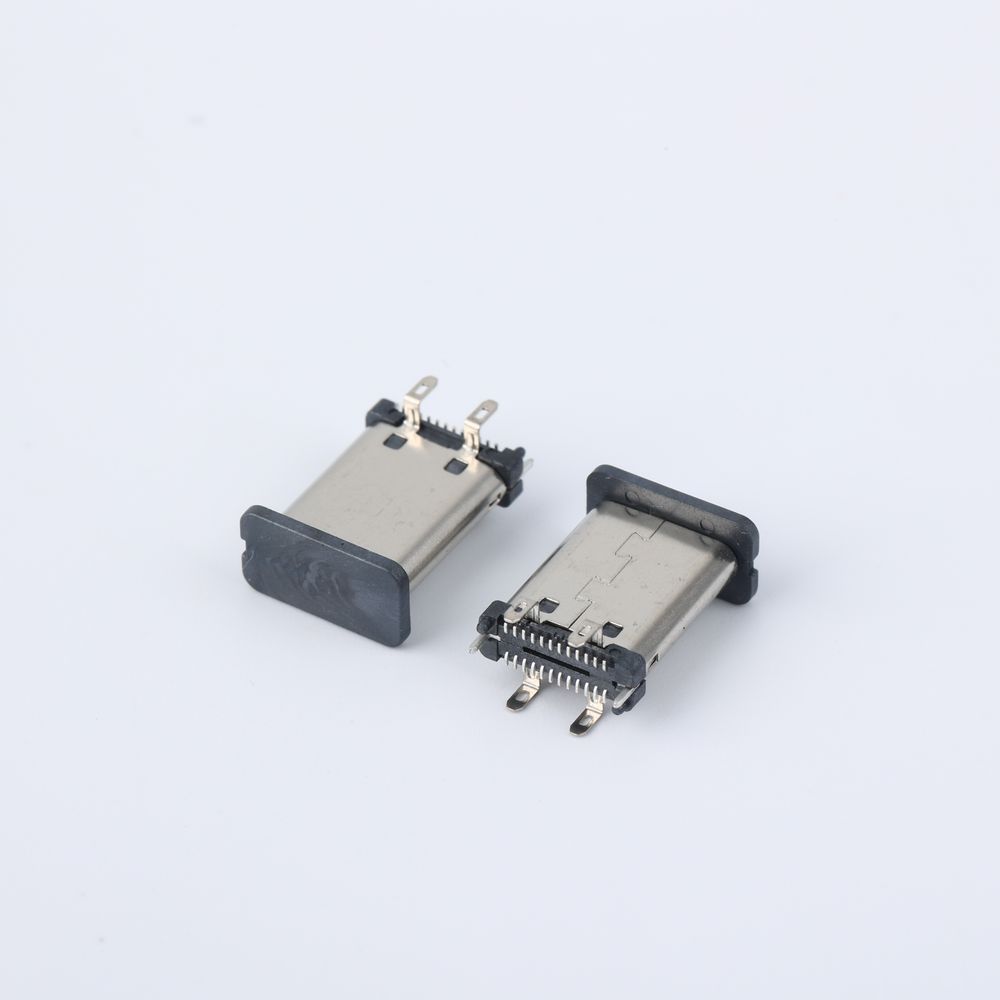

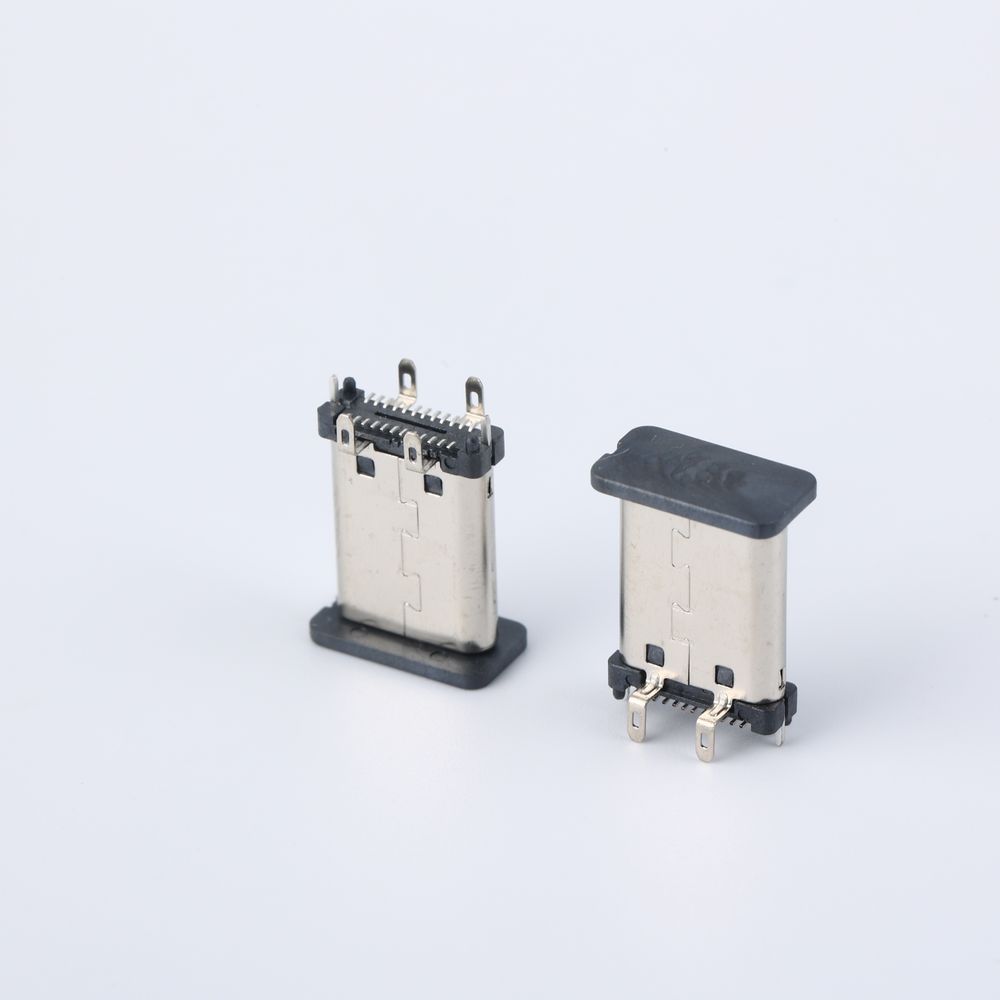

model numarası.: AAUS+TC24P+HSD129 USB C PLUG 24PIN SMT L=11.1mm
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING & PICKUP COVER: | LCP UL94 V-0 BLACK |
| CONTACT: | COPPER ALLOY(C7025) |
| Ni 50u” MIN. UNDER PLATED OVER ALL | |
| Au PLATED ON THE TUNCTIONAL AREA OF CONTACT | |
| (GOLD PLATING THICKNESS FOLLOW THE P/N) | |
| PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N | |
| FRONT SHELL: | STAINLESS STEEL(SUS304), Ni 30u” MIN UNDER PLATED OVER ALL |
| LATCH: | STAINLESS STEEL(SUS301), Ni 50u” MIN. UNDER PLATED OVER ALL 80u” MIN Tin PLATED ON SOLDER AREA |
| FRONT SHELL: | STAINLESS STEEL(SUS304), Ni 30u” MIN UNDER PLATED OVER ALL |
| SPRING: | STAINLESS STEEL(SUS304), CLEAR ONLY |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
| CURRENT RATING: | 5A/6.5A |
| VOLTAGE RATING: | 24V/20V |
| LLCR: | VBUS & GEN PINS AND OTHER PINS: 40m/PIN MAX |
| SHIELD: | 50m/MAX |
| LLCR MAX CHANGE OF ALL PINS: | 10m |
| INSULATION RESISTANCE: | 100m MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| TEMPERATURE RANGE: | -25℃ ~ 85℃ |
