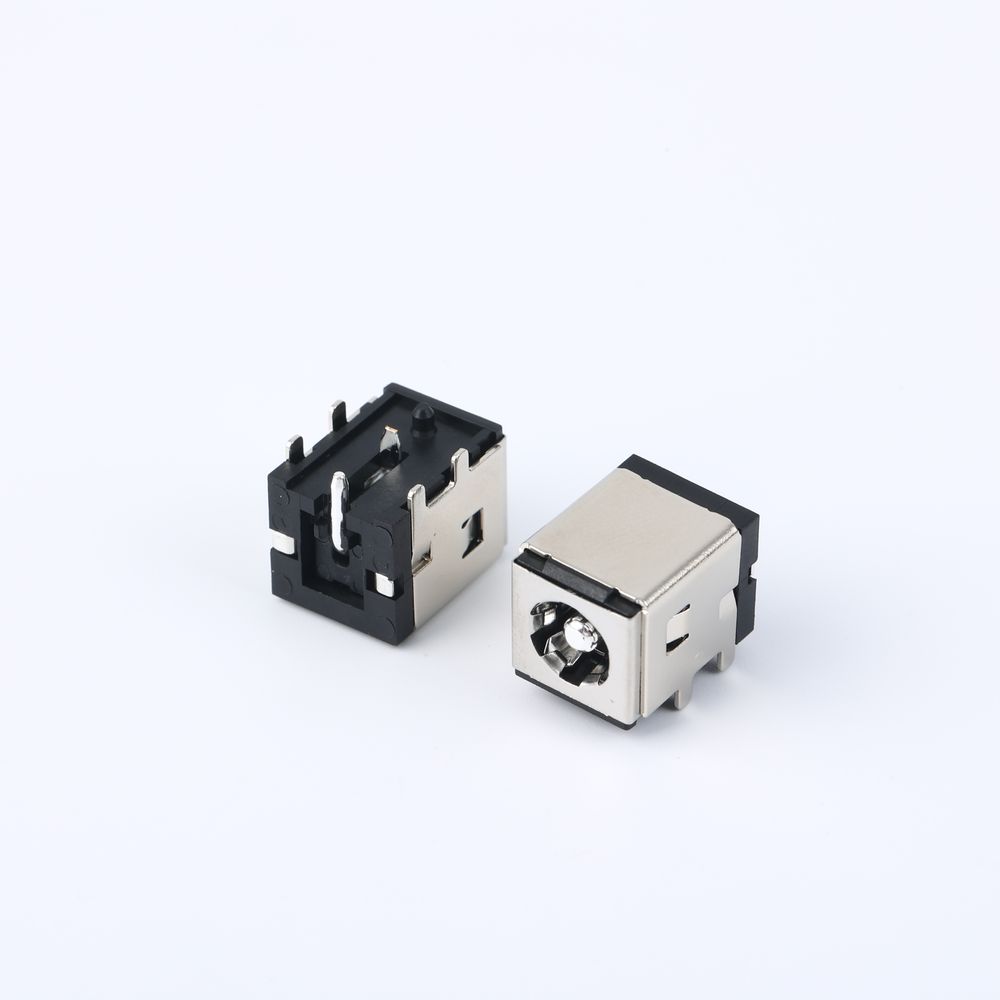

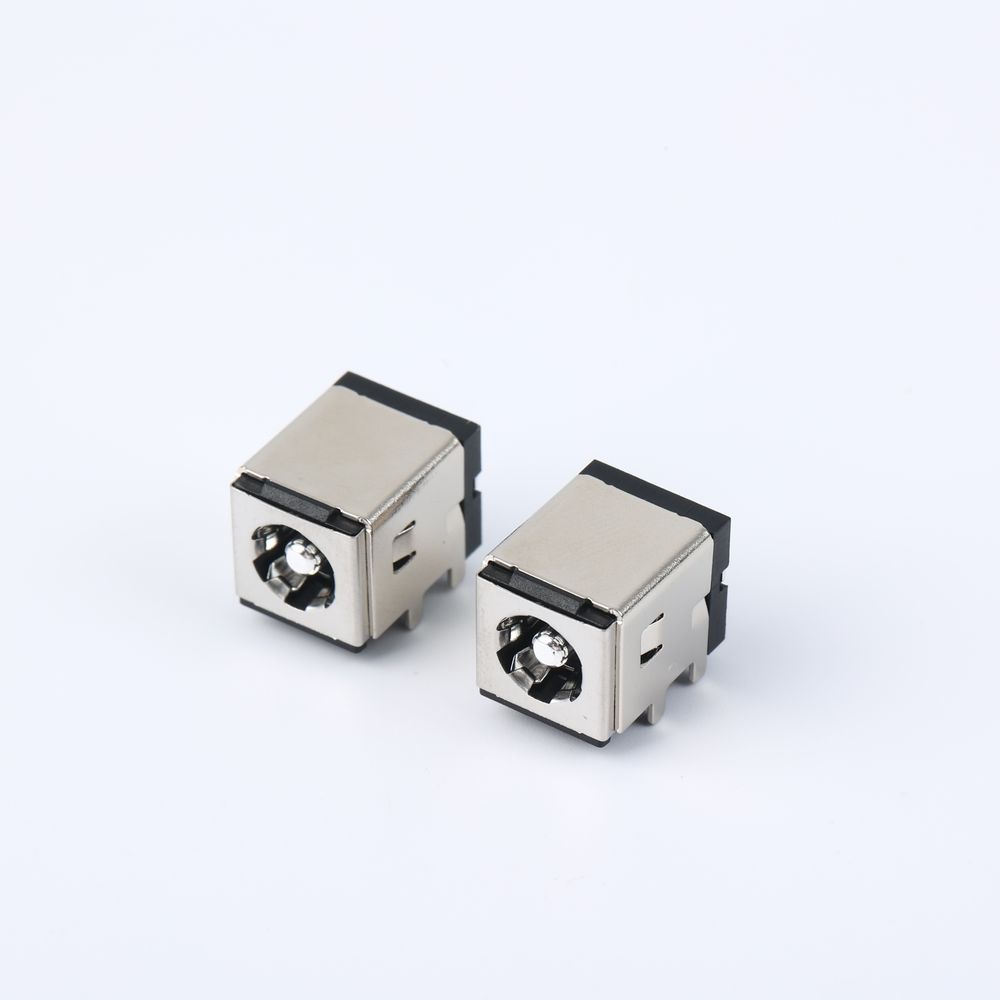

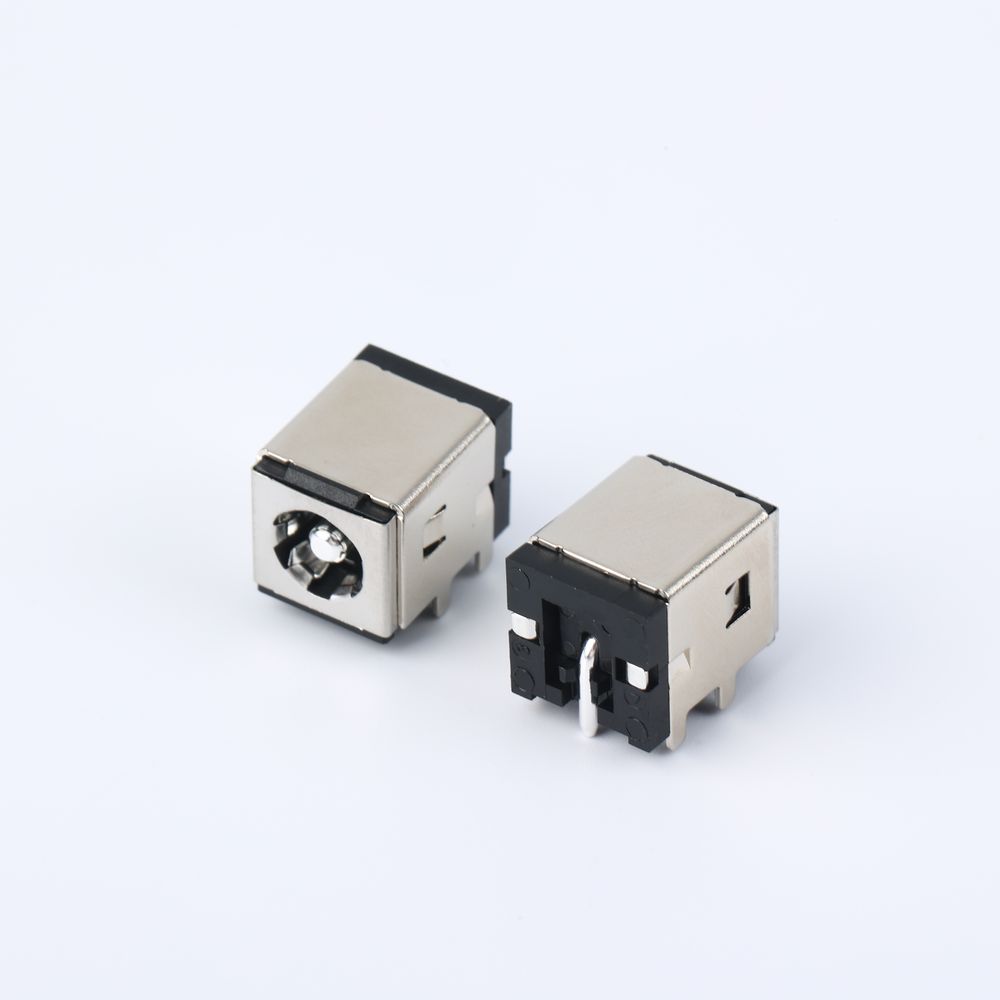

model numarası.: APJ+6D44+081 dc power jack
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA9T UL94-0 HALOGEN-FREE, BLACK |
| SPRING: | PHOSPHOR BROZEN T=0.3mm, 60U'' MIN SN ON CONTACT AREA, 60U'' MIN CU ON SOLDER, 60U'' NI |
| PIN: | BRASS, 20U'' MIN AG ON CONTACT AREA, 60U'' MIN CU ON SOLDER, 60U'' NI |
| STOPPER: | PA9T UL94-0 HALOGEN-FREE, BLACK |
| SHELL: | SPCC-SD T=0.4mm, 60U'' NI PLATED |
| GROUND: | STAILESS T=0.15mm |
| RATING CURRENT: | 20V 13A |
| CONTCAT RESISTANCE: | NOT EXCEED 30mΩ MAX |
| DIELECTRIC WITHSTANDING VOLTAGE: | 250V AC |
| INSULATON RESISTANCE: | 100mΩ MIN BY 500VOLTS MEGGER |
| INSERTION FORCE : | 3.0KGF MAX |
| WITHDRAWAL FORCE: | 1.0~3.0KGF MIN |
| OPERATING TEMPERATURE RANGE: | 5~85℃ |
| PACKAGING: | TRAY/REEL |
