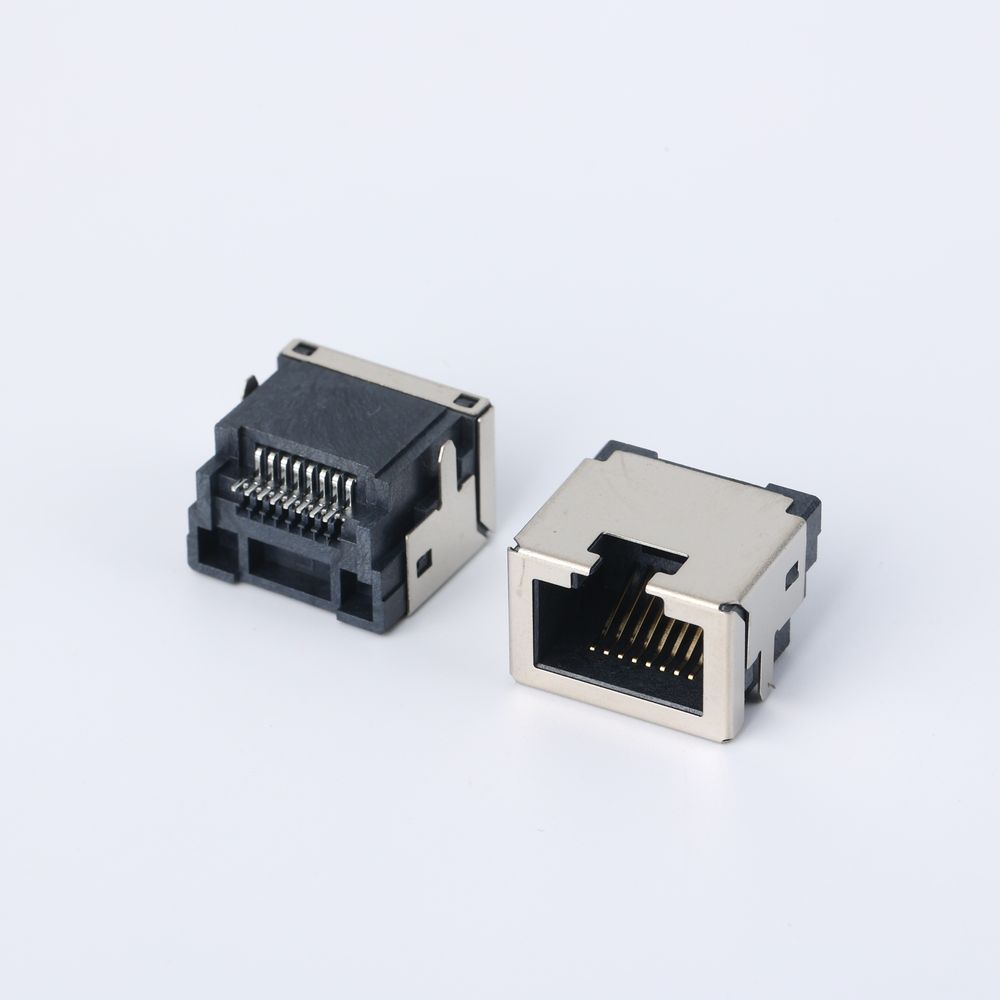

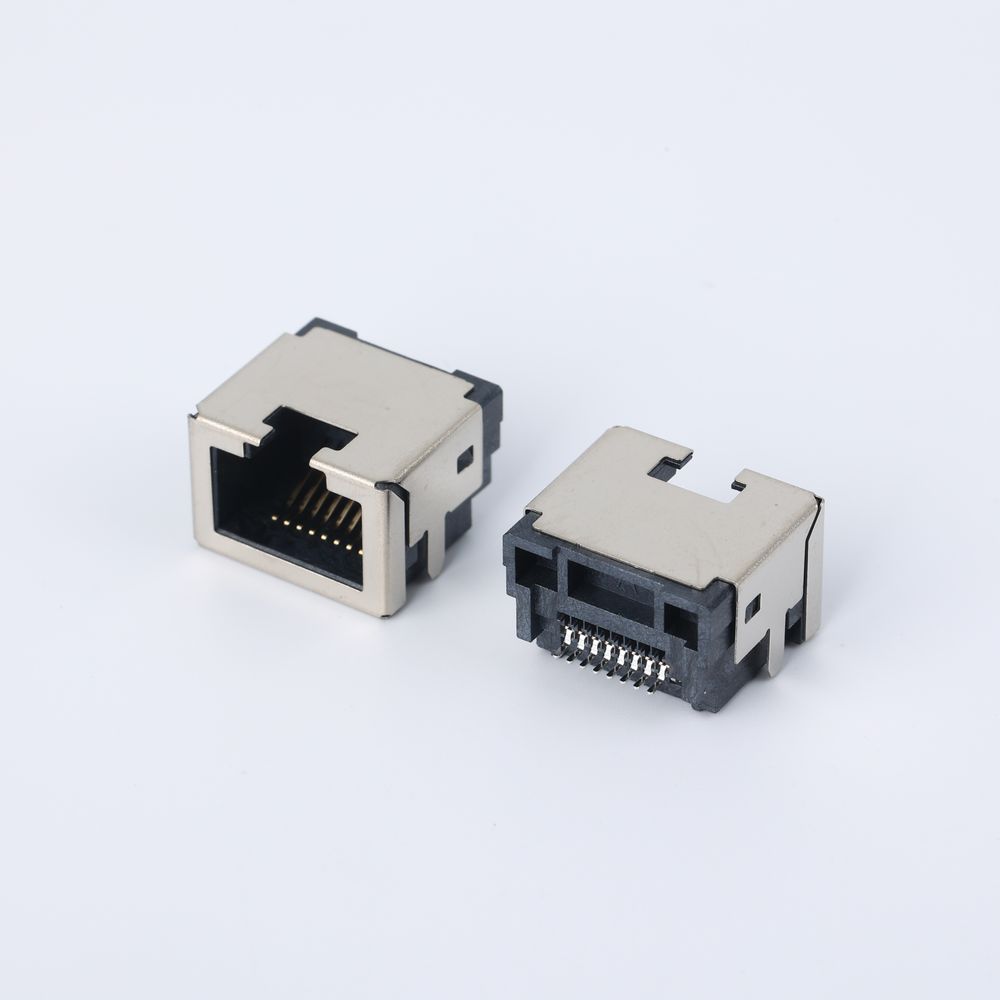

model numarası.: AAOE+81R2+MM00 RJ45 connector 8P8C SMT without LED
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Material description | |
| HOUSING: | LCP UL94V-0, BLACK |
| CONTACT: | PHOSPHOR BROZEN, GOLD PLATING ON CONTACT AREA, MATTE TIN AT TAIL 80U'' MIN, NICKEL 30U'' MIN OVER ALL |
| SHELL: | SUS201, NICKEL 30U'' MIN PLATING OVER ALL |
| ELECTRICAL: | |
| CURUENT RATING: | 1.5AMP |
| VOLTAGE RATING: | 125VAC RMS |
| CONTACT RESISTANCE: | 40mΩ MAX |
| INSULATION RESISTANCE: | 500mΩ MIN AT 500VDC |
| DIELECTRIC STRENGTH: | 1000VAC 50HZ OR 60HZ 1 MINUTE |
| OPERATING LIFE: | 750 CYCLES MIN |
| STORAGE TEMPERATURE: | -40℃~+85℃, HUMIDITY ＜80% |
| GUARANTEE PERIOD: | 12 MONTHS |
| OPERATING TEMPERATURE: | -40℃~+85℃ |
