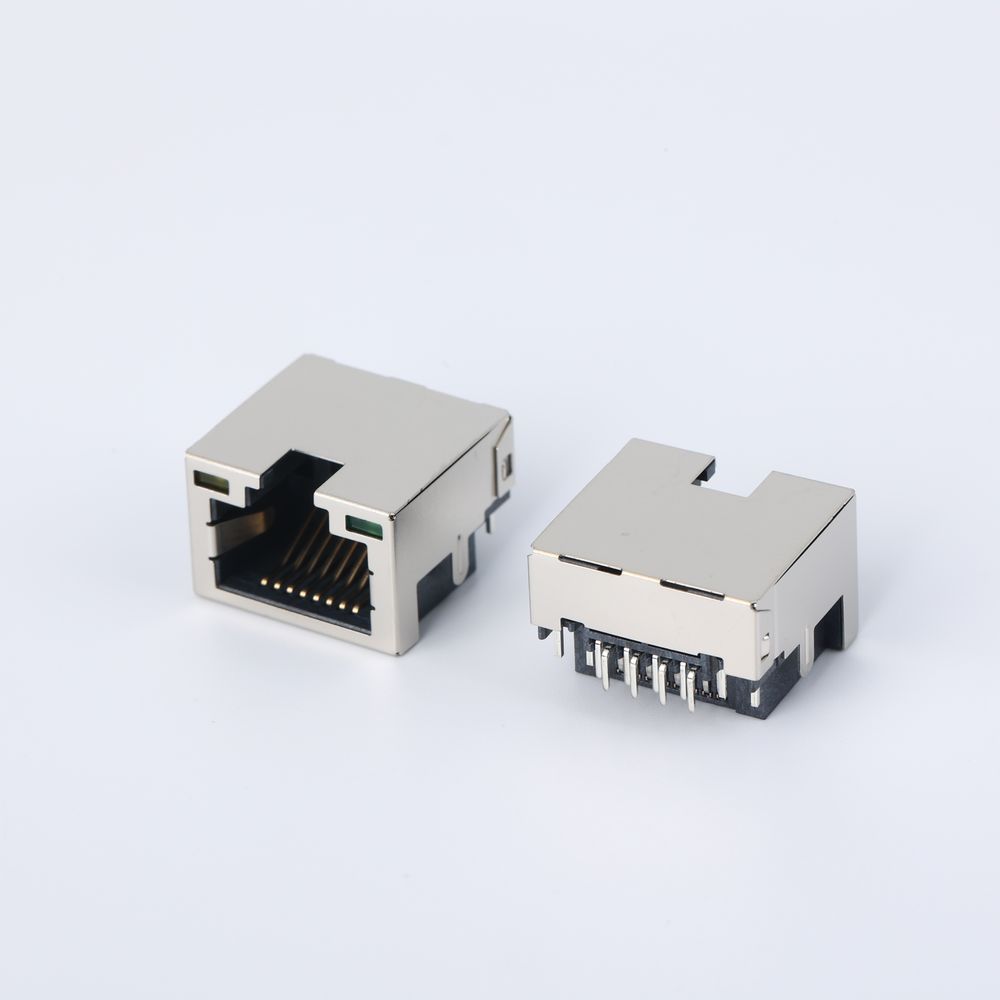

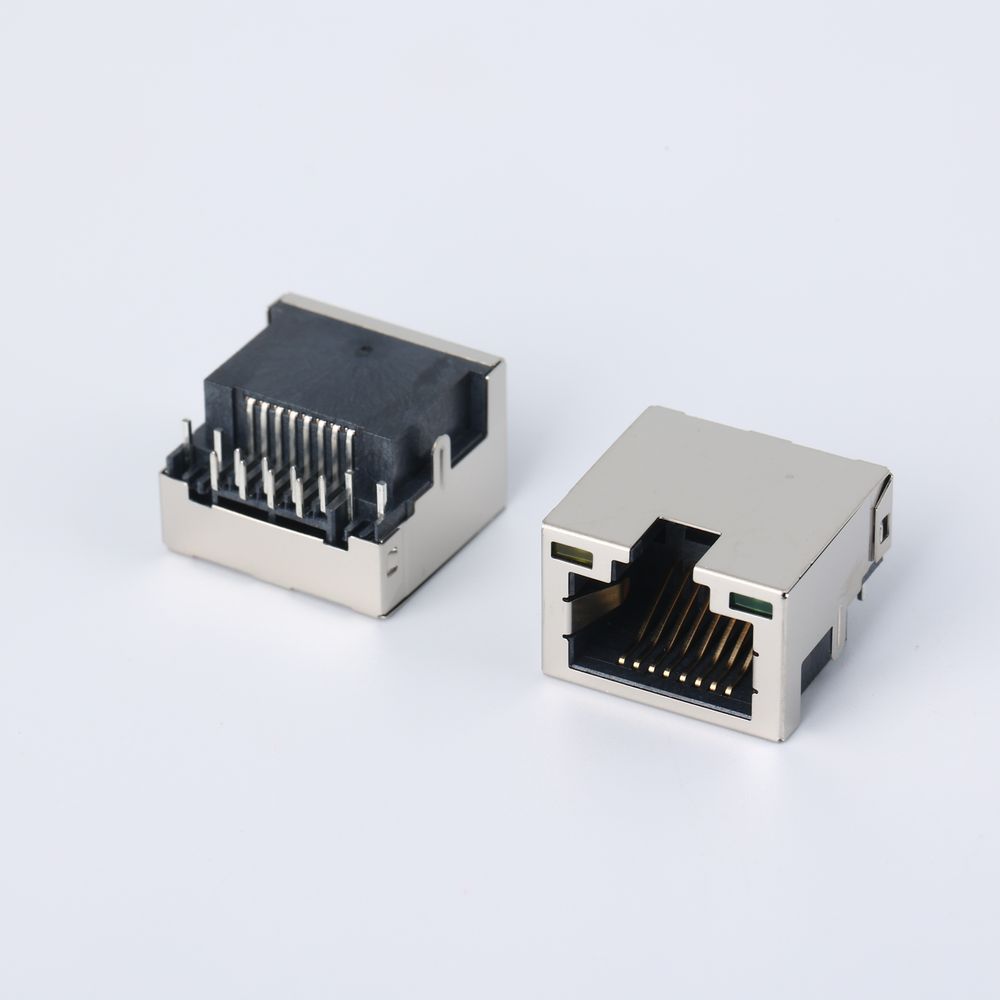

model numarası.: AAOE+5A29+201A RJ45 connector CH=-4.20mm 8P8C with LED
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Material description | |
| HOUSING: | LCP UL94V-0, BLACK |
| CONTACT: | PHOSPHOR BRONZE T=0.30mm, PLATING NI 30U'', SN 50U'' MIN, GOLD PLATING ON CONTACT AREA |
| SHIELD: | COPPER ALLOY T=0.20mm, NICKEL PLATING |
| ELECTRICAL: | |
| CURUENT RATING: | 1.5AMP |
| VOLTAGE RATING: | 125VAC RMS |
| CONTACT RESISTANCE: | 30mΩ MAX |
| INSULATION RESISTANCE: | 500mΩ MIN AT 500VDC |
| DIELECTRIC STRENGTH: | 1000VAC TO 500VAC RMS AT 0.5mA 50HZ TO 60HZ 1MINUTE |
| OPERATING LIFE: | 750 CYCLES MIN |
| MATING FPRCE: | 22N MAX |
| RETENTION STRENGTH: | 50N FOR 60S±5S |
| STORAGE TEMPERATURE: | -40℃~+85℃, HUMIDITY ＜80% |
| OPERATING TEMPERATURE: | -40℃~+85℃ |
