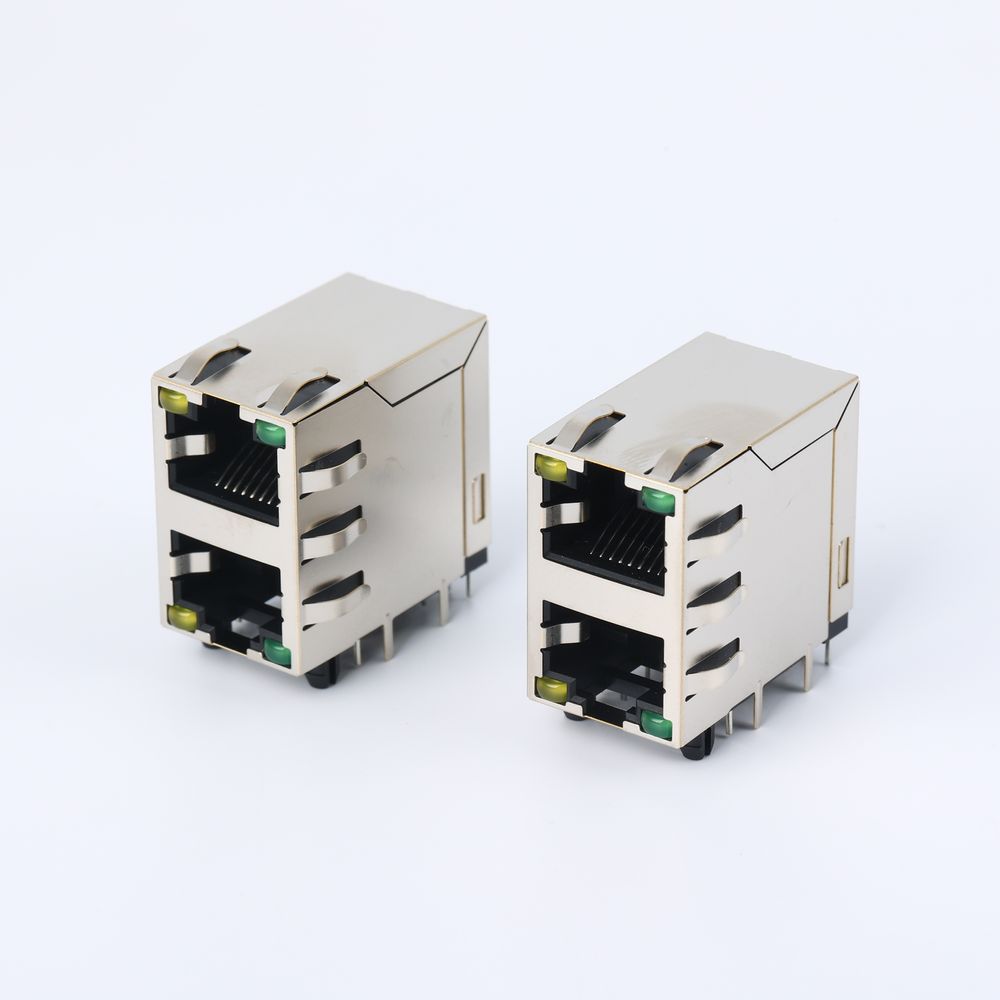

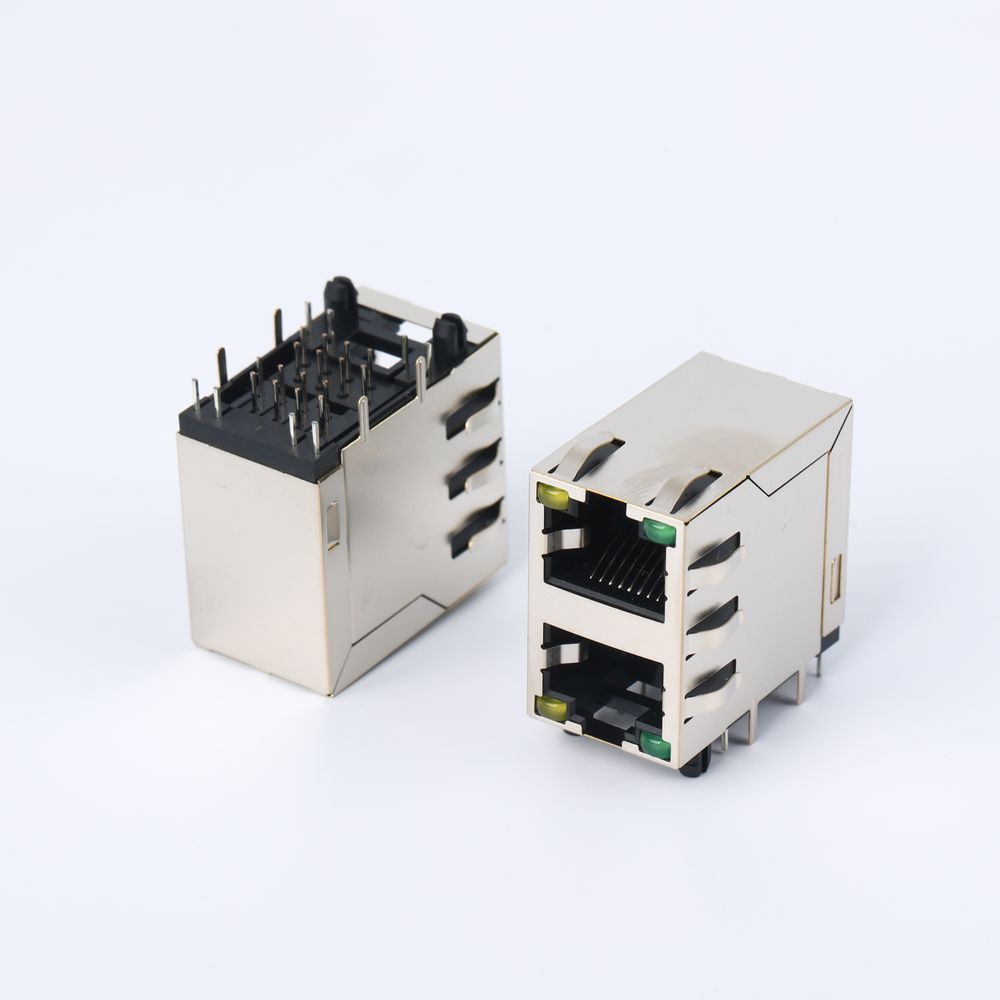

model numarası.: AAOE+5A28-156A 2*1 RJ45 connector with LED
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Material description | |
| HOUSING/INSERT: | PBT UL94V-0, BLACK |
| CONTACT: | PHOSPHOR BRONZE 0.46mm, GOLD PLATING OVER NICKEL |
| SHIELD: | COPPER ALLOY T=0.20mm, NICKEL PLATING |
| ELECTRICAL: | |
| CURUENT RATING: | 1.5AMP |
| VOLTAGE RATING: | 125VAC RMS |
| CONTACT RESISTANCE: | 30mΩ MAX |
| INSULATION RESISTANCE: | 500mΩ MIN AT 500VDC |
| DIELECTRIC STRENGTH: | 1000VAC RMS AT 50HZ 1MINUTE |
| OPERATING LIFE: | 750 CYCLES MIN |
| PCB RETENTION PRE-SOLDER: | 1 LB MIN |
| STORAGE TEMPERATURE: | -40℃~+85℃, HUMIDITY ＜80% |
| OPERATING TEMPERATURE: | 0℃~+70℃ |
