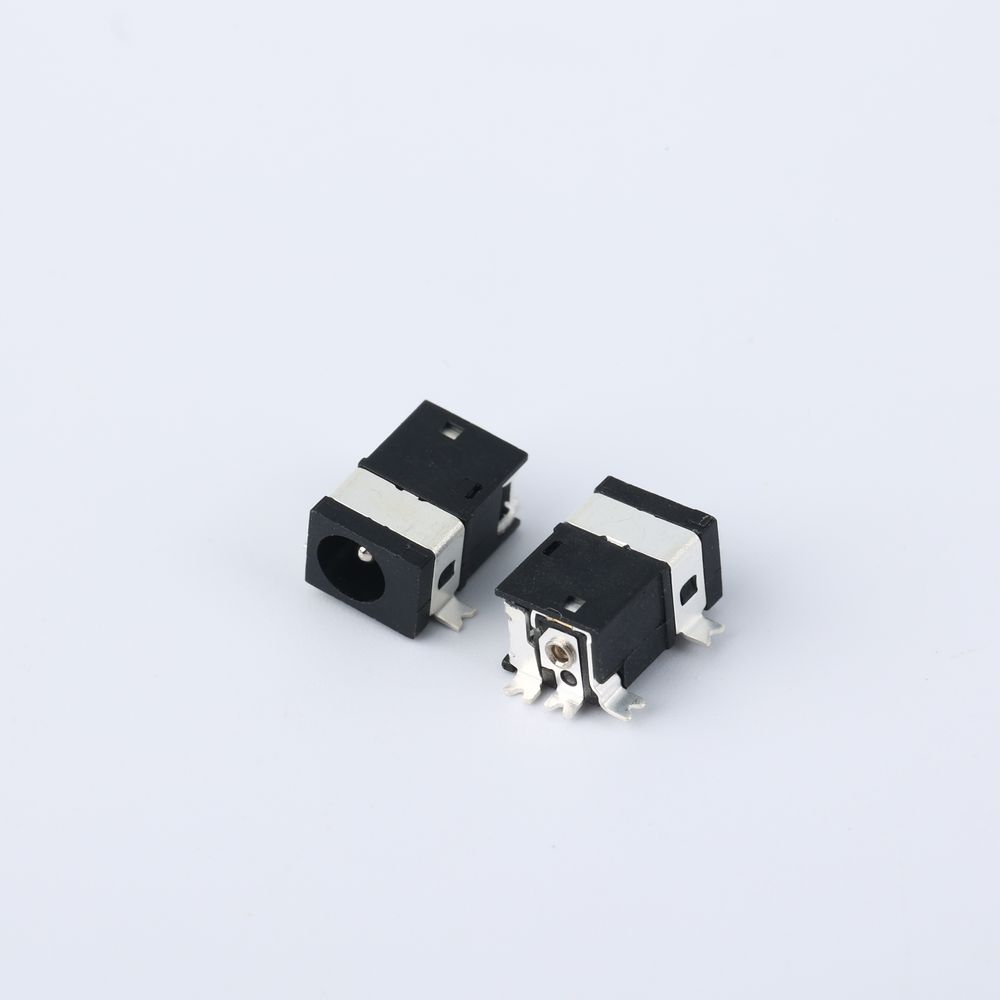

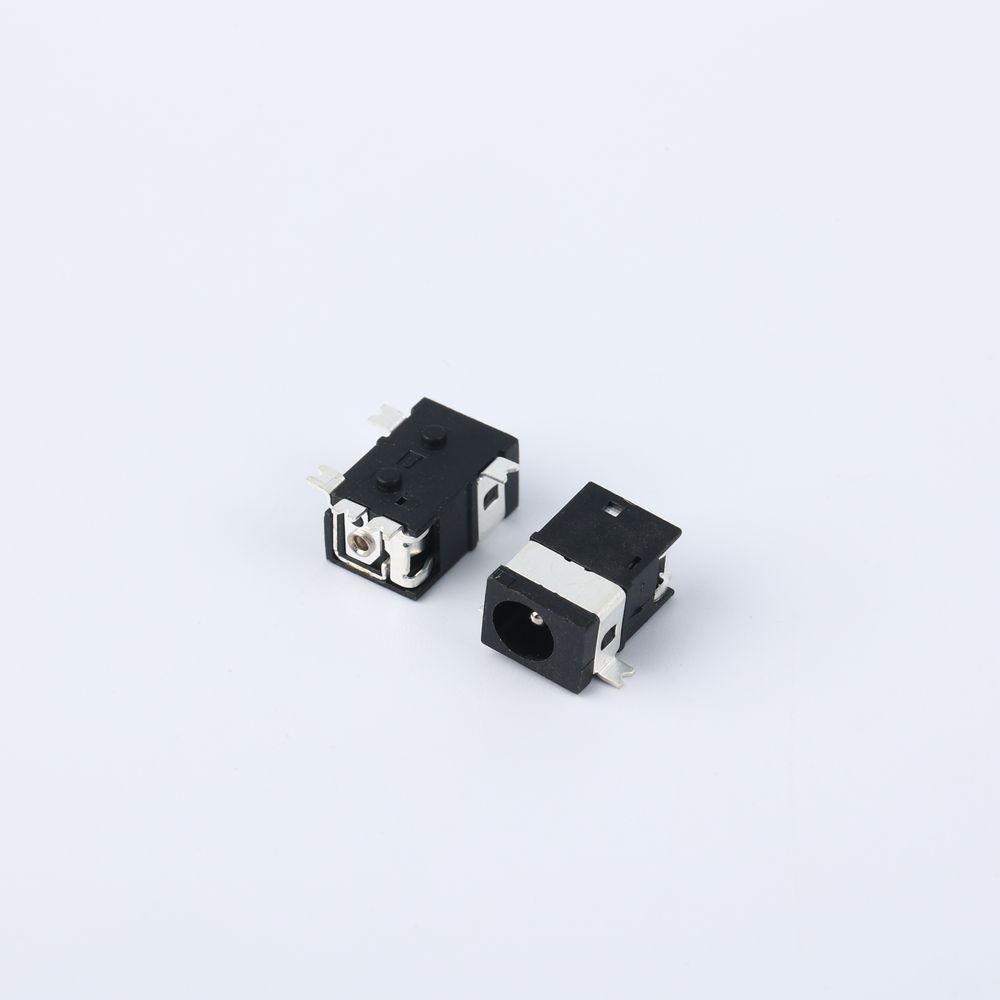

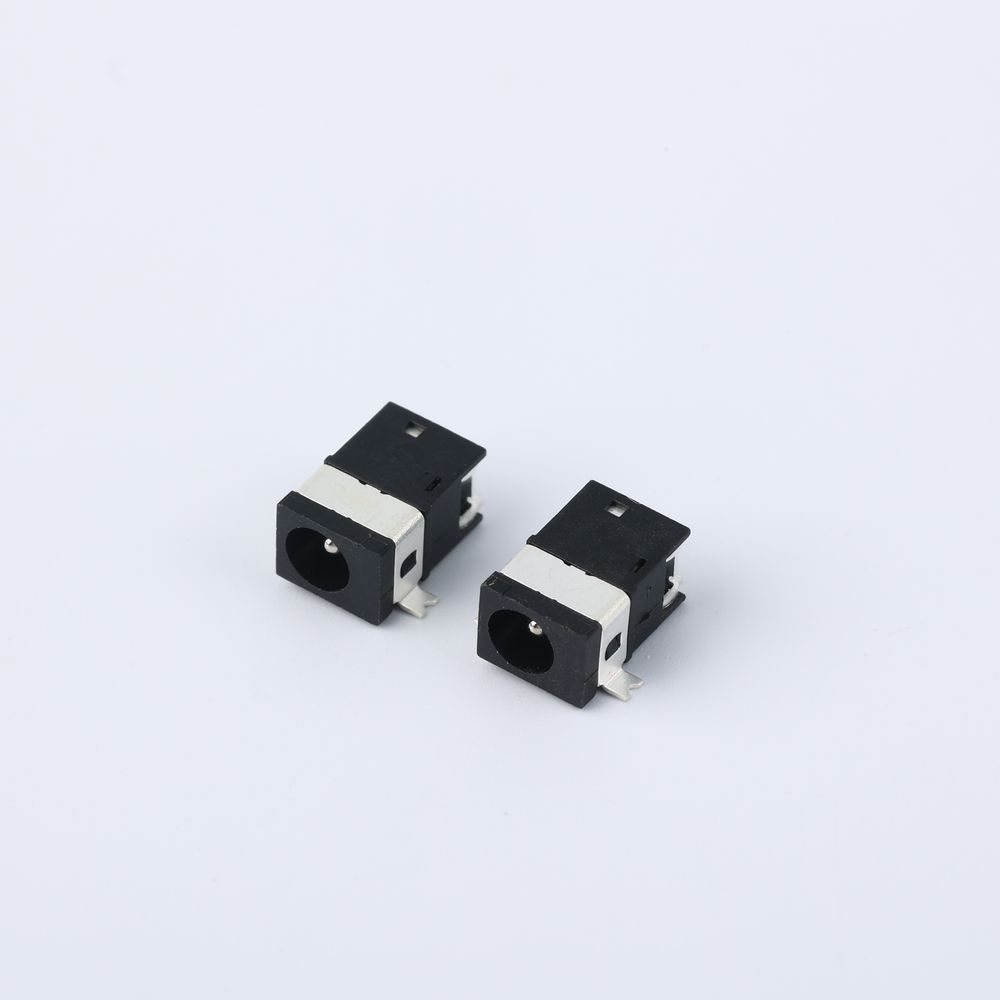

model numarası.: AAPJ+0512-13L6S DC power Jack φ=3.7mm PIN φ=1.3mm
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA9T BLACK |
| ENTER PIN: | BRASS 0.3mm, SN PLATED |
| TERMINAL 1#: | BRASS T=0.25mm, AG PLATED |
| TERMINAL 2#: | STAINLESS STELL PLATE T=0.3mm, AG PLATED |
| TERMINAL 3#: | BRASS T=0.25mm, AG PLATED |
| TERMINAL 4#: | BRASS T=0.25mm, AG PLATED |
| ELECTRICAL CHARACTERISTICS: | |
| RATING CURRENT: | 24V 1A |
| CONTCAT RESISTANCE: | 30mΩ MAX (INITIAL) |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR ONE MINUTE |
| INSULATON RESISTANCE: | 100mΩ MIN MEASURED BY 500 V DC |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 0.3~3.0 KGF |
| WITHDRAWAL FORCE: | 0.3~3.0 KGF |
| LIFE TEST: | 5000 CYCLES MIN |
|
FOR REFLOE SOLDERING LEAD-FREE PROCESS
|
|
