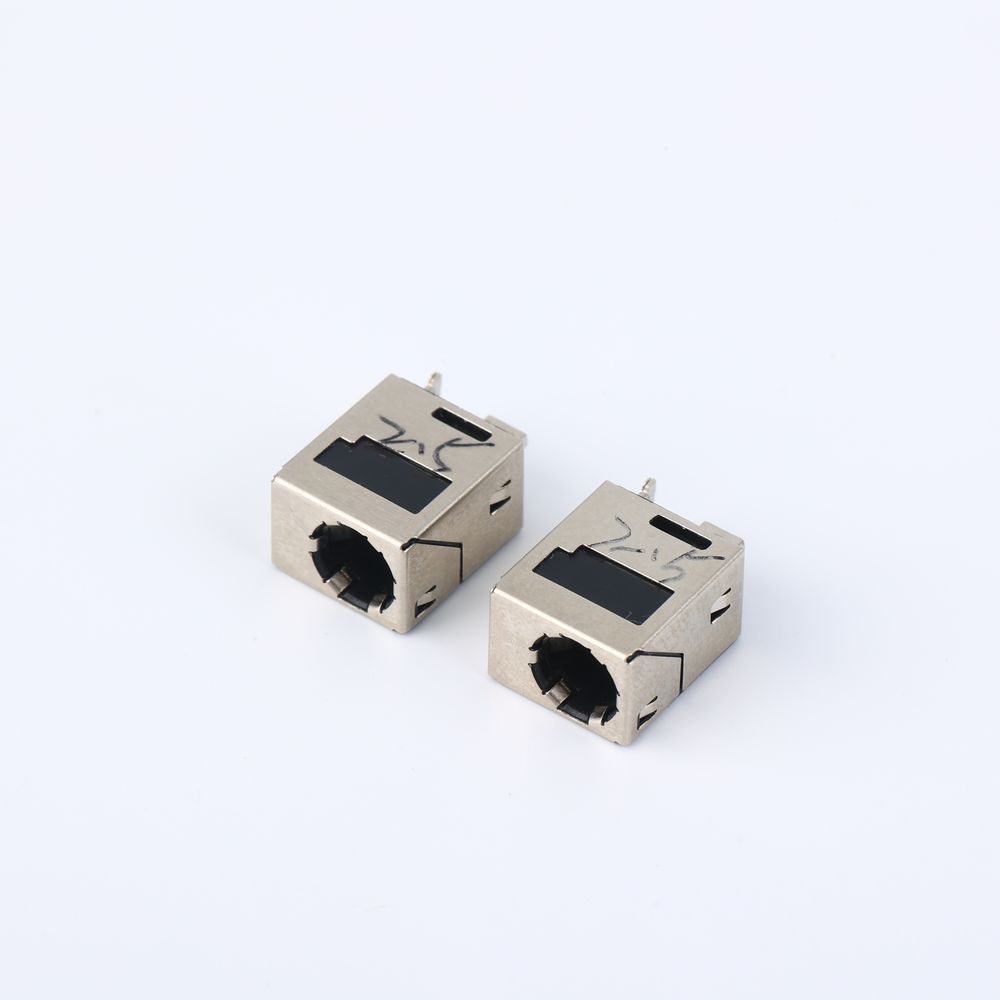

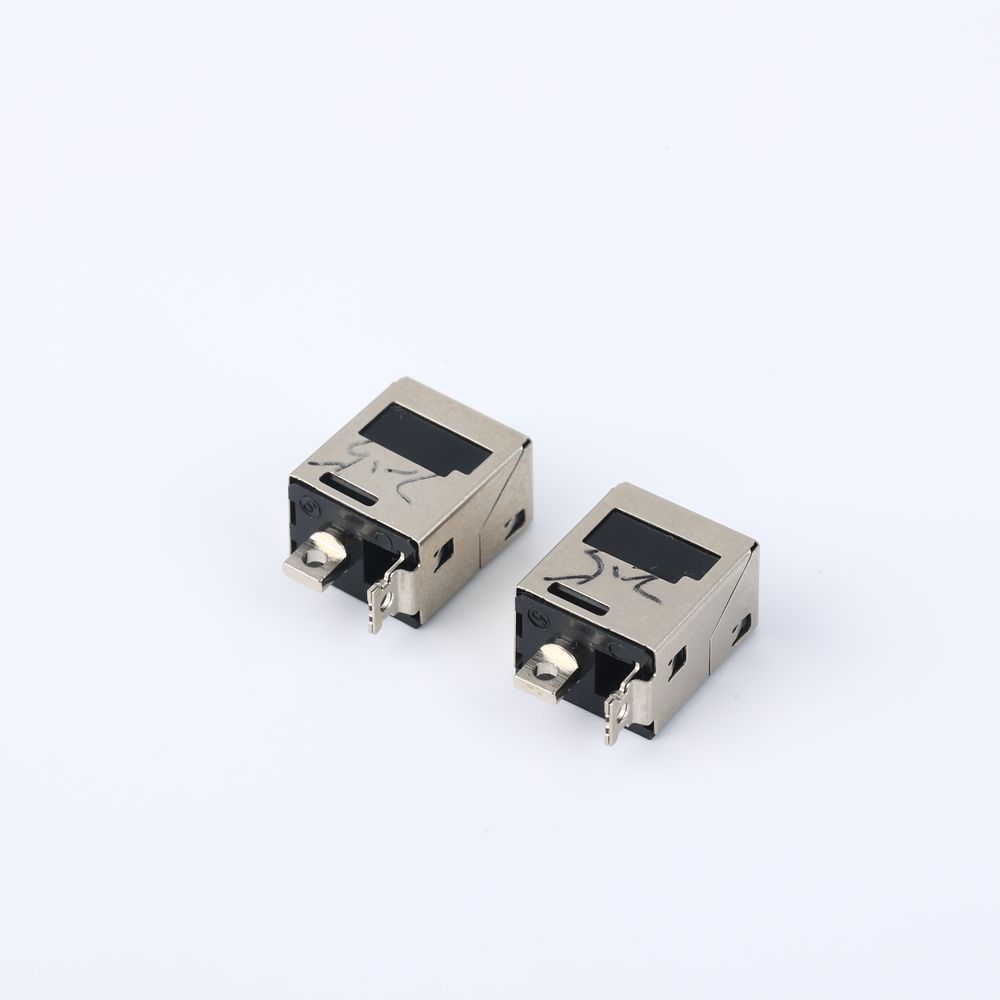

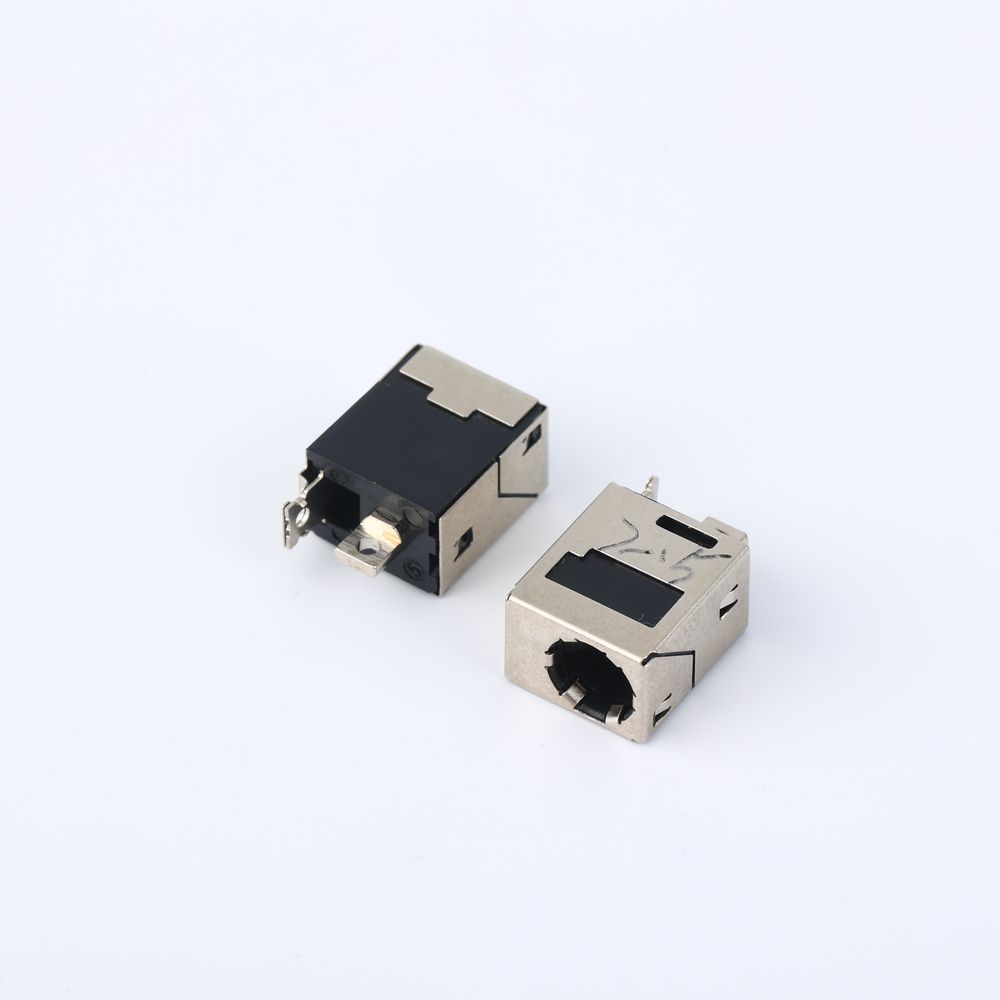

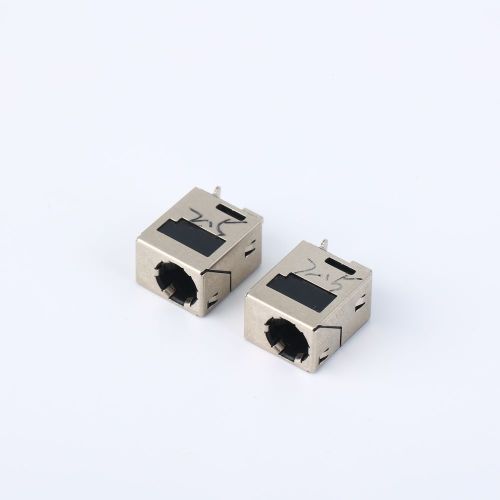

model numarası.: APJ+6D11+07 DC power Jack 2PIN 2.5
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PBT UL94-0, BLACK |
| PIN: | BRASS, 30U'' NI PLATED |
| TERMINAL: | C5191 T=0.3mm, 80U'' MIN NI PLATED |
| SHELL: | SUS T=0.15mm, 30U'' NI PLATED |
| ELECTRICAL CHARACTERISTICS: | |
| RATING CURRENT: | 20V 7A |
| CONTCAT RESISTANCE: | 30mΩ MAX |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| INSULATON RESISTANCE: | 100mΩ MIN AT 500V DC AFTER 1 MINUTE |
| INSERTION FORCE : | 3.0KGF MAX |
| WITHDRAWAL FORCE: | 0.35 KGF MIN |
| LIFE TEST: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE RANGE: | -40~85℃ |
