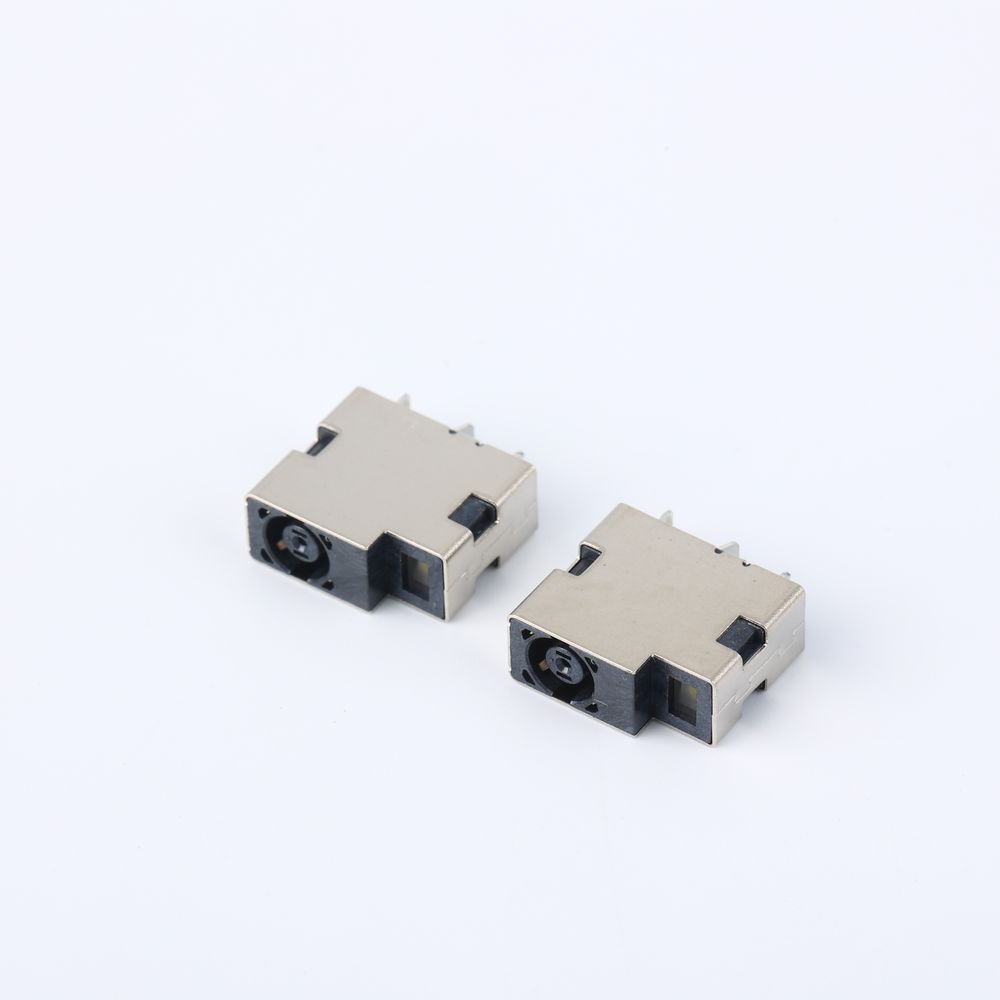

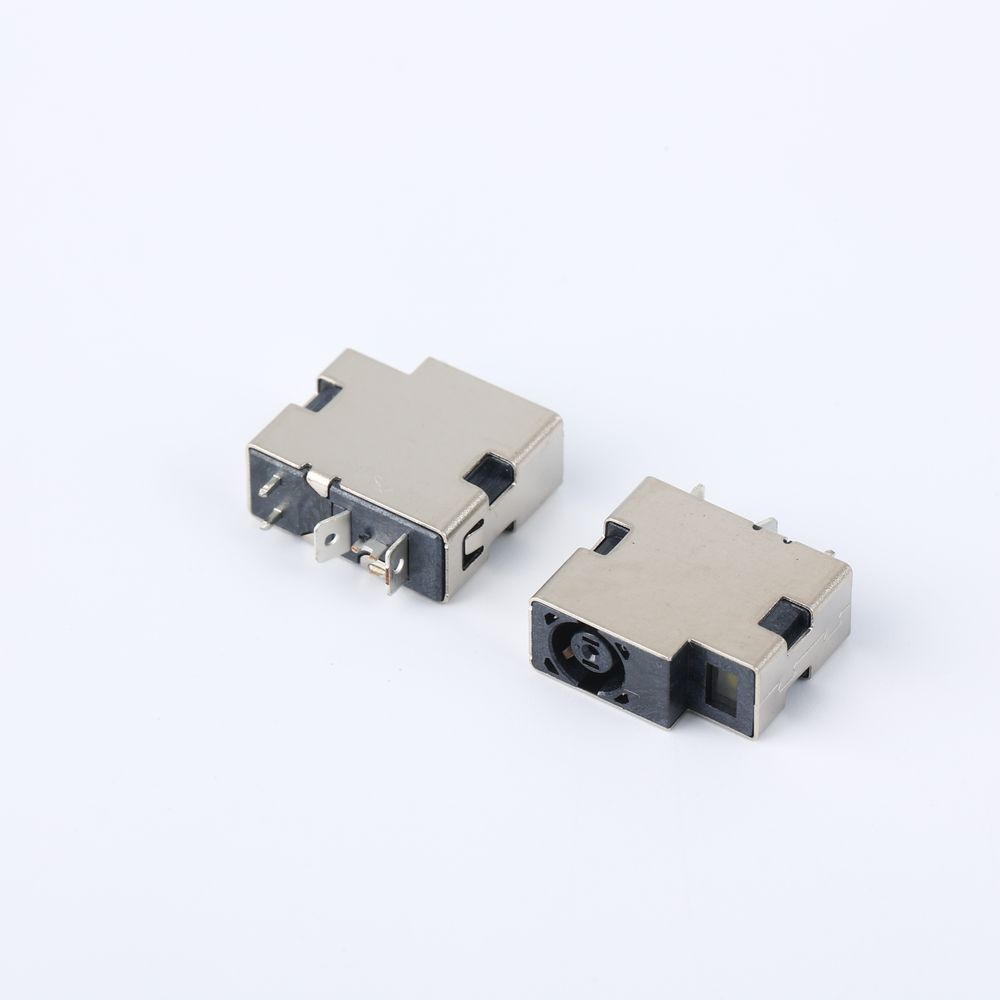

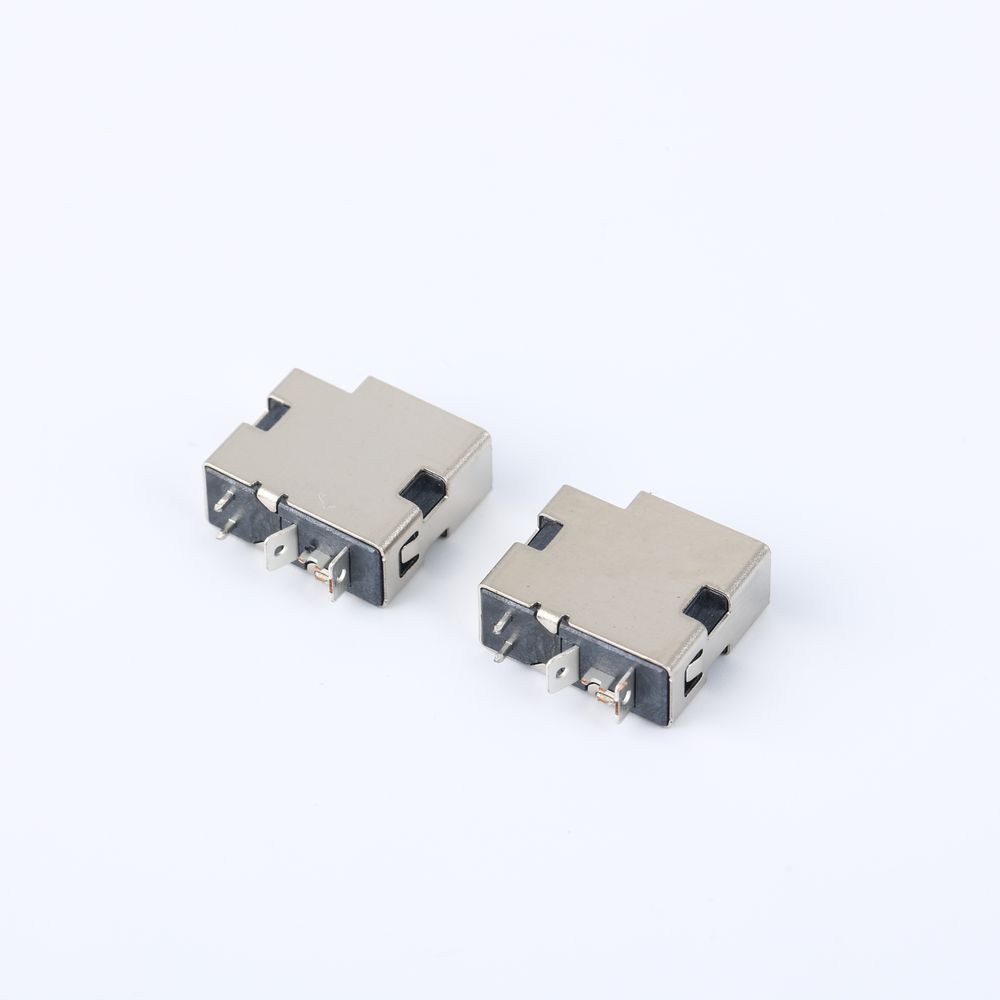

model numarası.: APJ+10U7+0101 DC Jack with LED H=12.5
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP BLACK |
| TERMINAL: | C5210R-EH/C7025 |
| ELECTRICAL CHARACTERISTICS: | |
| RATING CURRENT: | 1.5A |
| CONTCAT RESISTANCE: | 30mΩ MAX |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC |
| INSULATON RESISTANCE: | 50 MEGHOMS MAX |
| BREAKING FORCE OF THE CENTER COLUMN OF THE FINISHED PRODUCT: >15KGF | |
| TERMINAL CLAMPING FORCE: | 0.2kg PER PIN |
| INSERTION FORCE : | 2.5KGF MAX |
| PULL-OUT FORCE: | 1.0kgf~2.0kgf (AFTER 1000 ATTEMPTS) |
| PULL-OUT FORCE: | 0.6kgf~2.0kgf (AFTER 5000 ATTEMPTS) |
