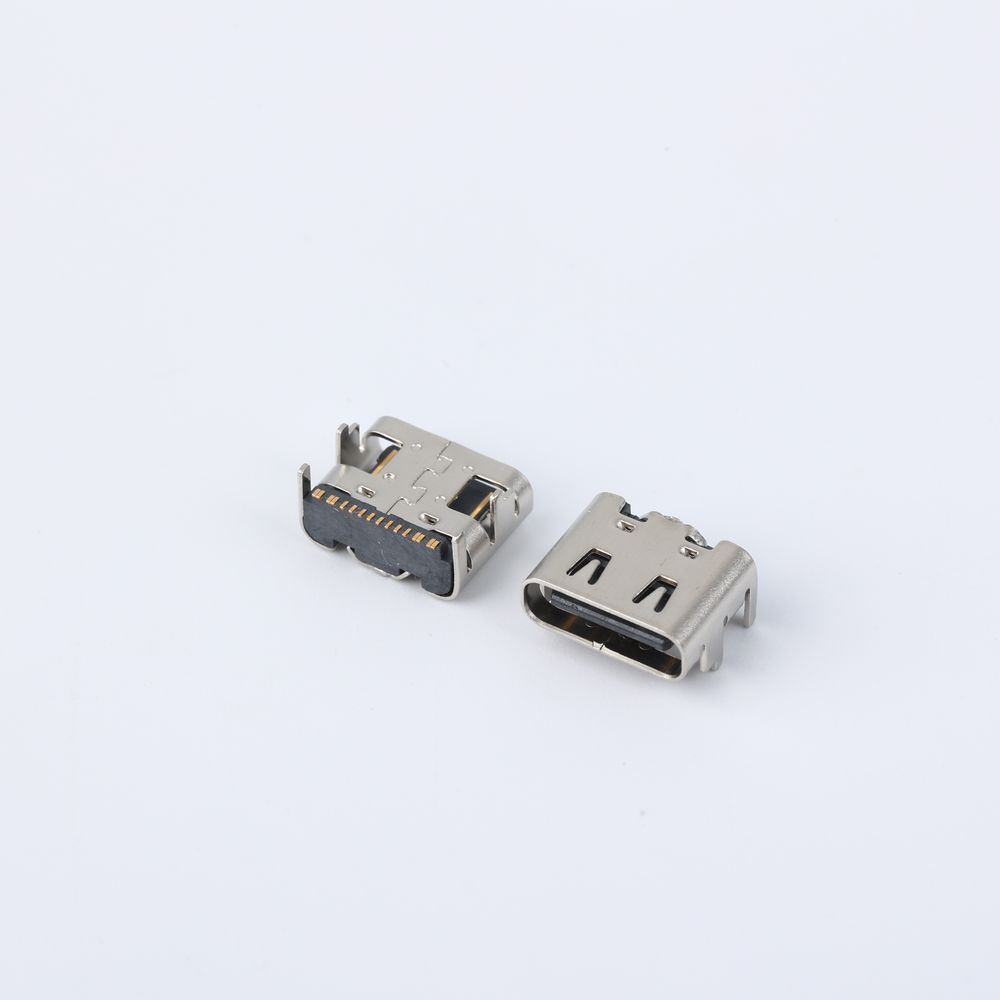

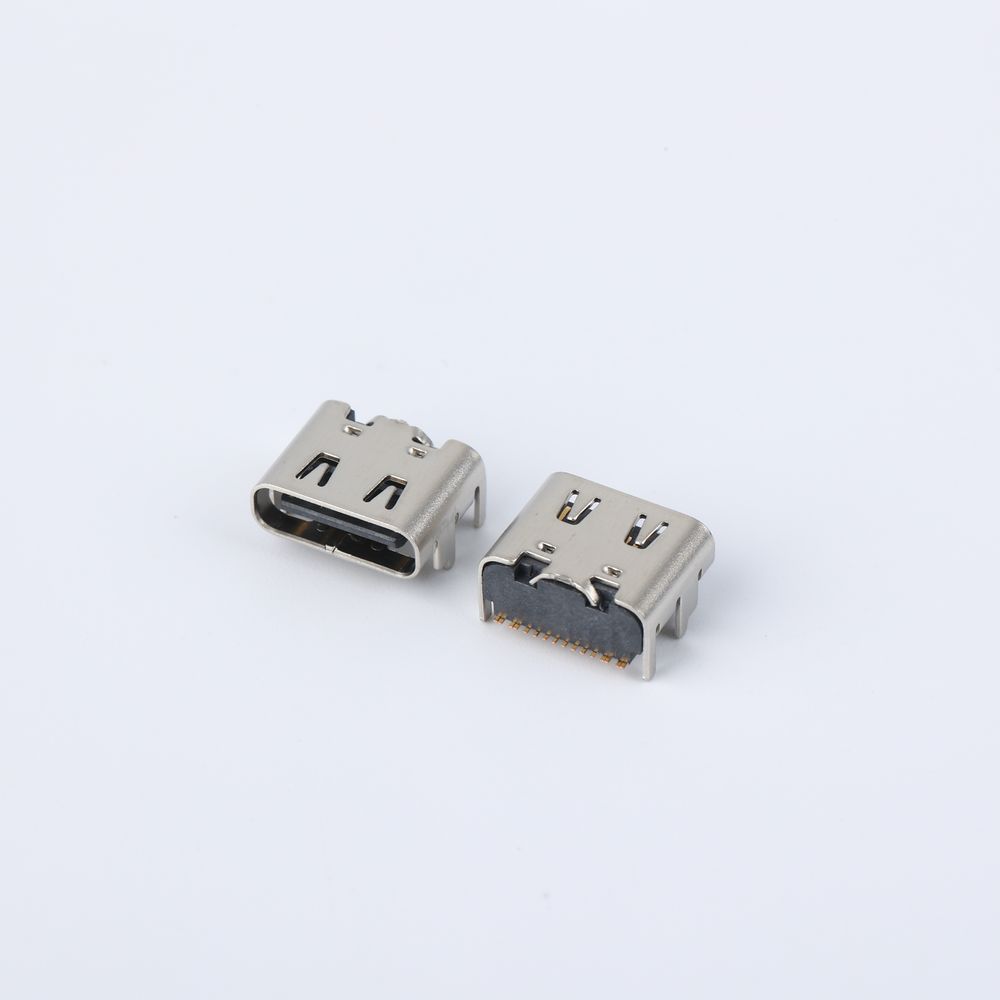

model numarası.: AAUS+ACFB1+301B0 Type-C 16PIN L=6.8mm HF
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MOLDING: | LCP UL94 V-0 BLACK |
| CONTACT: | COPPER ALLOY (C2680) |
| Ni 30u” MIN UNDER PLATED OVER ALL | |
| Au PLATED ON THE TUNCTIONAL AREA OF CONTACT | |
| Au PLATED ON SOLDER AREA OF CONTACT | |
| MID PLATE: | STAINLESS STEEL(SUS301), CLEAR ONLY |
| FRONT SHEEL: | STAINLESS STEEL(SUS301), Ni 30u” MIN UNDER PLATED OVER ALL |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
| ELECTRICAL: | |
| CURRENT: | 5A |
| VOLTAGE: | 5V |
| INSULATON RESISTANCE: | 100m MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| TEMPERATURE RANGE: | -25℃ ~ +85℃ |
