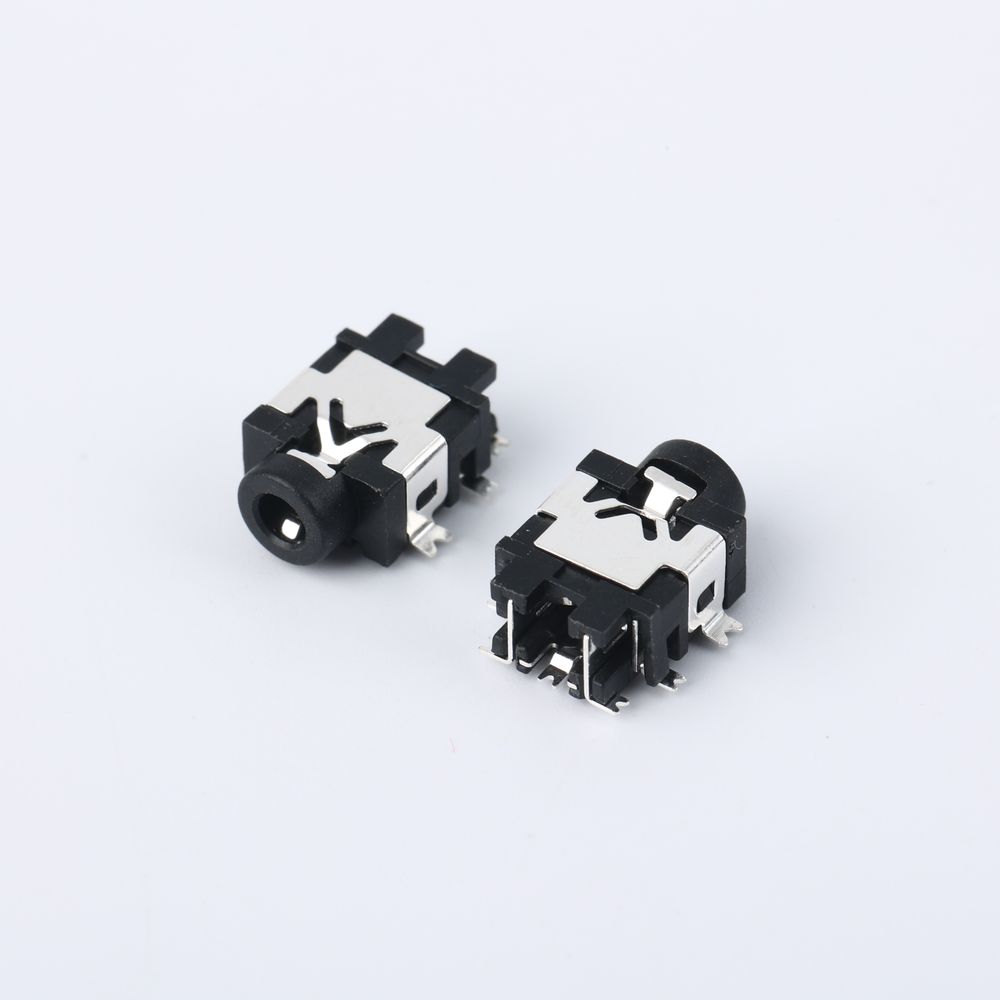

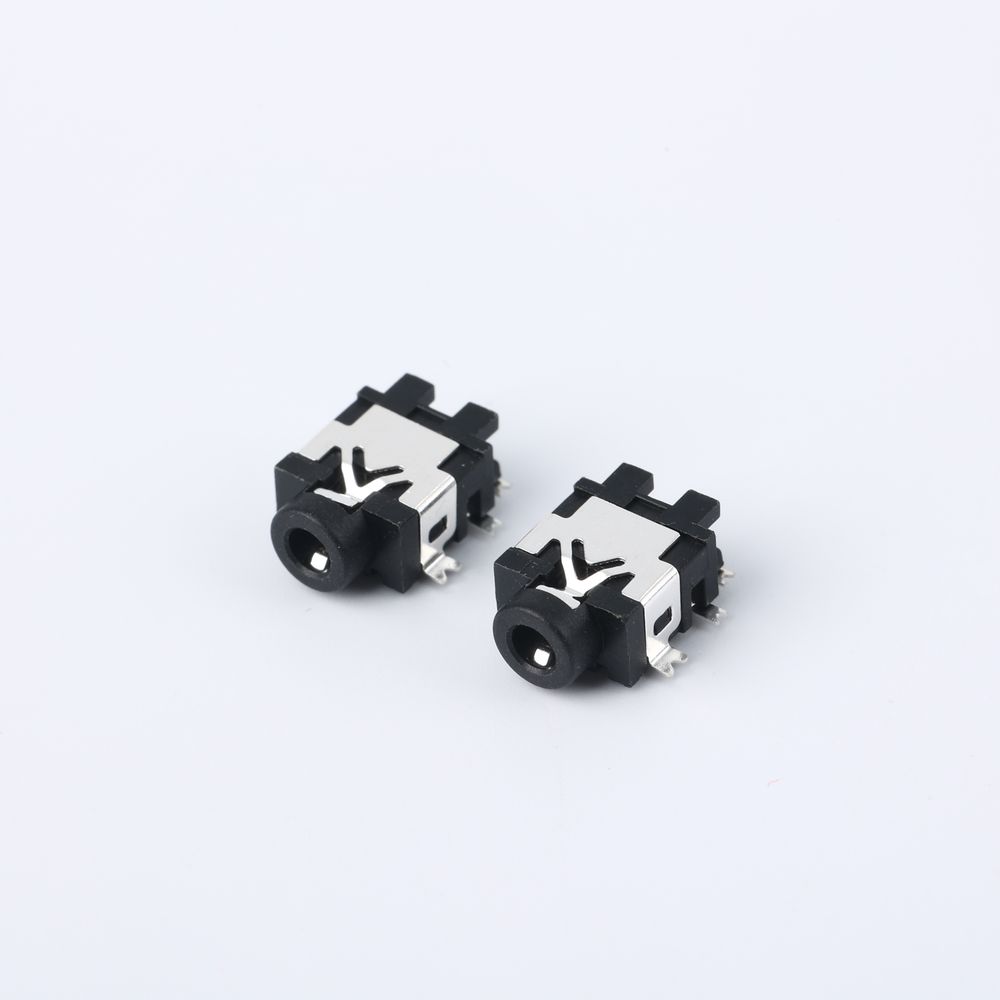

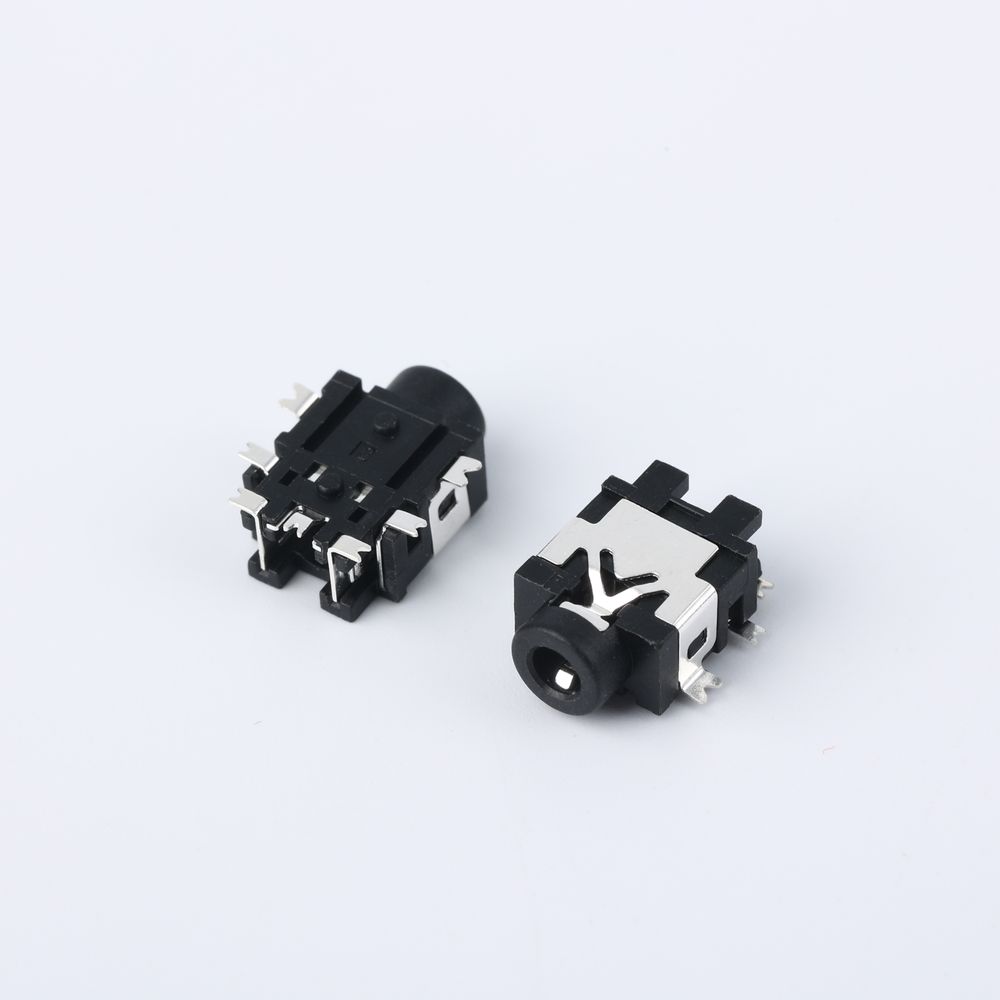

model numarası.: AAPJ+2516-0921 ∅2.5mm phone jack SMT
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA BLACK |
| TERMINAL: | BRASS T=0.25, AG PLATED |
| TERMINAL: | BRASS T=0.25, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.25, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.25, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.25, AG PLATED |
| TERMINAL: | PHOSPHOR BRONZE T=0.25, AG PLATED |
| CURUENT RATING: | 1AMP |
| VOLTAGE RATING: | 12VAC RMS |
| CONTACT RESISTANCE: | 50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST |
| INSULATION RESISTANCE: | 100mΩ MIN, 500V DC INITIAL, 50mΩ MIN, 500VDC AFTER HUMIDITY TEST |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC RMS 50(60) HZ 1 MINUTE |
| INSERTION FORCE : | 0.3~3.0kgf |
| WITHDRAWAL FRCE : | 0.3~3.0kgf |
| OPERATING LIFE: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE: | -30℃~+80℃ |
