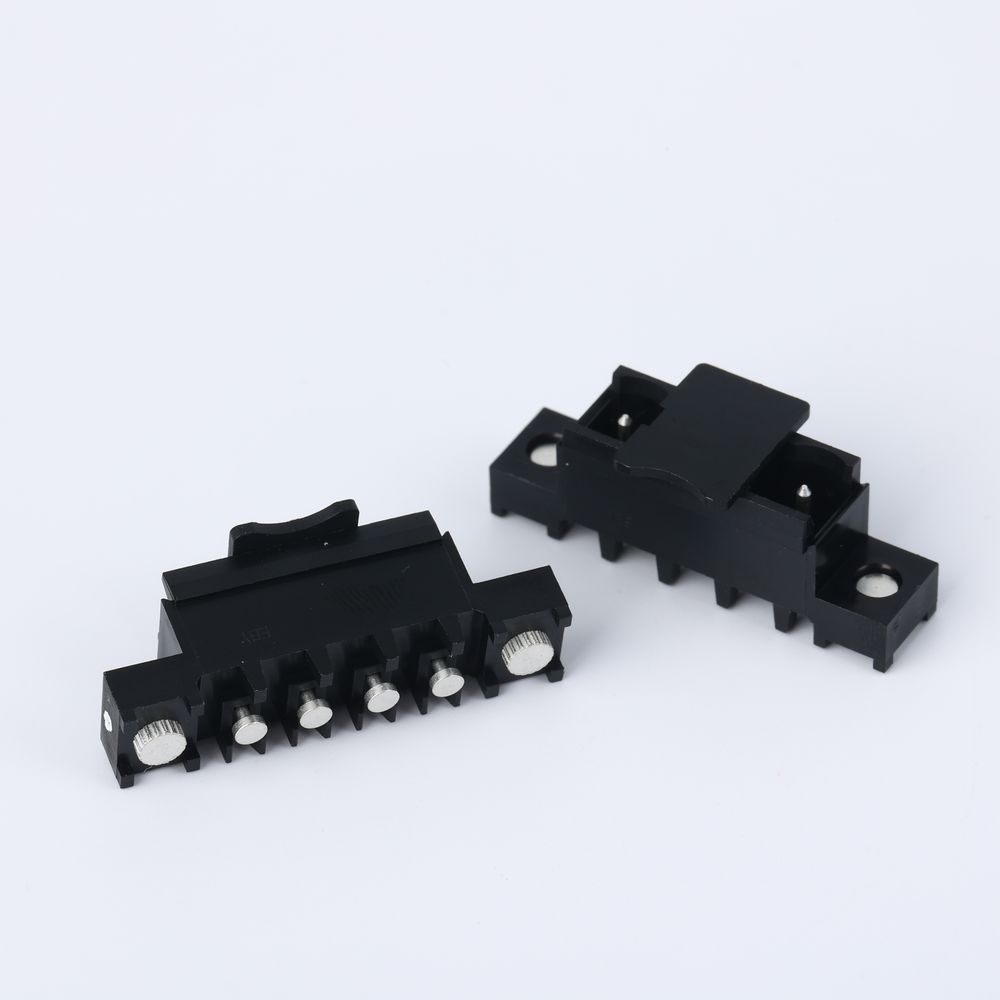

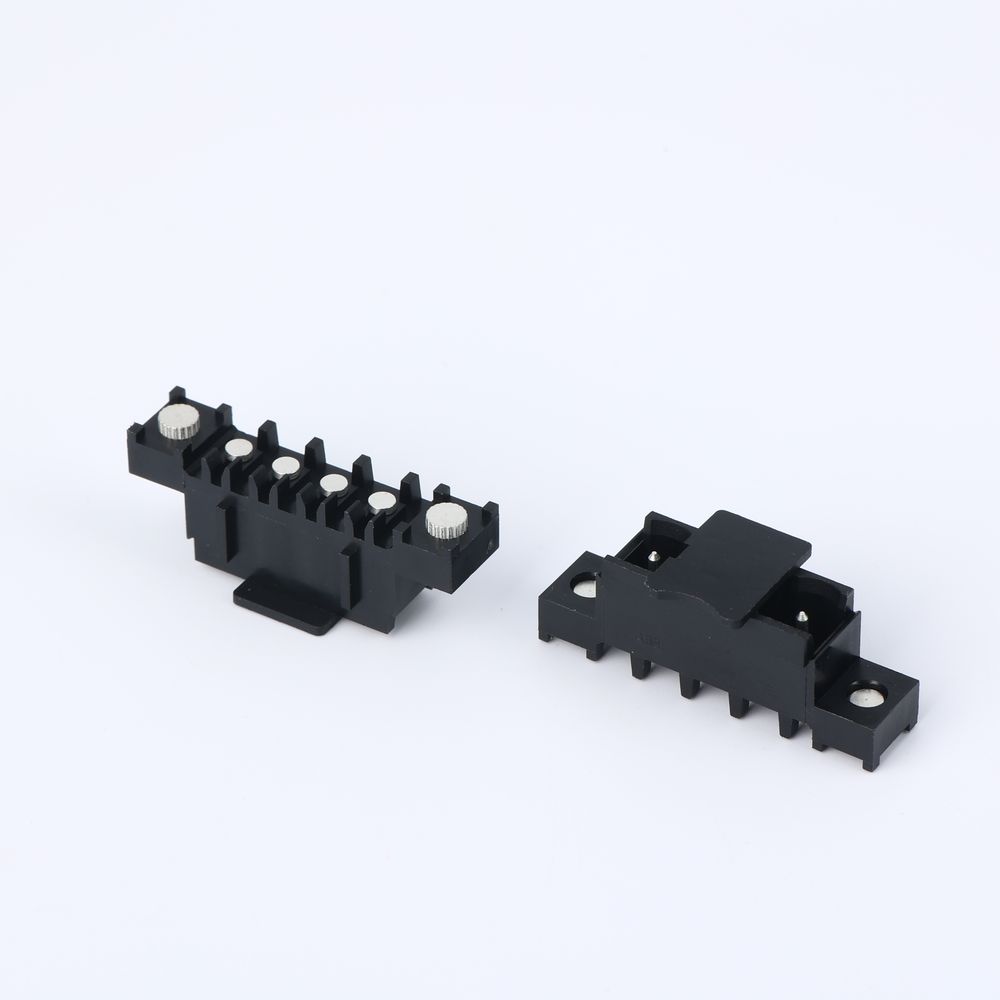

model numarası.: AAOE+120M+227 Battery PIN STIRP 120-M-227
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MATERIAL: | |
| HOUSING/CAP: | PA9T+30%GF,UL94V-0,BLACK; |
| TERMINAL PIN: | COPPER ALLOY; |
| SCREW PIN: | COPPER ALLOY; |
| PLATING SPECIFICATION: | IFICATION: |
| TERMINAL/SCREW PIN: | MATTE TIN 120u" MIN. PLATING OVERALL,50u" MIN. NICKEL UNDERPLATED OVERALL. |
| ELECTRICAL PERFORMANCE | |
| Rated Voltage: | 160V |
| Rated Current: | 12A Max. |
| Temperature Range: | -40℃ up to 105℃; |
| Reflow Solder Temperature (Peak) max. 250℃ (15-30 s) | |
