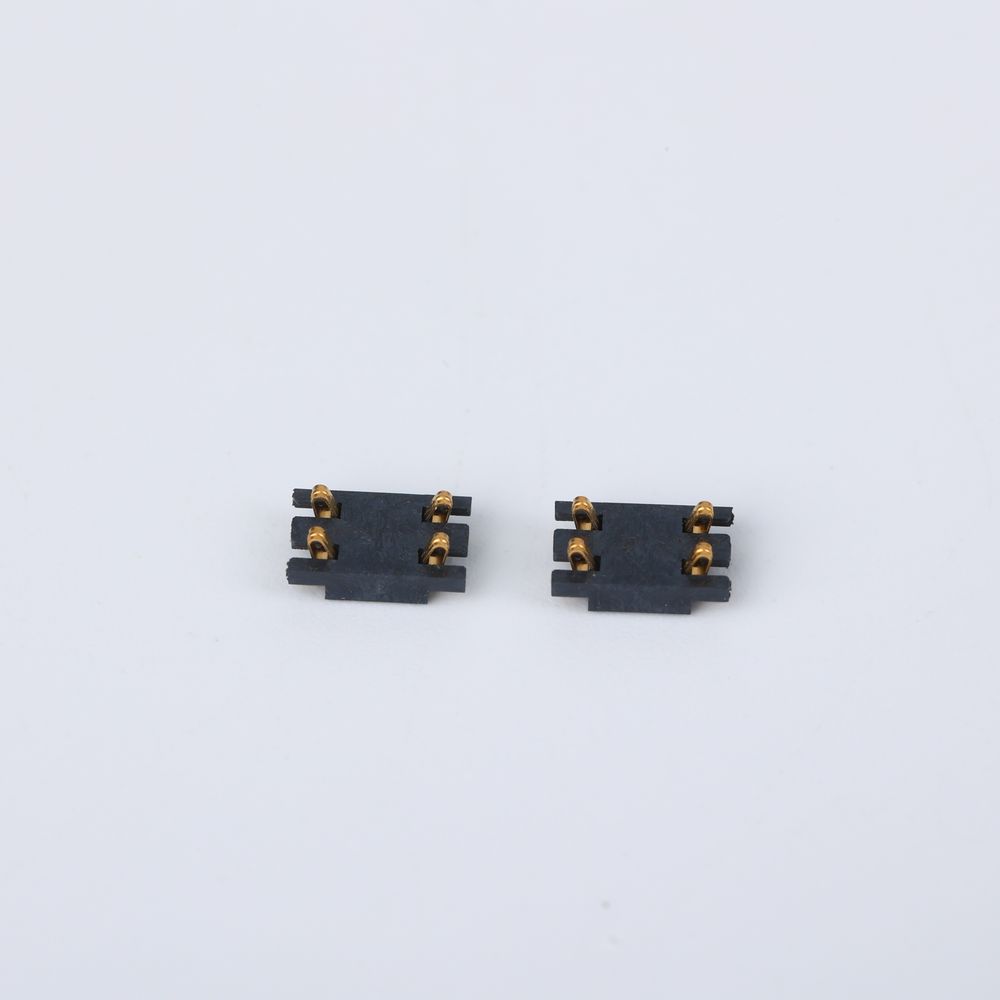

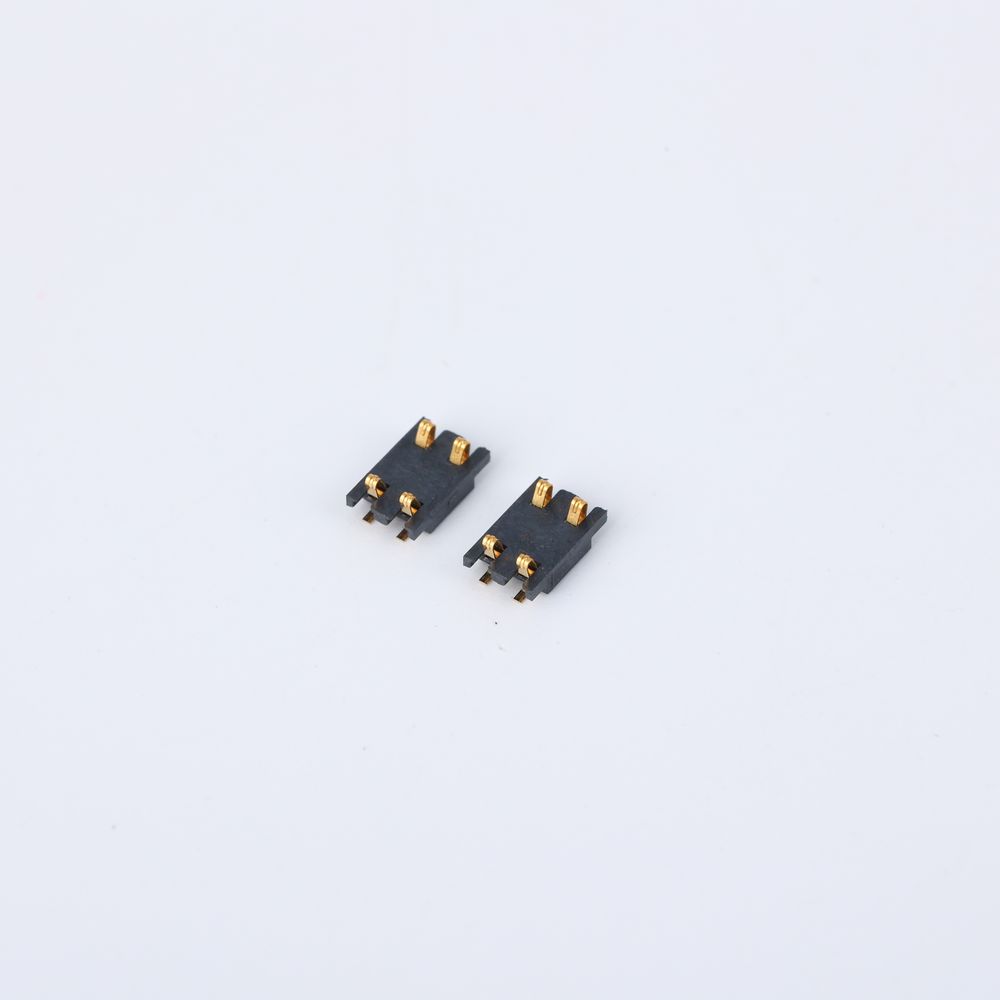

model numarası.: AABT+BC16+4P205 1.6 PITCH BATTERY connector
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Material | |
| Insulator: | LCP(UL94V-0) BLACK |
| Contact: | Phosphor Bronze |
| Contact Plated: | Gold over Nickel or Tin |
| Specificaton | |
| Current Rating: | 1A |
| Voltage Rating: | 12V |
| Contact Resistance: | 30mΩ |
| Insulation Resistance: | 500MΩ |
| Dielectric Voltage: | 500V |
| Operating Temperature: | -40℃~85℃ |
| Electrical Life: | 5000cycles |
