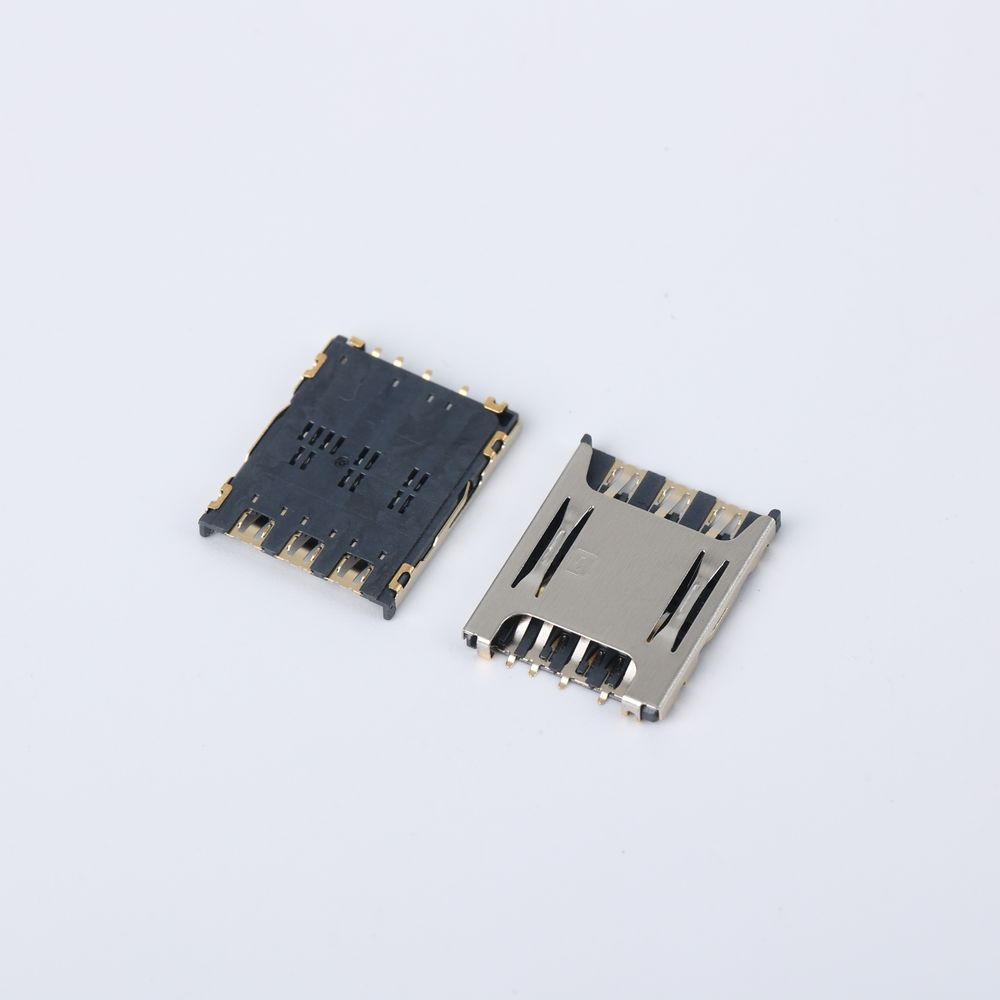

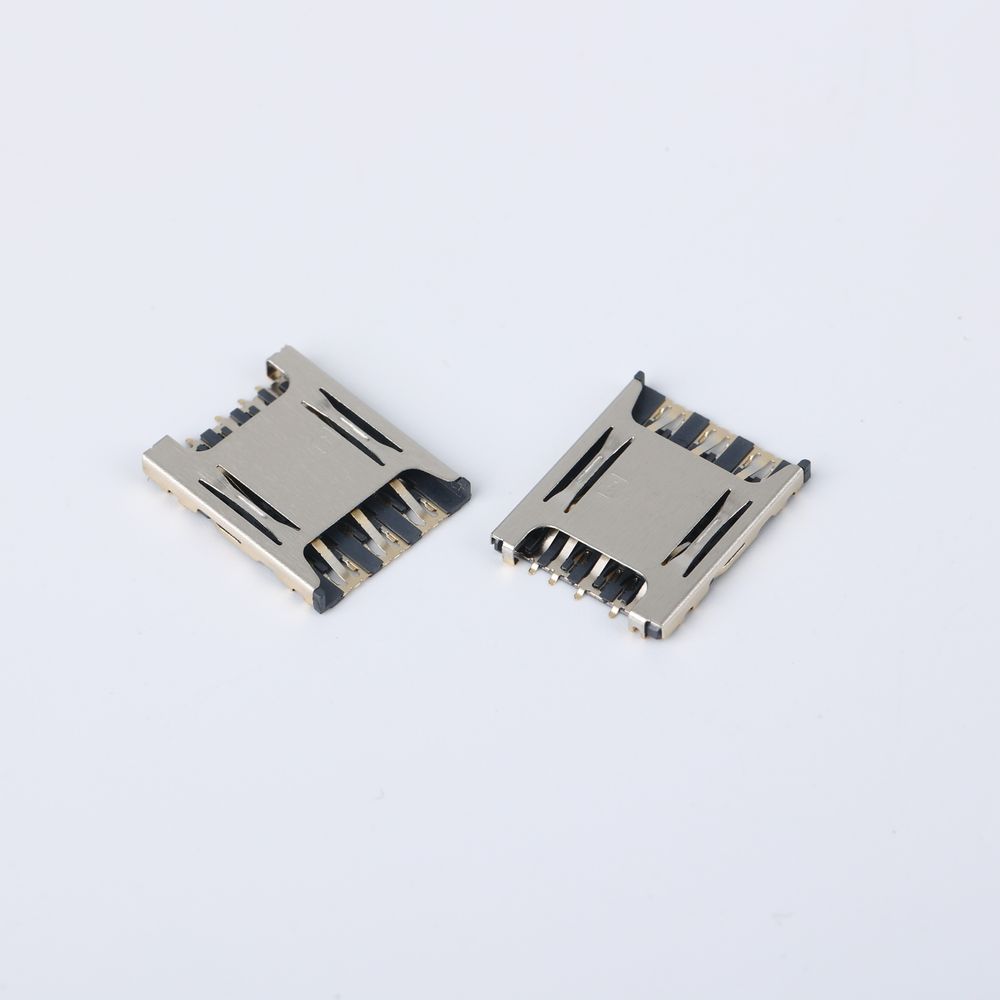

model numarası.: AAOE+40201+3372 7PIN SIM card conncetor
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| SHELL: | SUS 304, NI PLATED, G/F PLATED ON SOLDER AREA |
| BASE INSULATOR: | LCP+GF30% BLACK |
| TERMINAL: | C5210, AU 1U'' PLATING |
| CURUENT RATING: | 0.5A MAX |
| VOLTAGE RATING: | 30V AC |
| CONTACT RESISTANCE: | 100mΩ MAX |
| INSULATION RESISTANCE: | 1000mΩ MIN 500V DC |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| INSERTION FORCE : | 10N MAX |
| WITHDRAWAL FRCE: | 0.5N MIN |
| OPERATING LIFE: | 5000 CYCLES MIN |
| OPERATING TEMPERATURE: | -40℃~+85℃, HUMIDITY 80% R.H MAX |
| COPLANARITY: | BEFORE IR 0.08mm MAX, AFTER IR 0.1mm MAX |
