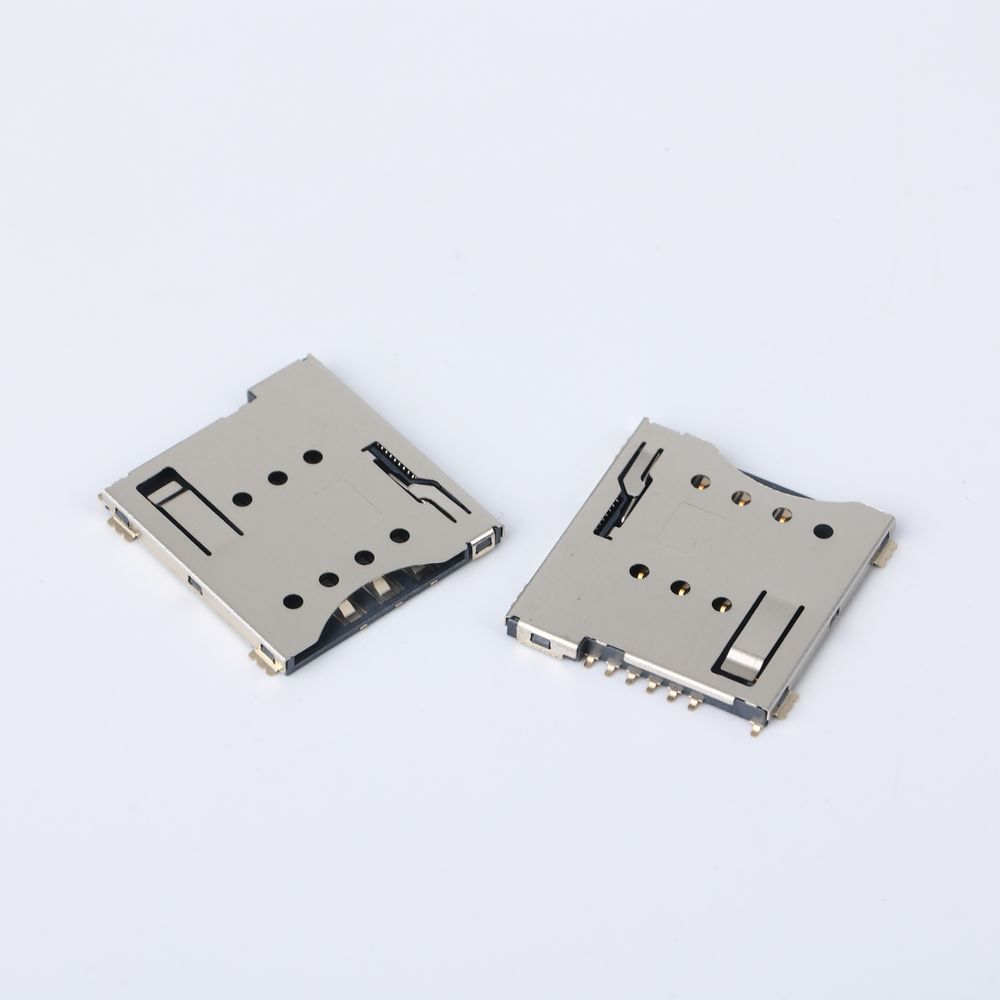

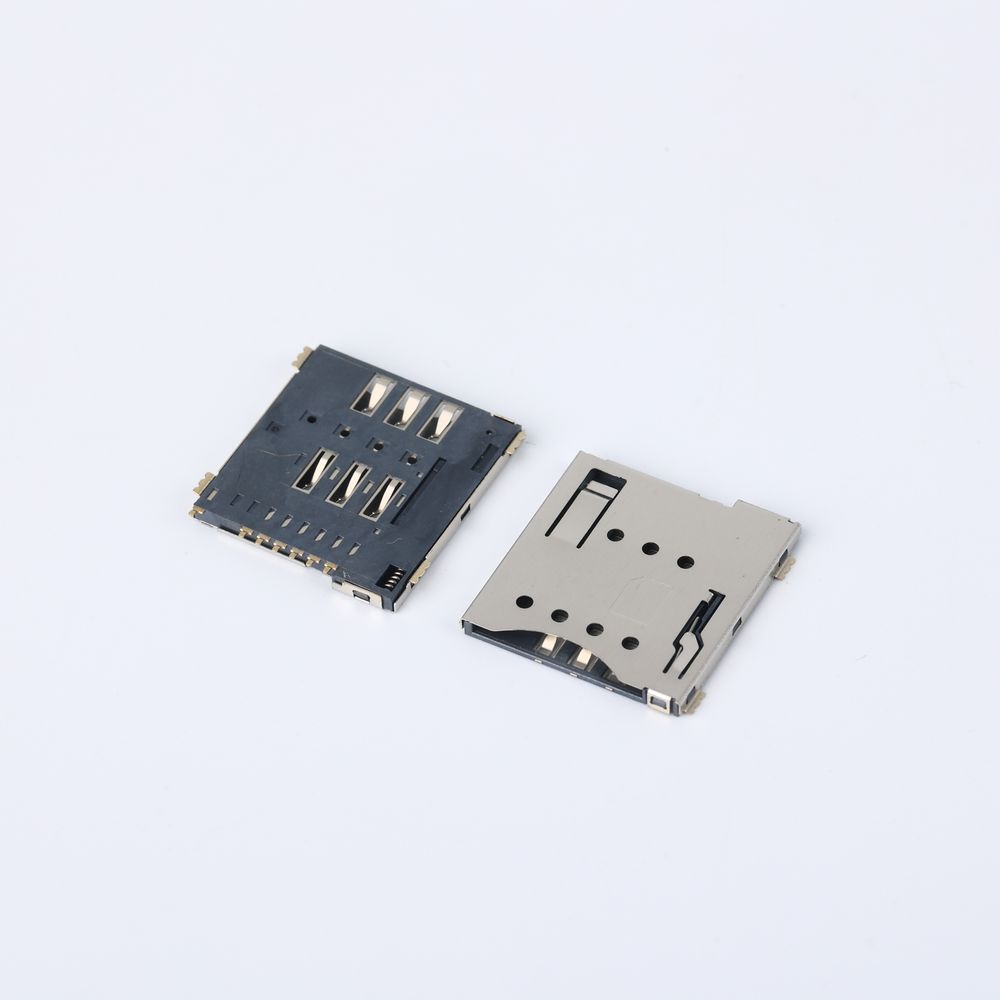

model numarası.: AAOE+10201+1342 push-push micro SD connector
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMPERATURE THERMOPLASTIC |
| CONTACT: | COPPER ALLOY, 50U'' NICKEL UNDERPLATED OVERALL, G/F PLATED ON CONTACT AREA AND SOLDER AREA |
| SHELL: | STAINLESS STEEL, 30U'' NI UNDERPLATED OVERALL, G/F PLATED ON CONTACT AREA AND SOLDER AREA |
| CURUENT RATING: | 0.5A |
| VOLTAGE RATING: | 30V |
| CONTACT RESISTANCE: | 100mΩ MAX |
| INSULATION RESISTANCE: | 1000mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR 1 MINUTE |
| OPERATING TEMPERATURE: | -40℃~+85℃, HUMIDITY 80% R.H MAX |
