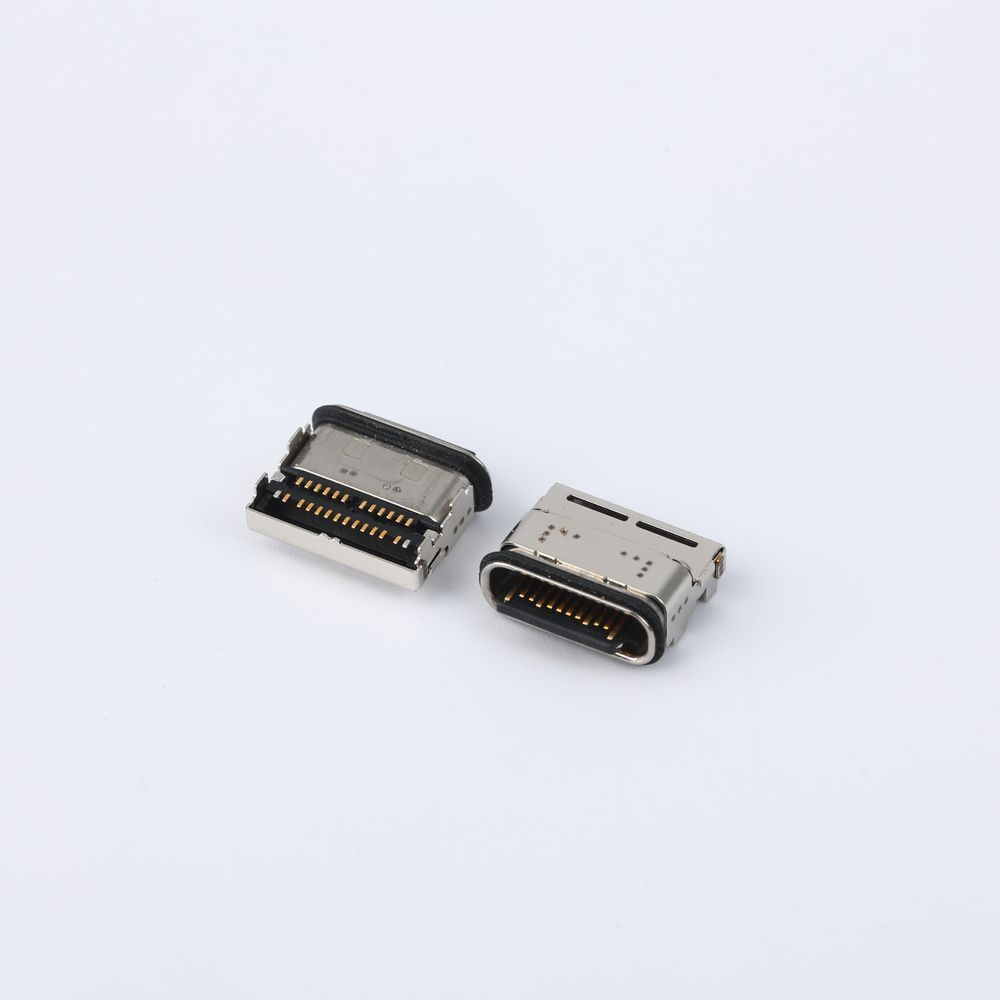

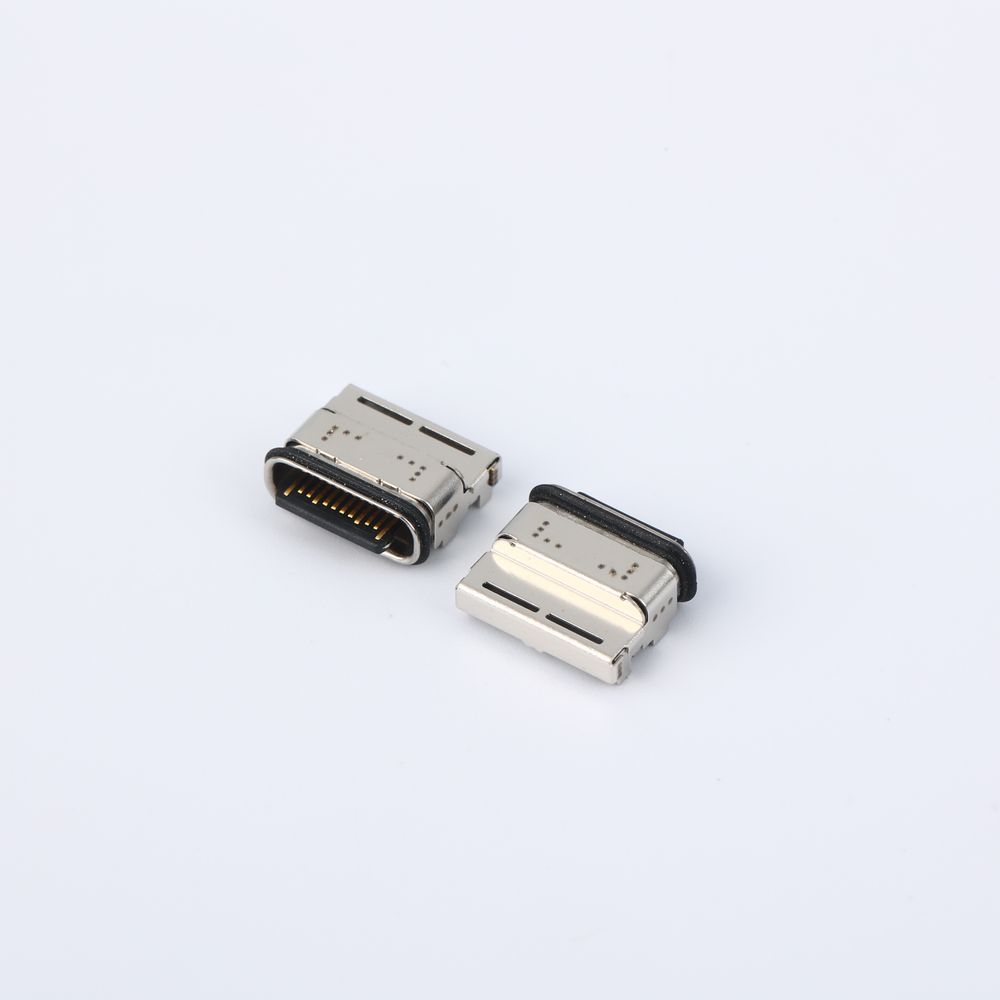

model numarası.: AAUS+21301+A1107 double Type-C 24PIN IP54 SMT
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | PA9T BLACK |
| TOP/BOTTOM TERMINAL: | COPPER ALLOY (C7025) |
| MATING AREA: | Au G/F |
| SOLDER TAIL: | Au G/F, 50U” NICKEL OVER ALL |
| SMALL SHELL: | SUS304, NI PLATED OR CLEEANING |
| NAIN SHELL: | SUS304, NI PLATED OR CLEEANING |
| OUTER SHELL: | SUS304, SOLDER NICKEL, 30U” MIN |
| MIDDLE PLATE: | SUS301, NICKEL, 30U” MIN |
| LIM: | CHN-LIMS, BLACK |
| CURUENT RATING: | 5.0A |
| VOLTAGE RATING: | 20.0V |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N |
| DURABILITY: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -25℃~+85℃ |
| THE PEAK TEMPERATURE ON THE BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260℃ | |
