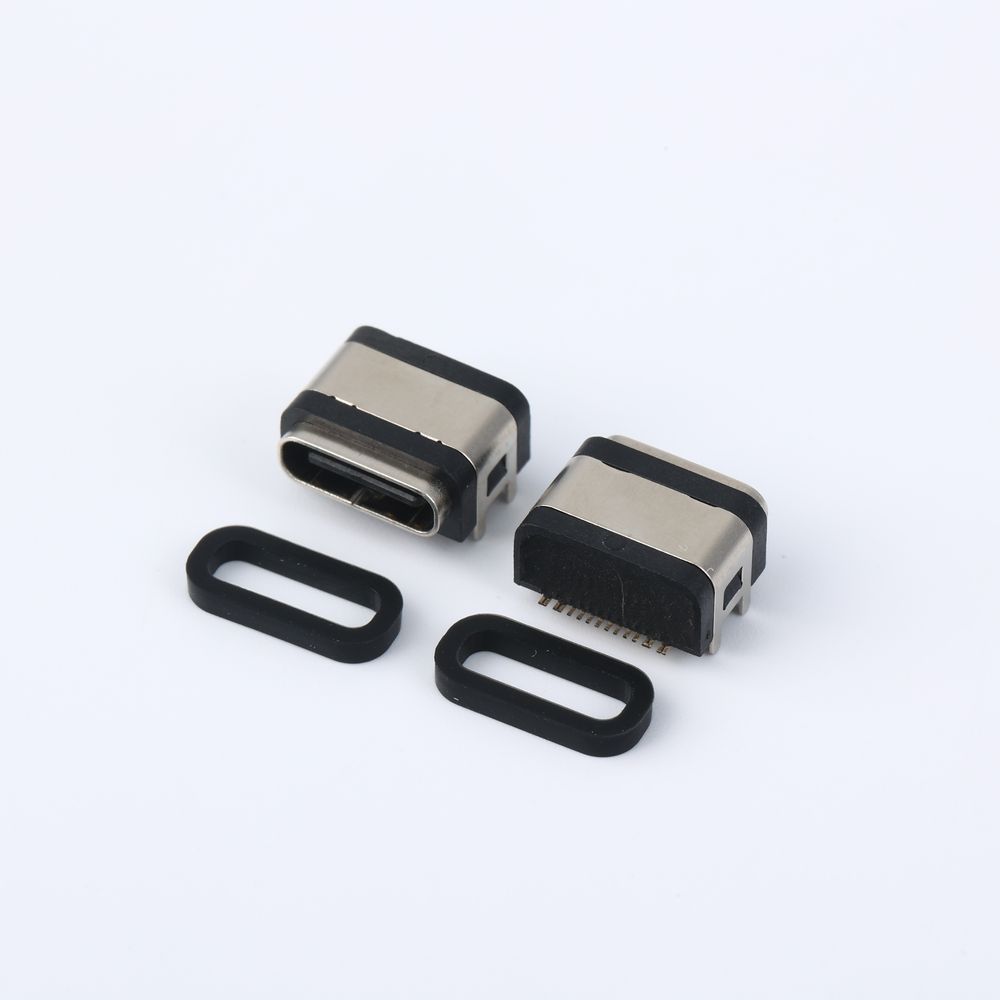

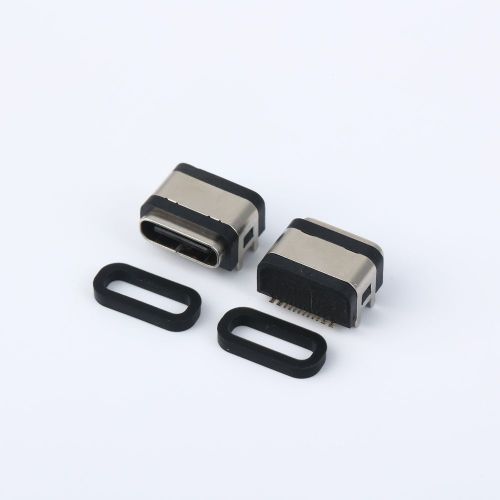

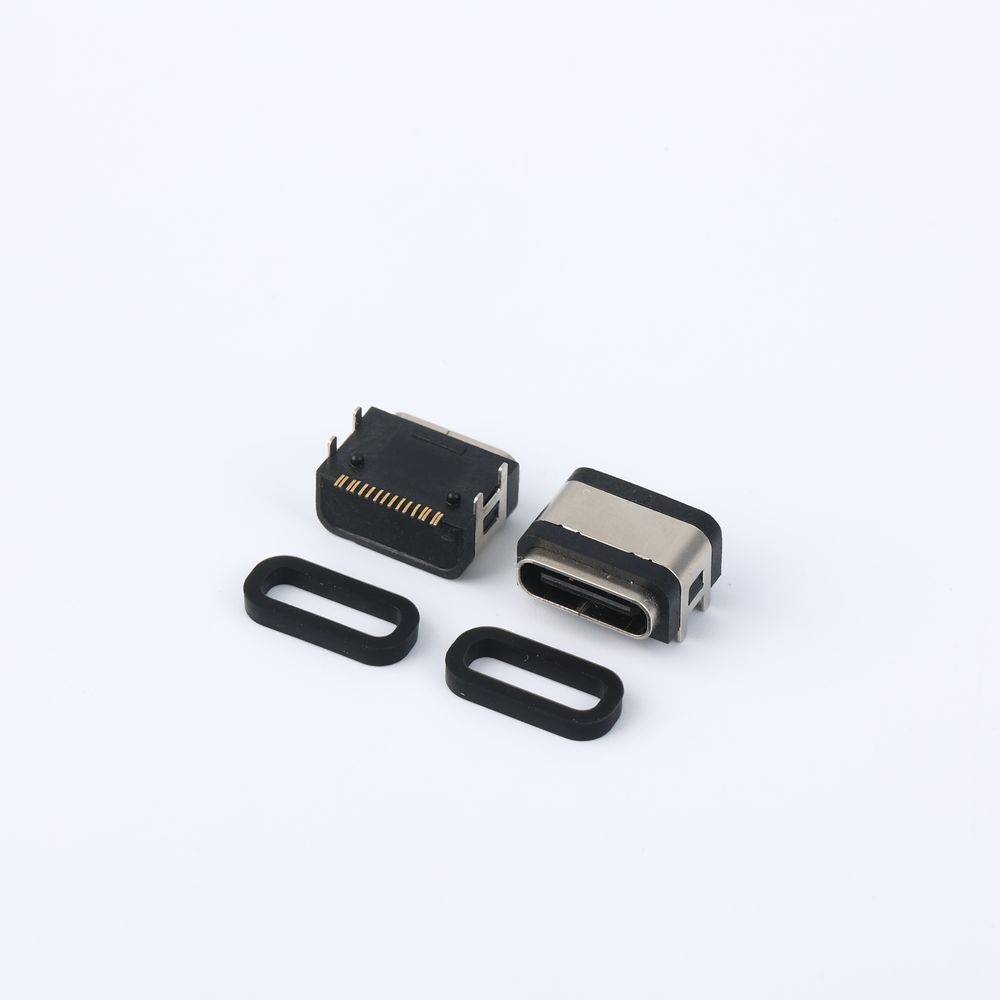

model numarası.: AAUS+3380+6702 type-c 16pin IP67
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94V-0 BLACK. |
| CONTACT: | C7025 |
| G/F AU ON CONTACT AREA AND SOLDER TAIL AREA, 30U'' ALL OVER NICKEL PLATED | |
| SHIELDING PLATE: | SUS304, NI PLATED |
| SHELL: | SUS304, NI PLATED |
| O-RING: | SILICA GEL BLACK |
| EPOXY: | EPOXY RESIN |
| MID PLATE: | SUS301, NO PLATED |
| SHEATH: | PA46 BLACK |
| ELECTRICAL: | |
| CURUENT RATING: | |
| 5A COLLECTIVELY FOR VEUS PINS | |
| 6.25A COLLECTIVELY FOR GND PINS | |
| 1.25A FOR A5/B5 PIN 0.25A PER PIN FOR ALL OTHERS PINS | |
| LLCR: | VBUS & GND PINS AND OTHER PINS: 40mΩ/PIN MAX |
| SHIELD: | 50mΩ/MAX |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR 1 MINUTE |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 6~20N AFTER TEST |
| DURABILITY: | 20000 CYCLES |
| OPERATING TEMPERATURE: | -30℃~+85℃ |
| THE PEAK TEMPERATURE ON THE BOARE SHALL BE MAINTAINED FOR 10 SECONDS AT 260℃. | |
