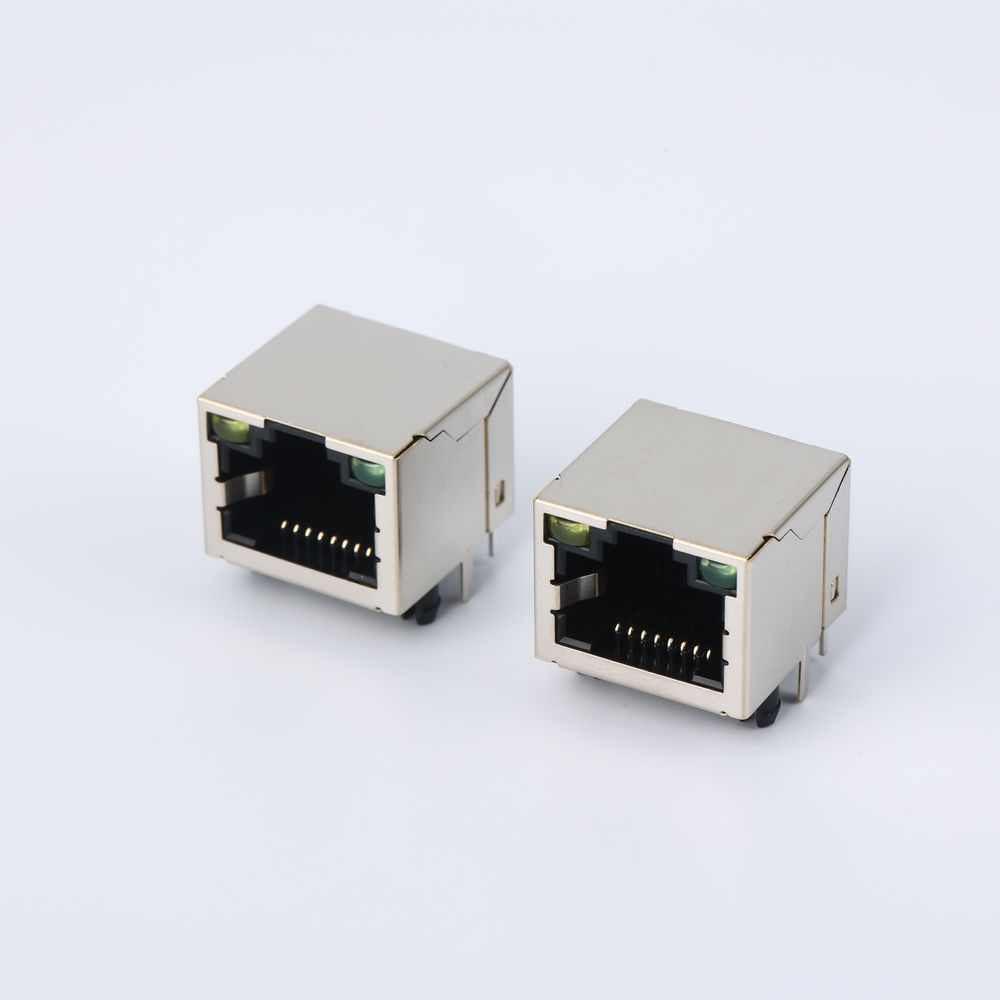

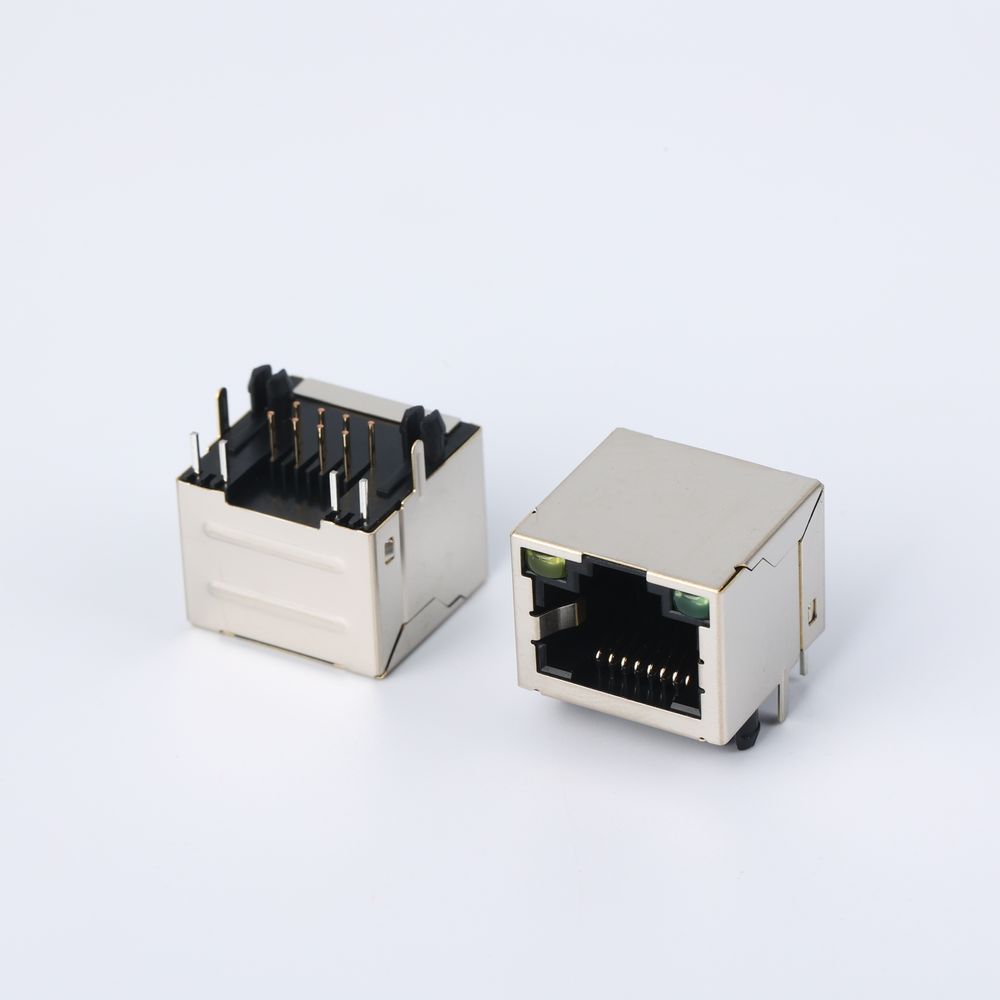

model numarası.: AAOE+5A06-096D RJ45 connector 8P8C R/A
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Material description | |
| HOUSING: | PBT BLACK UL94V-0 |
| CONTACT: | DIAMETER 0.46mm PHOSPHOR, G/F PLATING OVER NICKEL |
| SHELL: | COPPER ALLOY, 30U''NICKEL PLATING |
| ELECTRICAL: | |
| CURUENT RATING: | 1.5AMP |
| VOLTAGE RATING: | 125VAC RMS |
| CONTACT RESISTANCE: | 30mΩ MAX |
| INSULATION RESISTANCE: | 500mΩ MIN AT 500VDC |
| DIELECTRIC STRENGTH: | 1000VAC 50HZ OR 60HZ 1MIN |
| MATING FPRCE: | 2.2KGF MAX |
| RETENTION STRENGTH: | 7.7KGF MIN BETWEEN JACK AND PLUG |
| OPERATING LIFE: | 750 CYCLES MIN |
| STORAGE TEMPERATURE: | -40℃~+85℃, HUMIDITY ＜70% |
| OPERATING TEMPERATURE: | -40℃~+85℃ |
