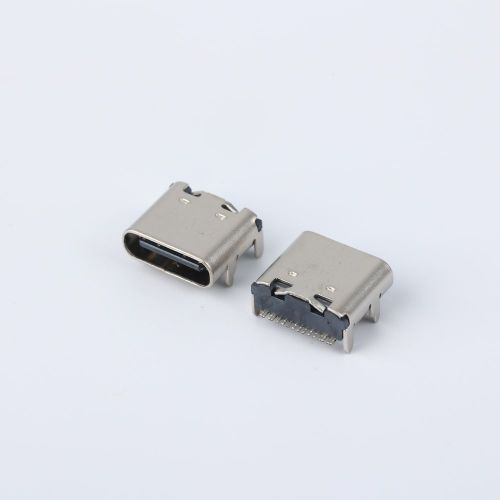

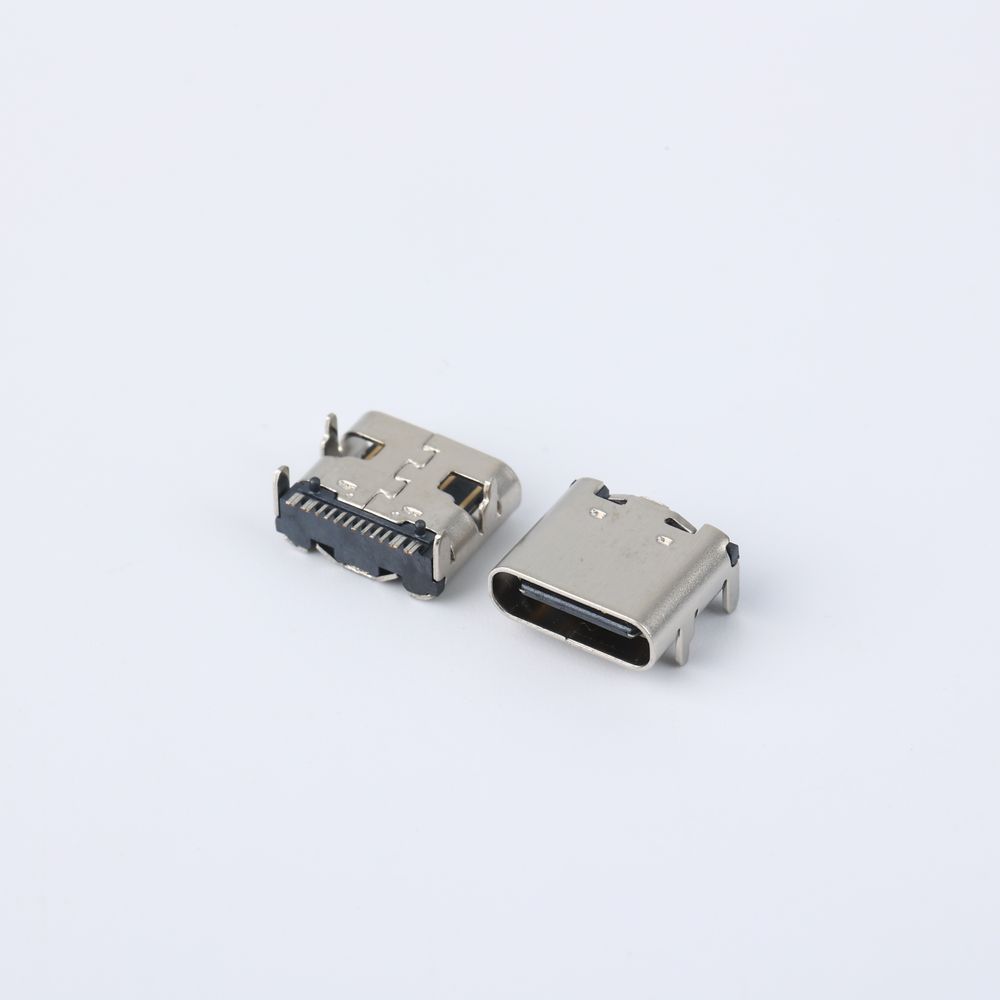

model numarası.: single 16pin SMT CH=+3.26
Marka: YIFENG
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94V-0 BLACK. |
| CONTACTS: | C7025 T=0.15 |
| GLIP: | SUS301 T=0.15 |
| SHELL: | SUS304 T=0.3 |
| GND: | SUS316 T=0.1 |
| PLATING SPECIFICATION: | |
| CONTACTS: | 0.6U” Gold In Contact Area 30U” MIN Matte Sn Plate In Solder Area. Over 30U” MIN.Ni |
| SHELL: | 30U”MIN. Ni PLATED |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N,After Life Test Un-mating force: 6~20N |
| LIFE TEST: | TEST:10000 CYCLES |
| DTHER GENERAL SPEC, TO REFER “2XXXXXX SPEC" | |
| TO CONFORM TO SINGATRON HAZARDOUS SUBSTANCE FREE SPECIFICATION | |
| HALOGEN FREE PRODUCT IDENTIFICATION LOGD ON PACKAGING | |
| PACKAGING: | REEL |
| ELECTRICAL CHARACTERISTICS: | |
| RATING: | 20V5A MIN FOR VBUS, 0.25A MIN FOR OTHER |
| CONTACT RESISTANCE: | 40m MAX. |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR ONE MINUTE |
| INSULATION RESISTANCE: | 100M MIN, MEASURED BY 100 VDC |
