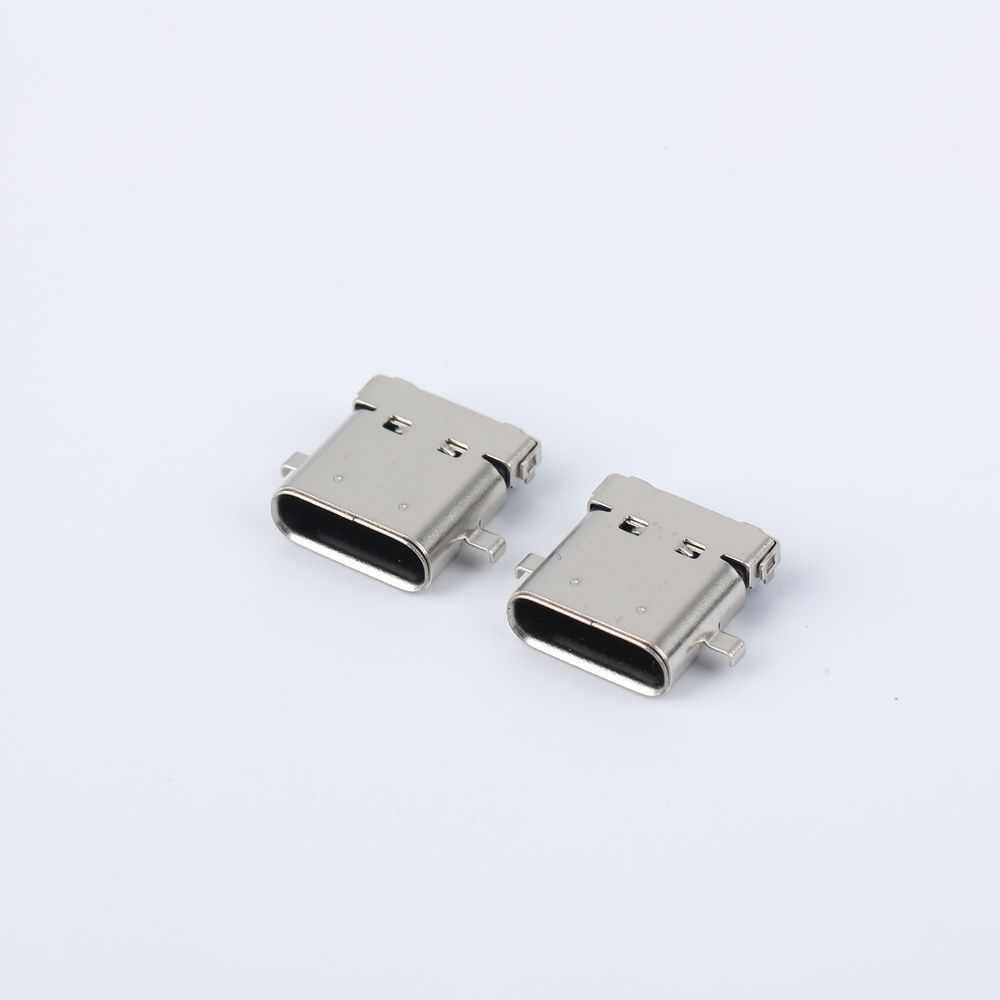

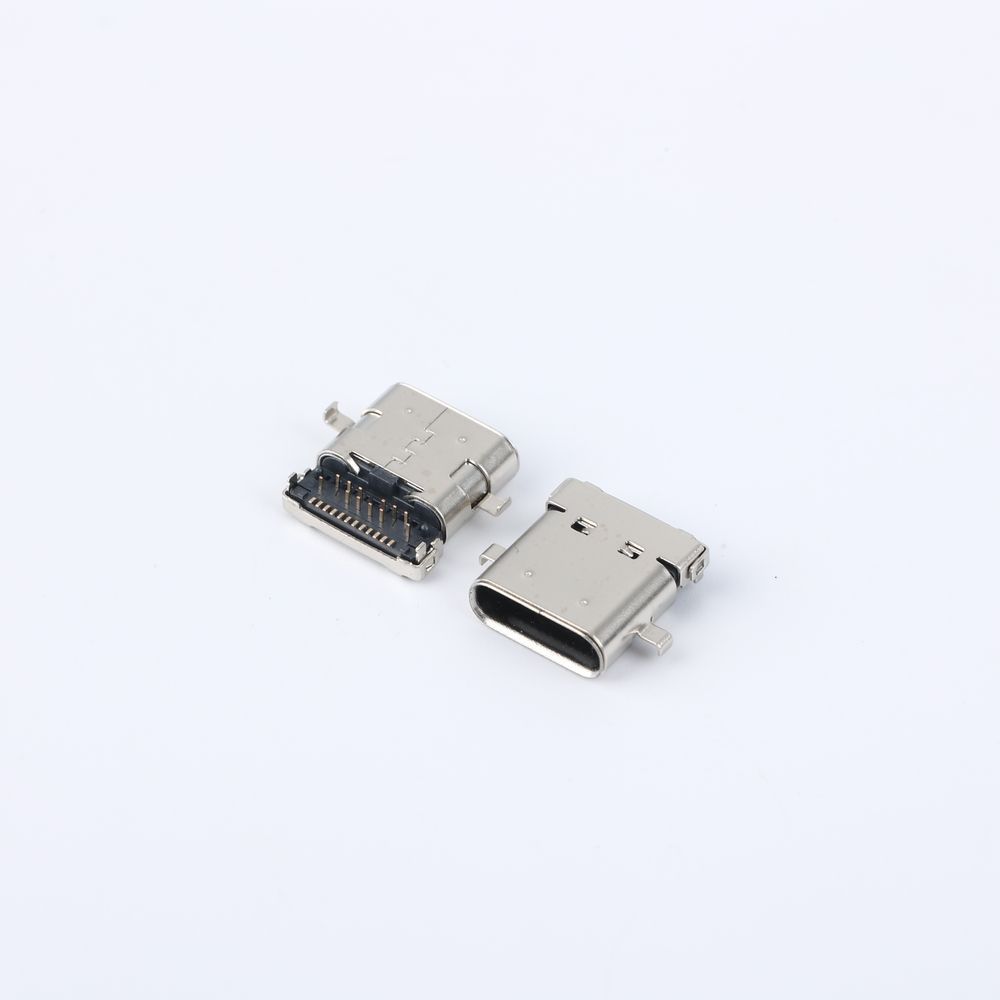

model numarası.: AAUS+24R2B+DP31 Type-C DIP-SMT female
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MOLDING: | LCP UL94 V-0 NLACK |
| CONTACT: | COPPER ALLOY |
| G/F PLATED GOLD ON CANTACT AREA | |
| G/F GOLD ON SOLDER AREA | |
| 50u” NICKEL PLATING OVER ALL | |
| OUTER SHELL: | SUS304-H, T=0.20+0.03mm |
| 50u”NICKEL SOLDER AREA TAIL | |
| INNER SHELL: | SUS304, T=0.2+0.03mm |
| EMI SHILD: | SUS304, T=0.12+0.03mm |
| LATCH: | SUS301, T=0.15+0.03mm |
| MECHANICAL: | |
| INSERTION: | 5~20N |
| EXTRACTION: | 8~20N |
| DURABILITY: | 10000 CYCLES |
| ELECTRICAL: | |
| CURRENT: | 5A MAX FOR VBUS, 1.25A FOR GND, 025A FOR OTHER |
| VOLTAGE: | 20VDC MAX |
| WITHSTANDING VOLTAGE: | 100V AC |
| CONTACT RESISTANCE: | 40m MAX |
| INSULATION RESISTANCE: | 100M MIN |
| TEMPERATURE RANGE: | -40℃ ~ +85℃ |
