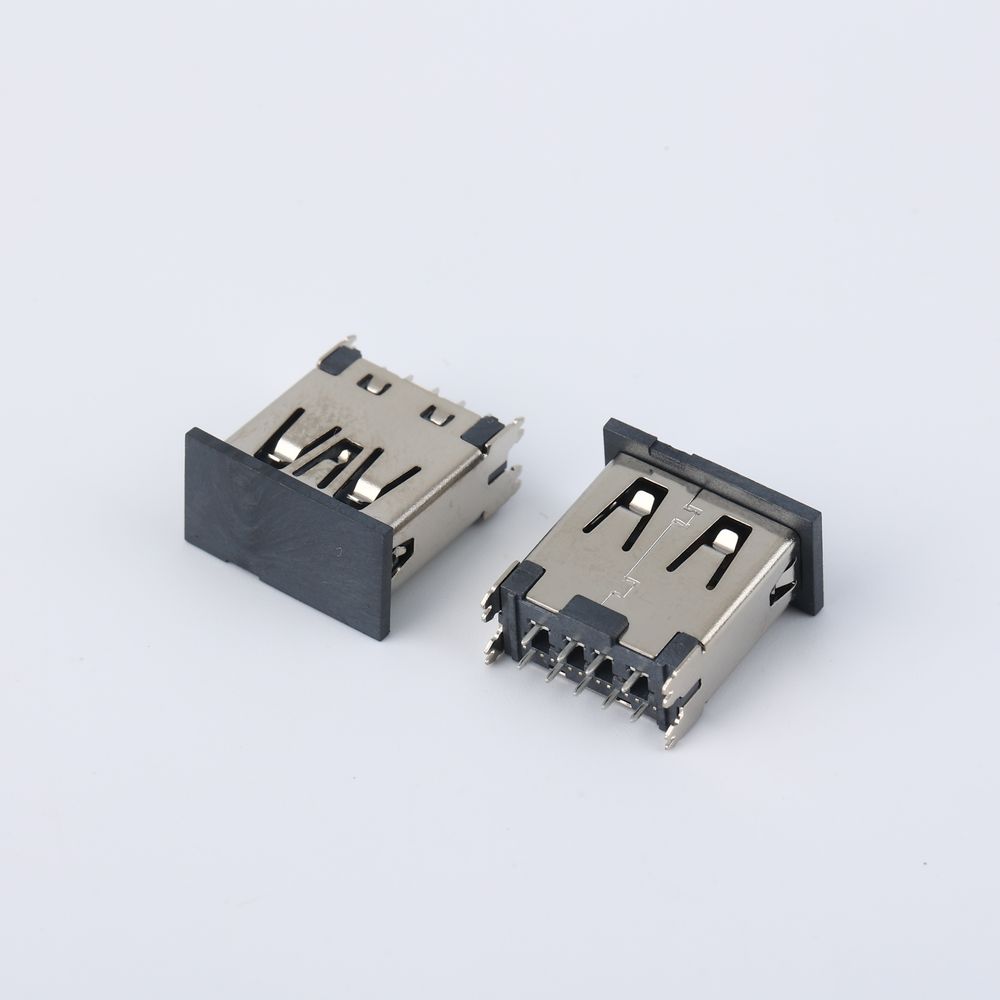

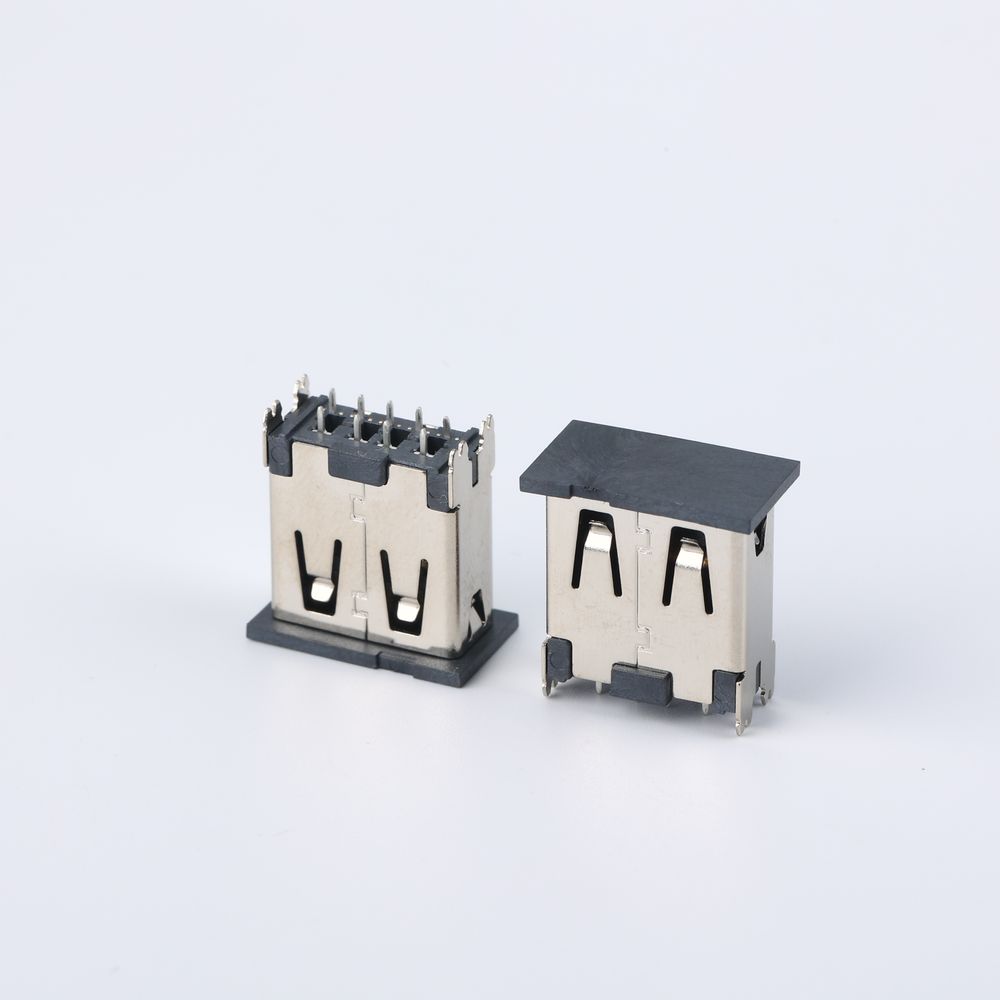

model numarası.: AAUS+GX09S+1335R USB3.0 S/T H=13.35
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING MATERIAL: | LCP BLACK |
| SHELL: | SUS201 T=0.3, OVERALL PLATED WITH 60U' MIN NICKEL |
| CONTACT 4PIN: | C5191 T=0.25 |
| CONTACT 5PIN: | C2680 T=0.25, |
| CAP: | LCP BLACK |
| CURUENT RATING: | 1.5A |
| VOLTAGE RATING: | 30V MAX |
| CONTACT RESISTANCE: | 30mΩ |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | APPLY 500VAC FOR 1 MINUTE BETWEEN ADJACENT TERMINAL OR GROUND |
| INSERTION FORCE : | 35N MAX |
| WITHDRAWAL FORCE : | 10~35N |
| OPERATING TEMPERATURE: | -40℃~+85℃ |
