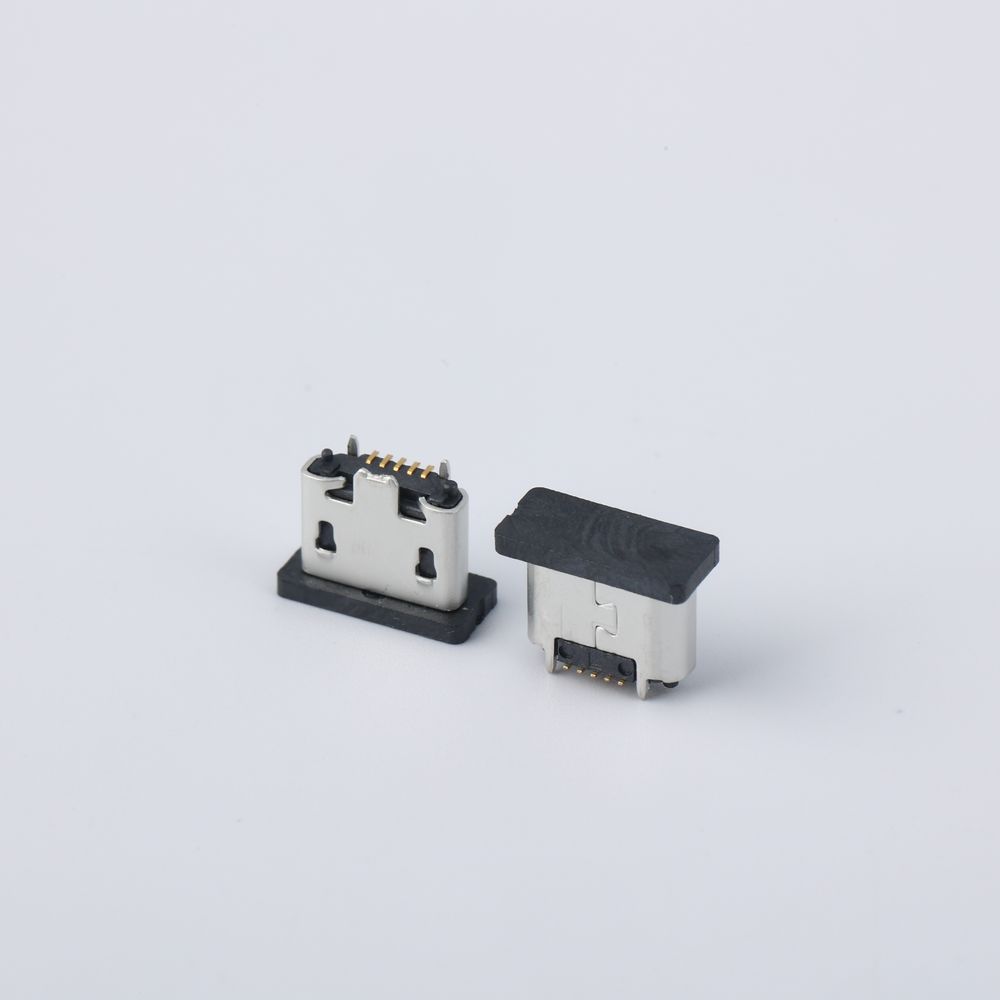

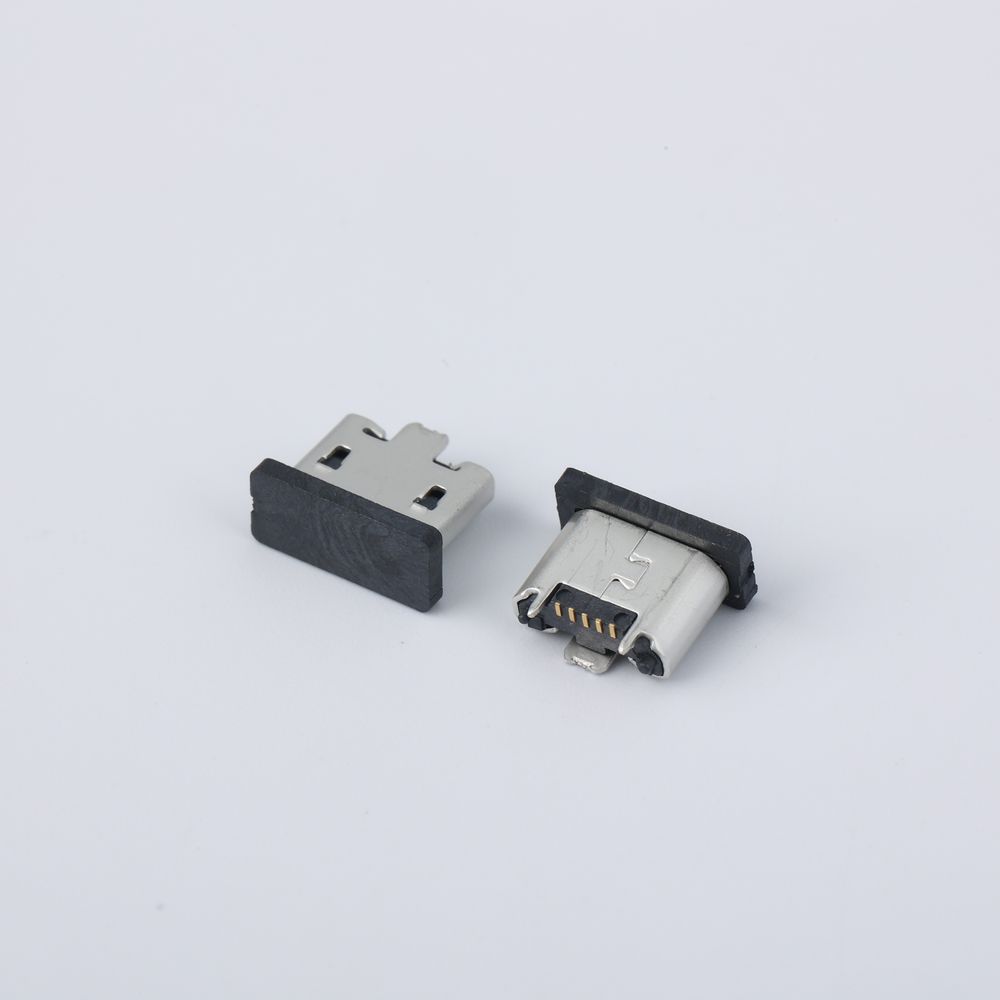

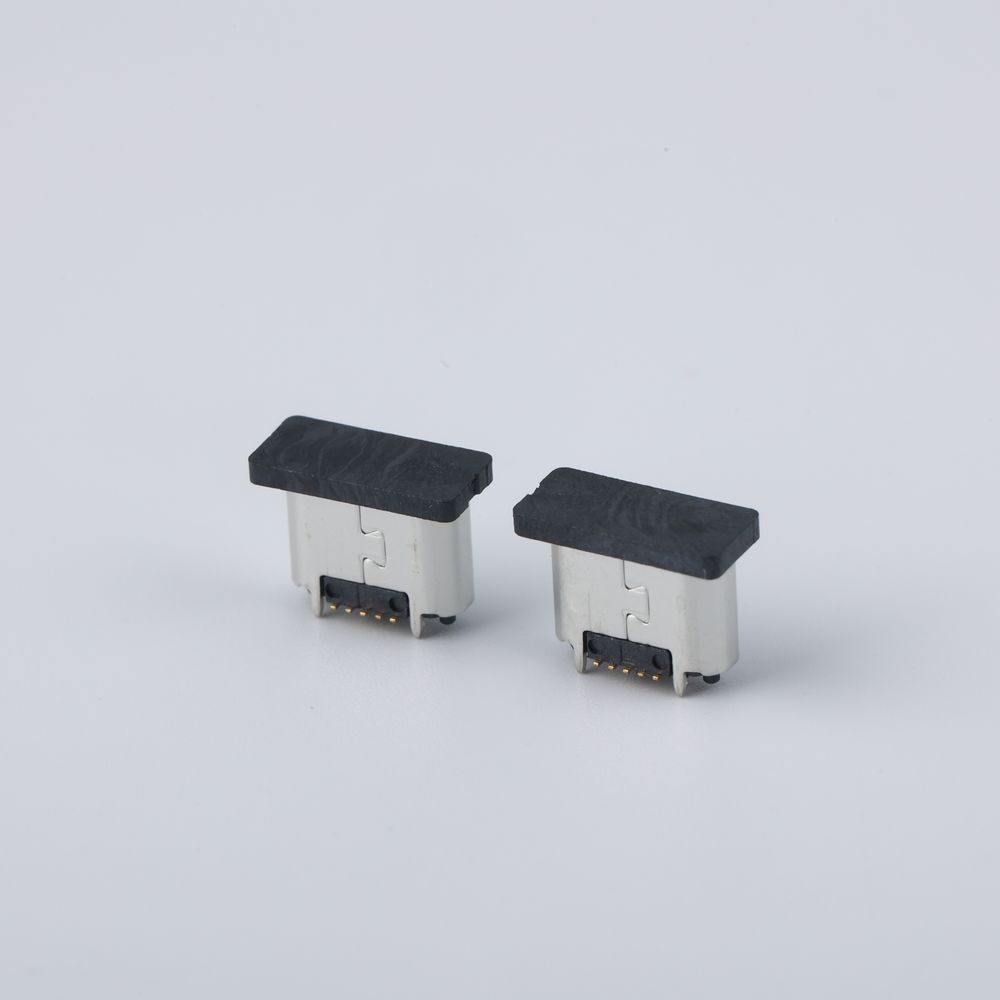

model numarası.: AAUS+MICRO+556X micro USB 5PIN vertical
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING/CAP | LCP+GF, UL94V-0, BLACK |
| SHELL | STAINLESS STEEL, NI 30U' MIN OVERALL |
| CONTACT | BRASS T=0.15mm, G/F GOLD PLATED ON THE CONTACT AREA, G/F PLATED ON SOLDER TAILS, NI 30U' MIN UNDER PLATING OVER ALL |
| CURUENT RATING | 1.8A MAX (PIN 1 AND PIN 5), 0.5A MAX (OTHER CONTACTS) |
| VOLTAGE RATING | 30V (RMS) RMS |
| CONTACT RESISTANCE | 30mΩ MAX (INITIAL), MAX CHANGE (DELTA) OF +10mΩ (FINAL) |
| INSULATION RESISTANCE | 100mΩ MIN 100V DC |
| DIELECTRIC WITHSTANDING VOLTAGE | 100V AC NO BREAKDOWM |
| PERATING TEMPERATURE | -30℃~+80℃ (INCLUDING TEMPERATURE RISE) |
| INSERTION FORCE | FORCE :35N MAX. MATE AT THE MAX, RATE OF 12.5mm PER MINUTE |
| WITHDRAWAL FORCE | 8N MIN. MATE AT THE MAX, RATE OF 12.5mm PER MINUTE |
| DURABILITY | 10000CYCLES |
