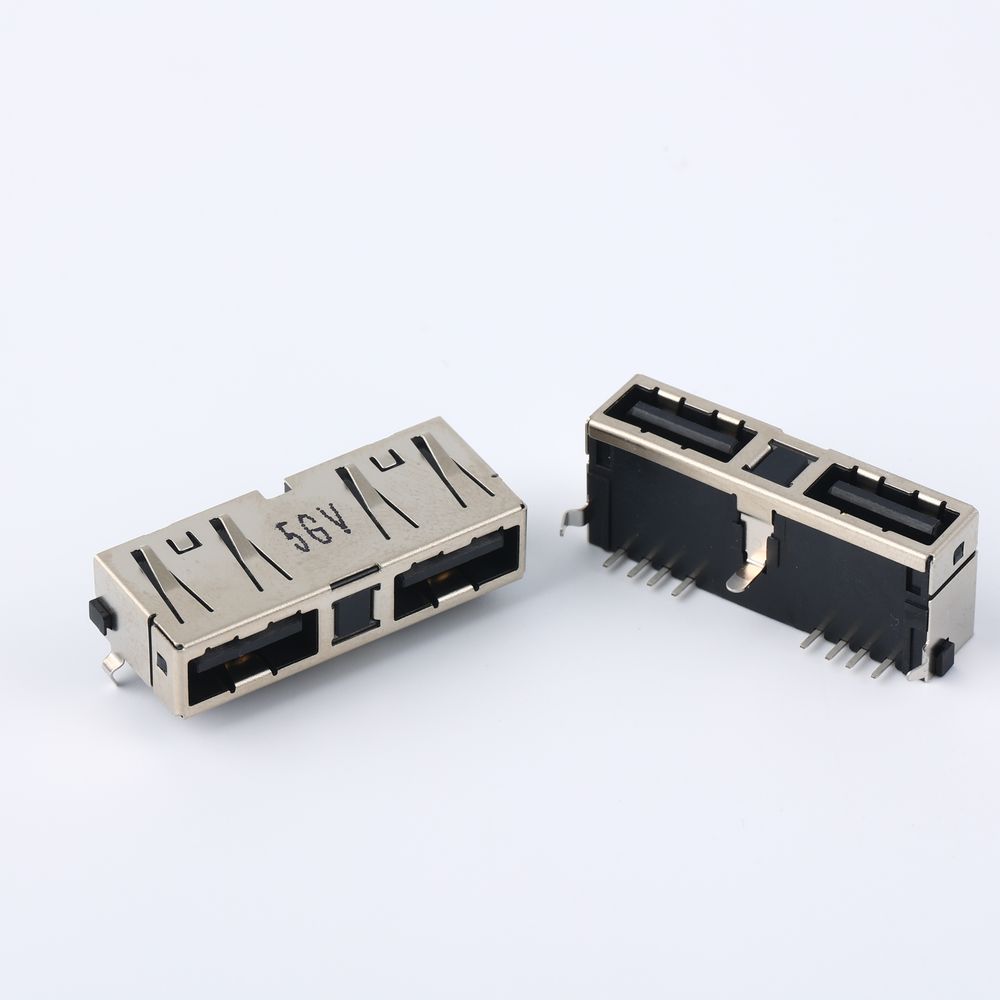

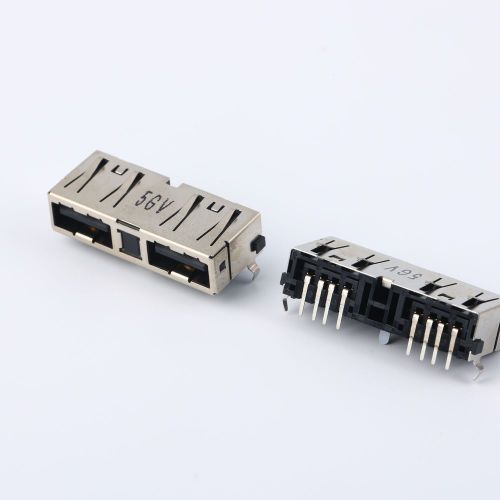

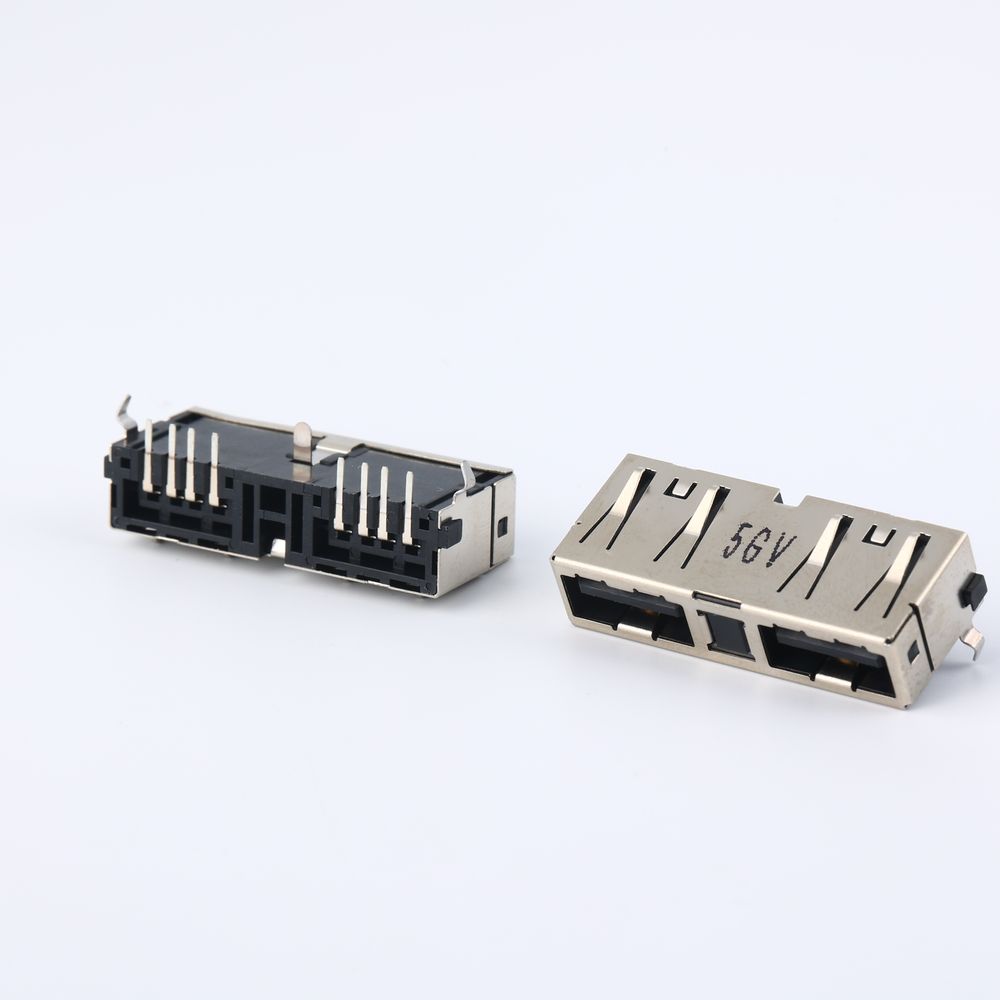

model numarası.: AUS-A03F+0X700 USB 2.0 double
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | F202G30 UL94V-0 RATED, BLACK |
| CONTACT: | PHOSPHOR BRONZE, 0.75~1.75UM AU PLATING ON CONTACT AREA, 2.5~4.0UM SN PLATED ON SOLDER TAILS, 1.25~2.75UM NI UNDERPLATING OVERALL. |
| SHELL: | SUS304-3/4H T=0.25mm, 50~150U'' SN PLATED OVERALL, 30~120U' NICKEL UNDERPLATING OVERALL |
| ELECTRICAL CHARACTERISTICS: | |
| CURUENT RATING: | 1.5Amp |
| CONTACT RESISTANCE: | 30mΩ MAX |
| INSULATION RESISTANCE: | 100mΩ MIN |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100 V AC PER MINUTE |
| OPERATING TEMPERATURE: | -55℃~+105℃ |
| INSERTION FORCE : | 35N MAX |
| WITHDRAWAL FORCE : | 10~15N |
