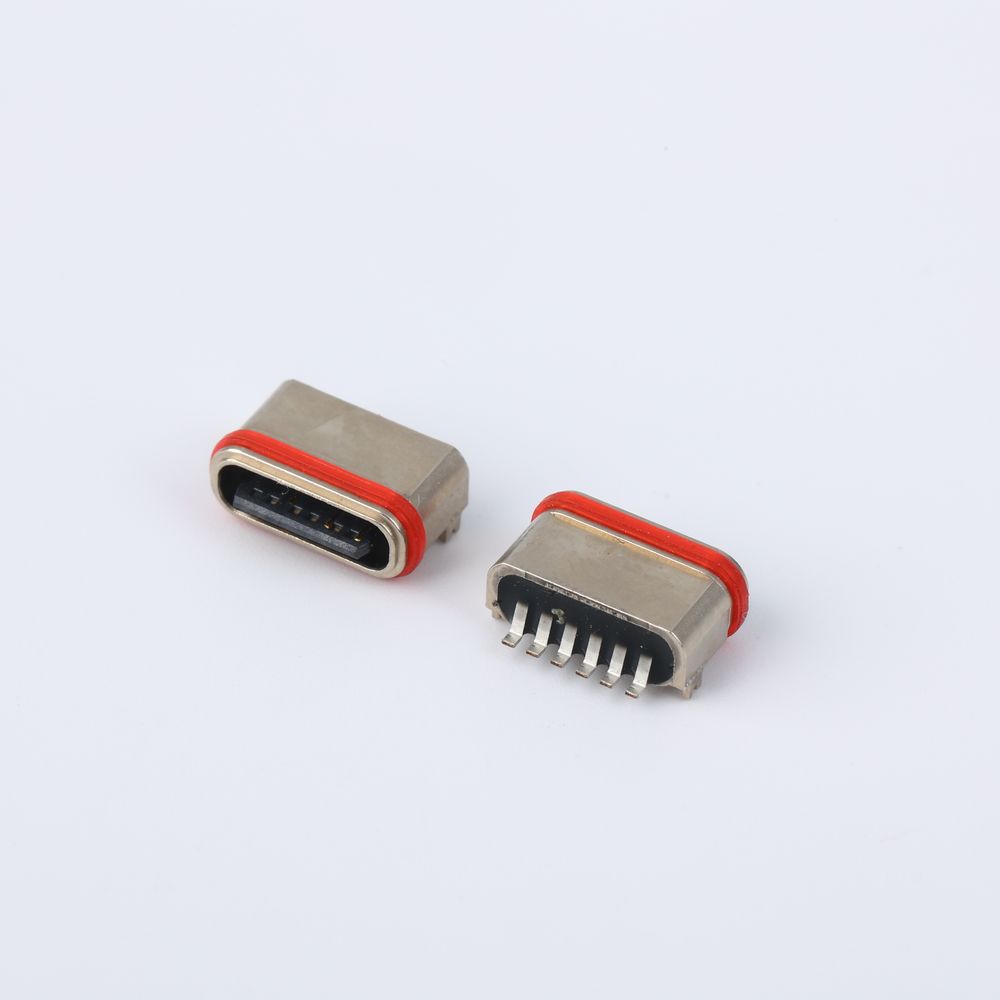

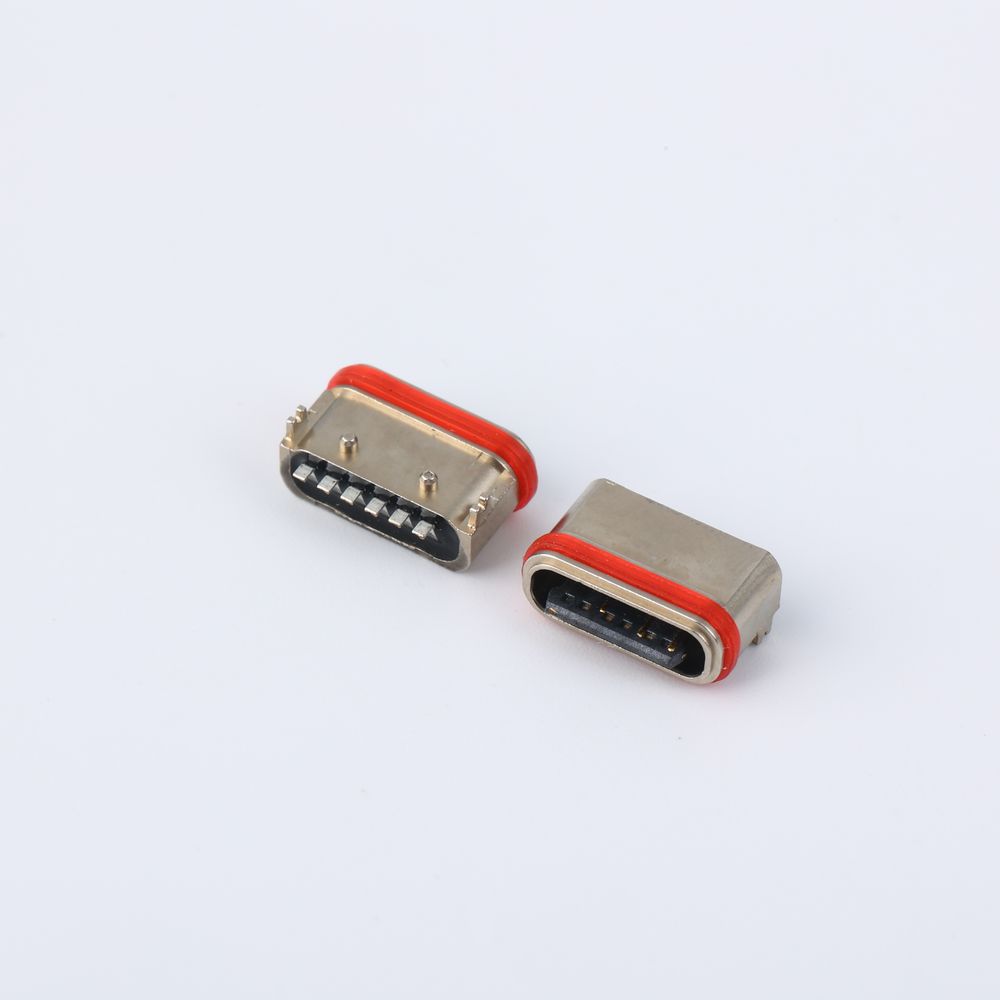

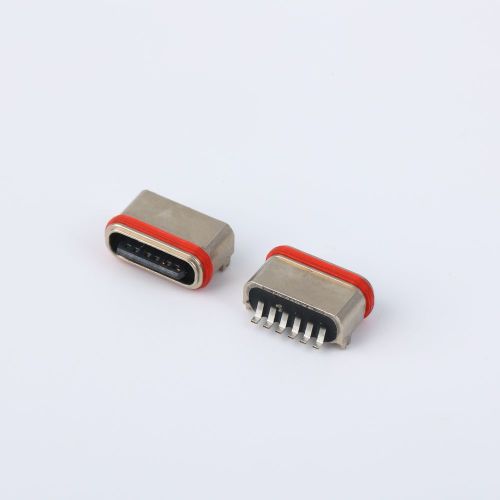

model numarası.: AAUS+06C1+LV1TA 6PIN IPX7 Type-C
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94V-0 BLACK. |
| CONTACTS: | COPPER ALLOY G/F |
| SHELL: | METAL ALLOY |
| MIDDLE PLSTE: | SUS |
| ELECTRICAL: | |
| CURUENT RATING: | |
| VBUS AND GEN CONTACTS RATED AT 3A MAX | |
| VBUS AND GEN CONTACTS RATED AT 0.5A MAX | |
| 0.9Amps MAX FOR A TOTAL OF 5A | |
| INITIAL CONTACT RESISTANCE: | 40 MILLIOHMS |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC MIN |
| MECHANICAL CHARACTERISTICS: | |
| INSERTION FORCE : | 5~20N |
| WITHDRAWAL FRCE : | 8~20N (INITIAL), 6~20N (AFTER 10000 CYCLES) |
| FREQUENCE: | 200±50 CYCLES/HOUR, 10000 CYCLES |
| OPERATING TEMPERATURE: | -40℃~+80℃ |
