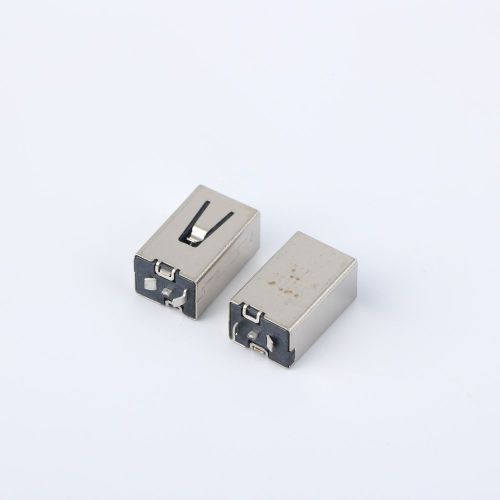

model numarası.: AAPJ+110B1-25LZT dc power jack 2.0
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP THFRMOPLASTIC BLACK |
| TIP SPRING: | COPPER ALLOY T=0.25, G/F ON CONTACT AREA, 120U'' SN ON SOLDER TALL, ALL OVER NI 50U'' MIN |
| SHUNT TERMINAL: | BRASS STRIP T=0.3, G/F ON CONTACT AREA, 120U'' SN ON SOLDER TALL, ALL OVER NI 50U'' MIN |
| PIN: | BRASS, G/F OVER NI 50U'' |
| SHELL: | BRASS, T=0.30mm, PLATING 50U'' NI |
| TERMINAL: | STAINLESS STEEL T=0.3 |
| RATING CURRENT: | DC 20V 10A |
| CONTCAT RESISTANCE: | 30mΩ MAX (INITIAL) |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR ONE MINUTE |
| INSULATON RESISTANCE: | 100mΩ MIN MEASURED BY 500 V DC |
| INSERTION FORCE : | 3.0KGF MAX |
| WITHDRAWAL FORCE: | 0.3~3.0 KGF |
| LIFE TEST: | 5000 CYCLES MIN |
