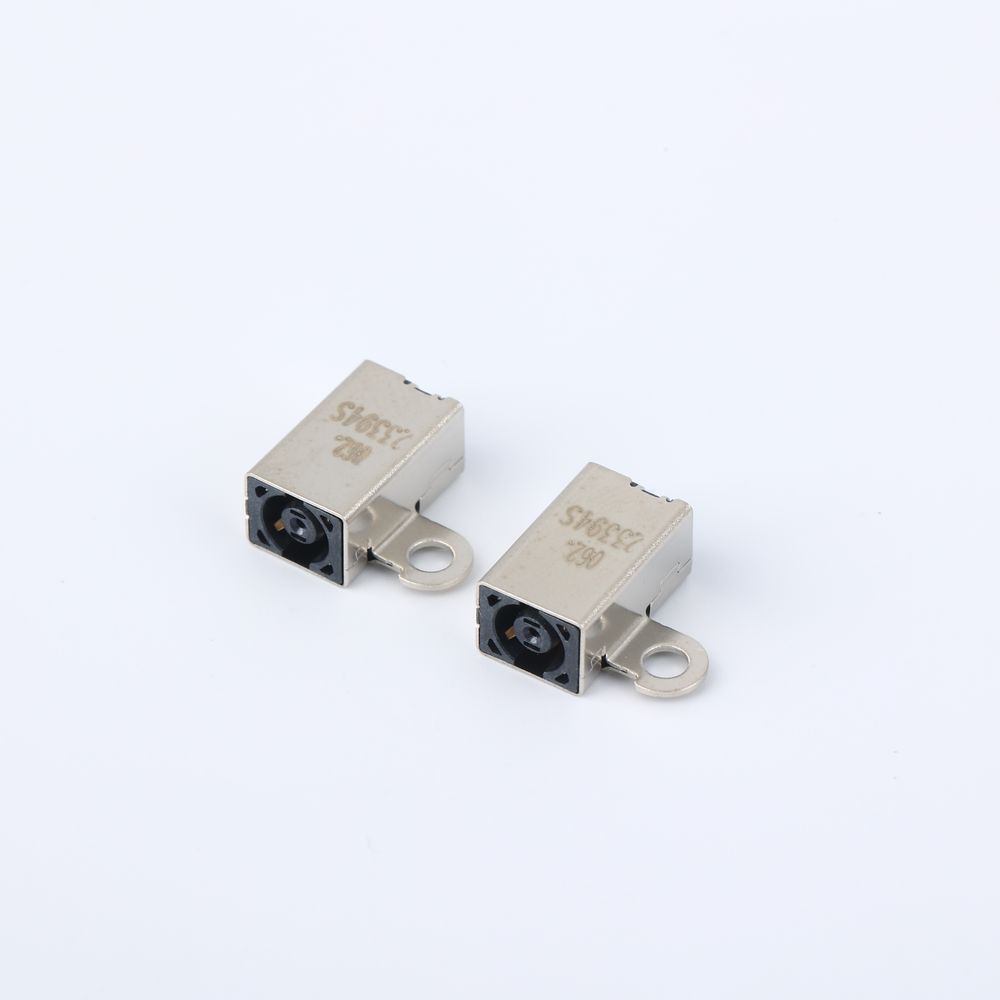

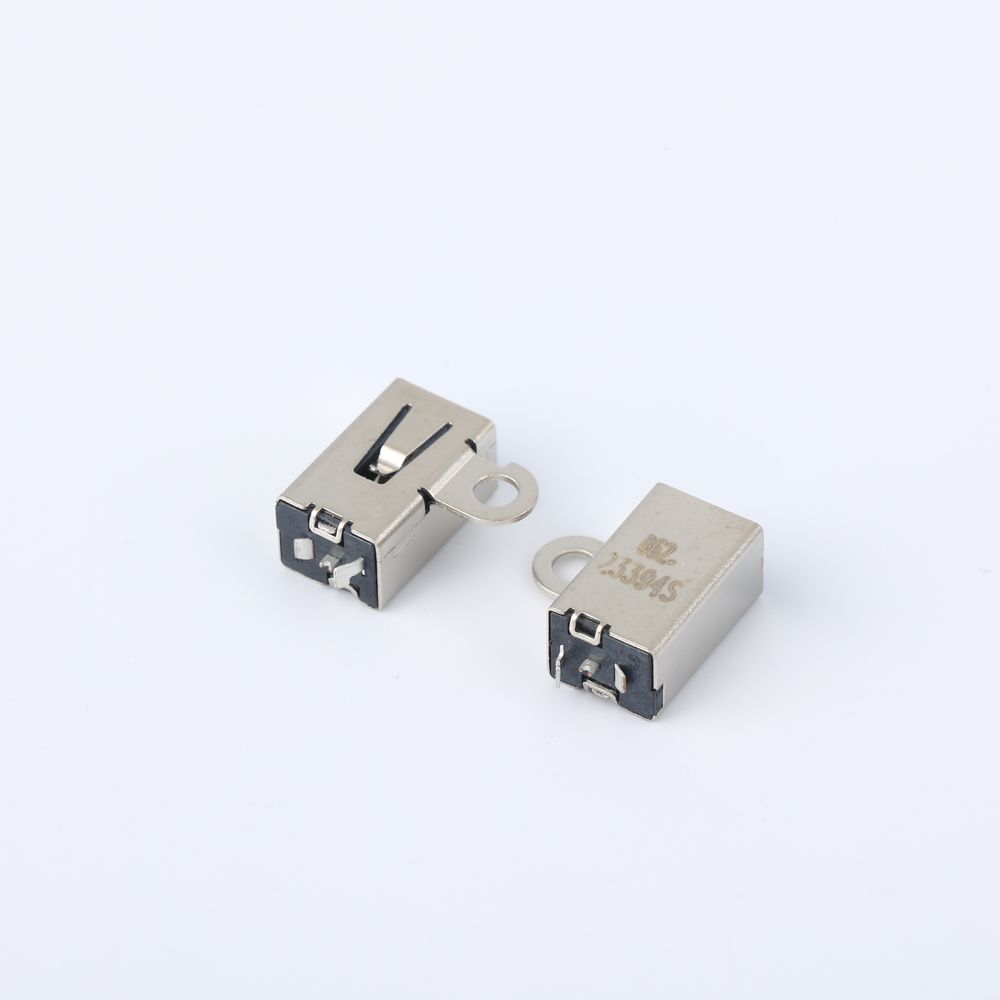

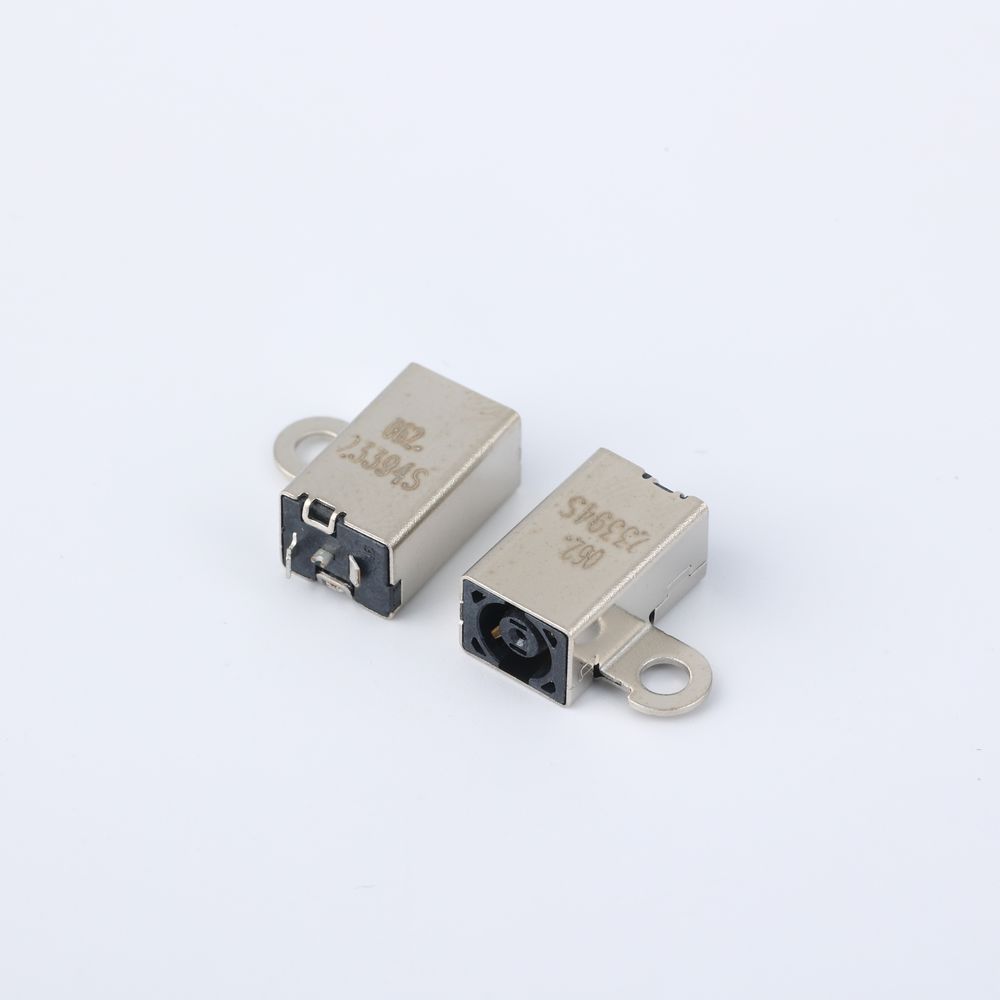

model numarası.: APJ+10U0+062 DC Jack H=12mm CH=1.84mm
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP E1301 UL94V-0, BLACK |
| GROUND PIN: | PHOSPHOR BRONZE C5210R-EH T=0.25mm |
| POWER PIN: | PHOSPHOR BRONZE C5210R-EH T=0.25mm |
| DETECT PIN: | PHOSPHOR BRONZE C5210R-EH T=0.35mm, |
| SHELL: | SUS201 T=0.20mm, PLATING 30U'' NI |
| STOPPLE: | LCP E130i UL94V-0 BLACK |
| RATING CURRENT: | 8.0A & 30 MAX AT OVER AMBIENT |
| RATED VOLTAGE: | 20V DC |
| CONTCAT RESISTANCE: | 30mΩ MAX |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR ONE MINUTE |
| INSULATON RESISTANCE: | 50mΩ MIN AT 500V DC AFTER A MINUTE |
| INSERTION FORCE : | 2.5KGF MAX |
| WITHDRAWAL FORCE: | 0.8Kgf MIN (INITIAL), 0.6Kgf MIN (AFTER 5000 CYCLES) |
| LIFE TEST: | 5000 CYCLES MIN |
