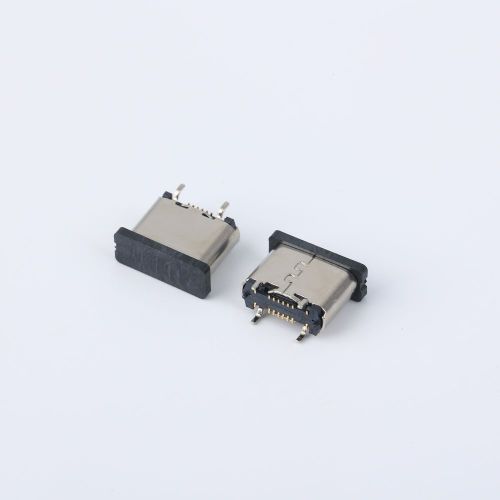

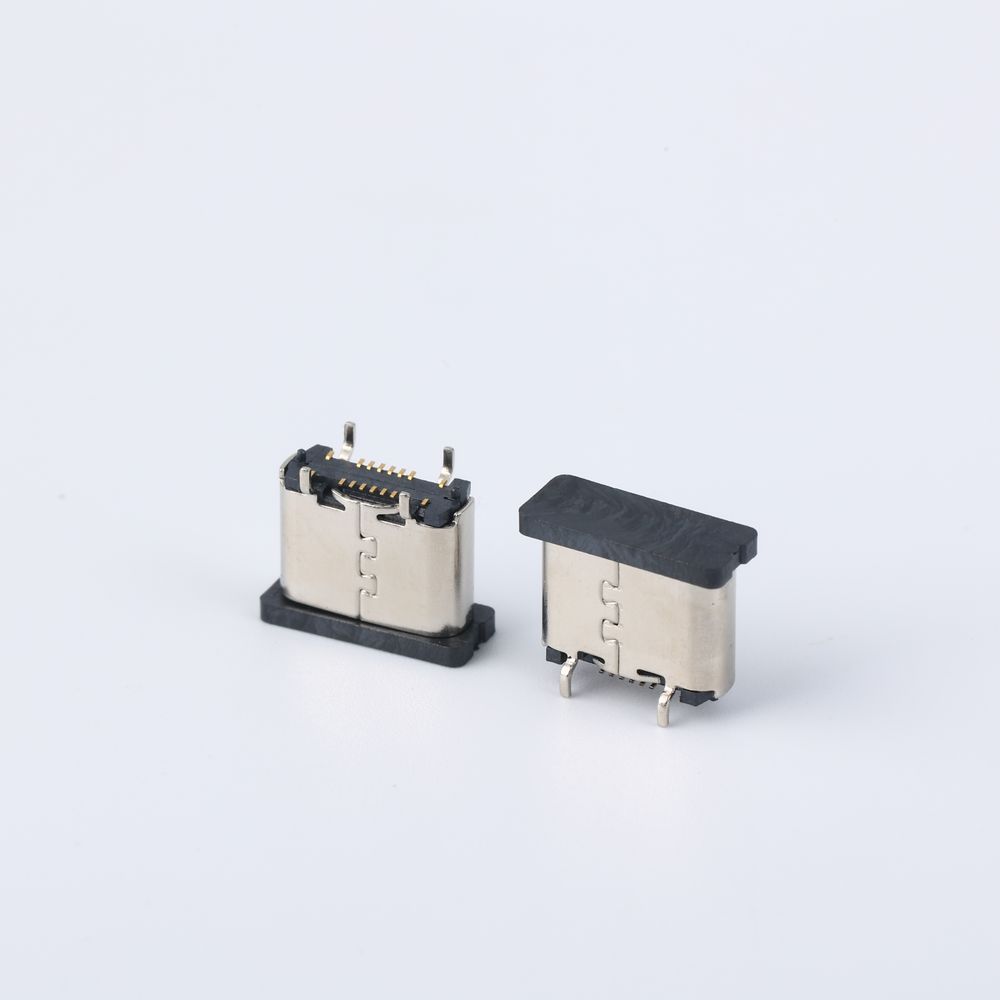

model numarası.: 16PIN USB C TYPE
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP UL94V-0 BLACK. |
| CONTACTS: | COPPER ALLOY C18150 |
| MID PLATE: | SUS301 |
| FRONT SHELL: | SUS304 |
| PLATING SPECIFICATION: | |
| CONTACTS: | 0.6U” Gold In Contact Area 30U” MIN Ni PLATED |
| FRONT SHELL: | 30U”MIN. Ni PLATED |
|
MECHANICAL CHARACTERISTICS：
|
|
| INSERTIDN FORCE:: | 5~20N |
| WITHDRAWAL FRCE: | 8~20N.After Life Test, Un-mating force: 6~20N |
| LIFE TEST: | TEST:10000 CYCLES |
| PACKAGING: | REELEL |
| ELECTRICAL CHARACTERISTICS: | |
| RATING: | 20V5A MIN FOR VBUS, 0.25A MIN FOR OTHER |
| CONTACT RESISTANCE: | 40m MAX. |
| DIELECTRIC WITHSTANDING VOLTAGE: | 100V AC FOR ONE MINUTE |
| INSULATION RESISTANCE: | 100M MIN, MEASURED BY 100 VDC |
