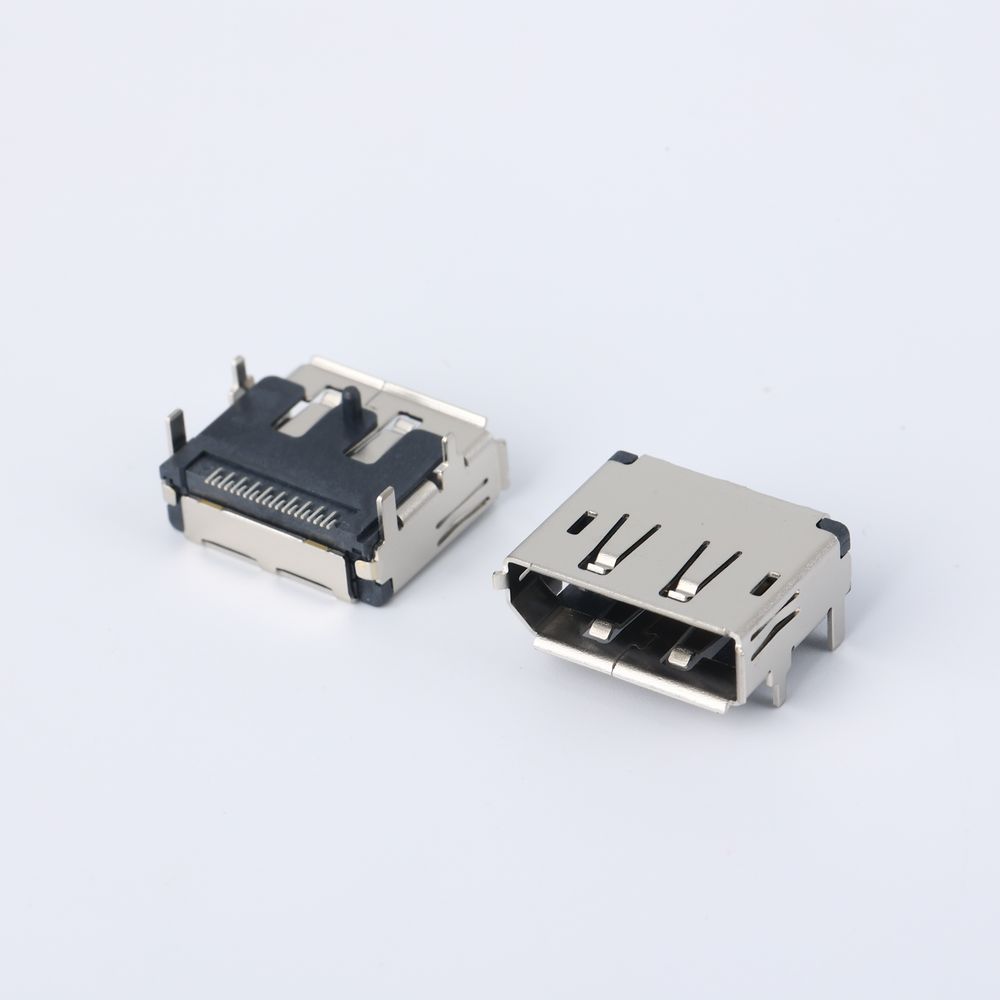

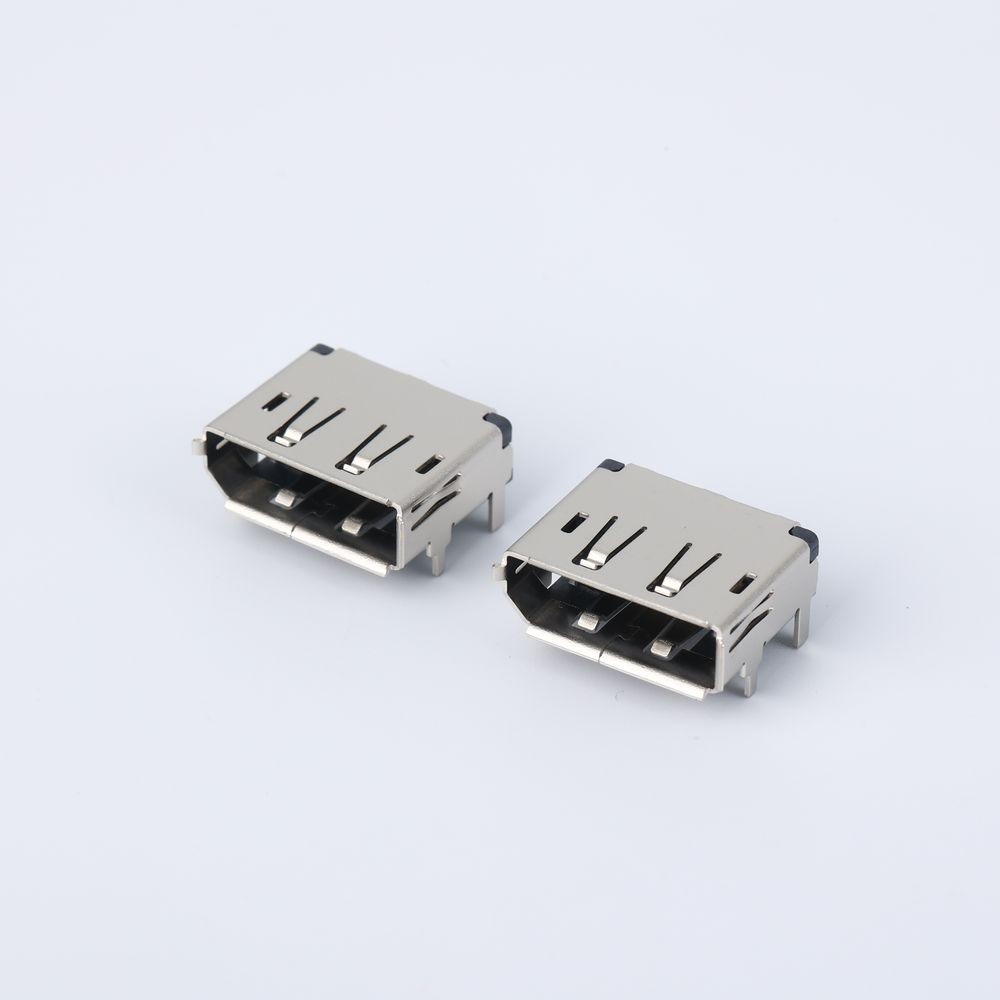

DP 2.1 R/A SMT SİYAH konnektör
Son Fiyat alın| Min. sipariş: | 1 |
model numarası.: AADP+WF11BN+18R0 DP 2.1 R/A SMT BLACK connector
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it


| MATERIAL: | |
| Housing: | LCP UL94V-0 Black |
| Cover: | LCP UL94V-0 Black |
| Contact: | Copper Alloy T=0.20 |
| Shell: | Copper Alloy T=0.40 |
| PLATING: | |
| Contact: | G/F Contact Area Gold Plated |
| Solder A | Area Sn Plated |
| Under Pl | Plated Nickel |
| Shell: | 30u" Nickel Plated |
| Current: | 0.5A |
| Voltage: | 40V RMS |
| Withstanding Voltage: | 500V AC |
| Contact Resistance: | 30 mΩ max. (Contact) |
| 50 mΩ ma | max. (Shell) |
| Insulation Resistance: | 100 MΩ min. |
| Temperature Range: | -20°C to +85°C |
| Mating And Unmating Force: | |
| 7.1 Mating Force: | 4.5Kgf(44.1N)Max. |
| 7.2 Unmating Force: | 1.0Kgf~4.0Kgf(9.8N~39.2N) |
| Durability: | 10000 Cycles |
