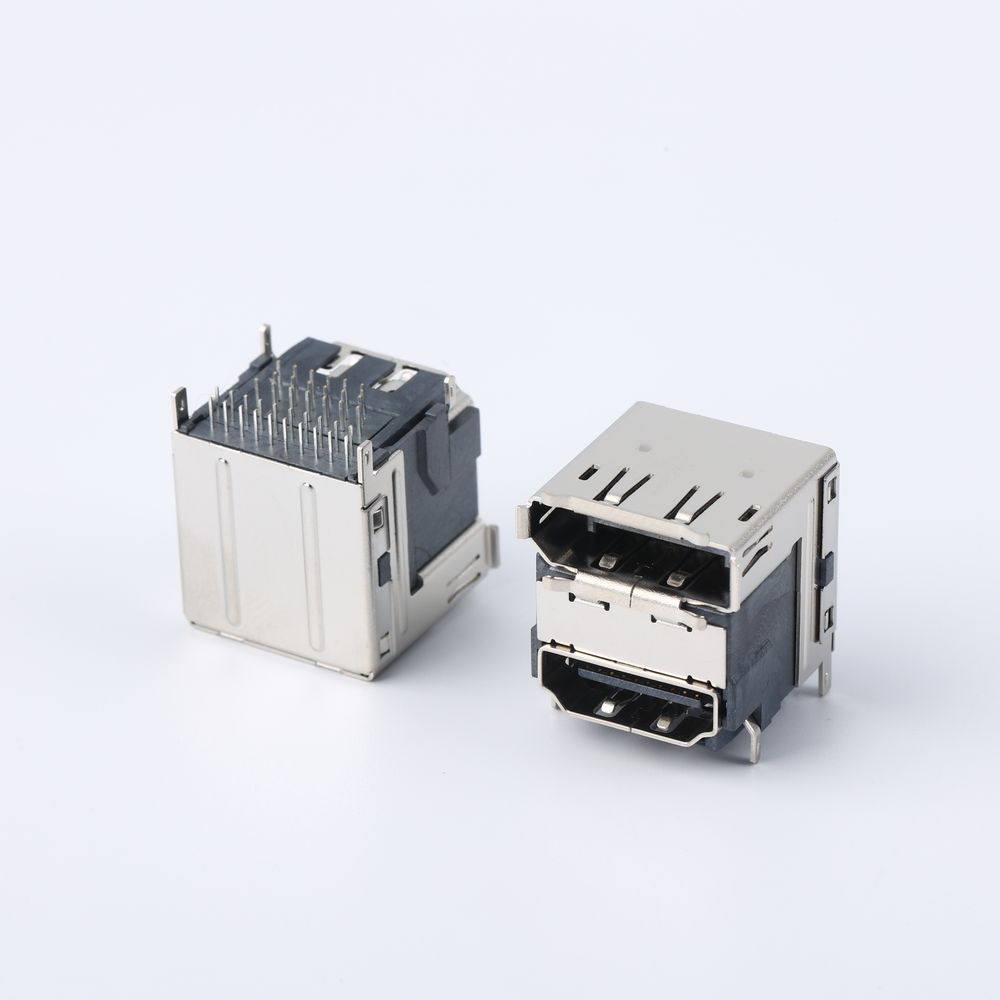

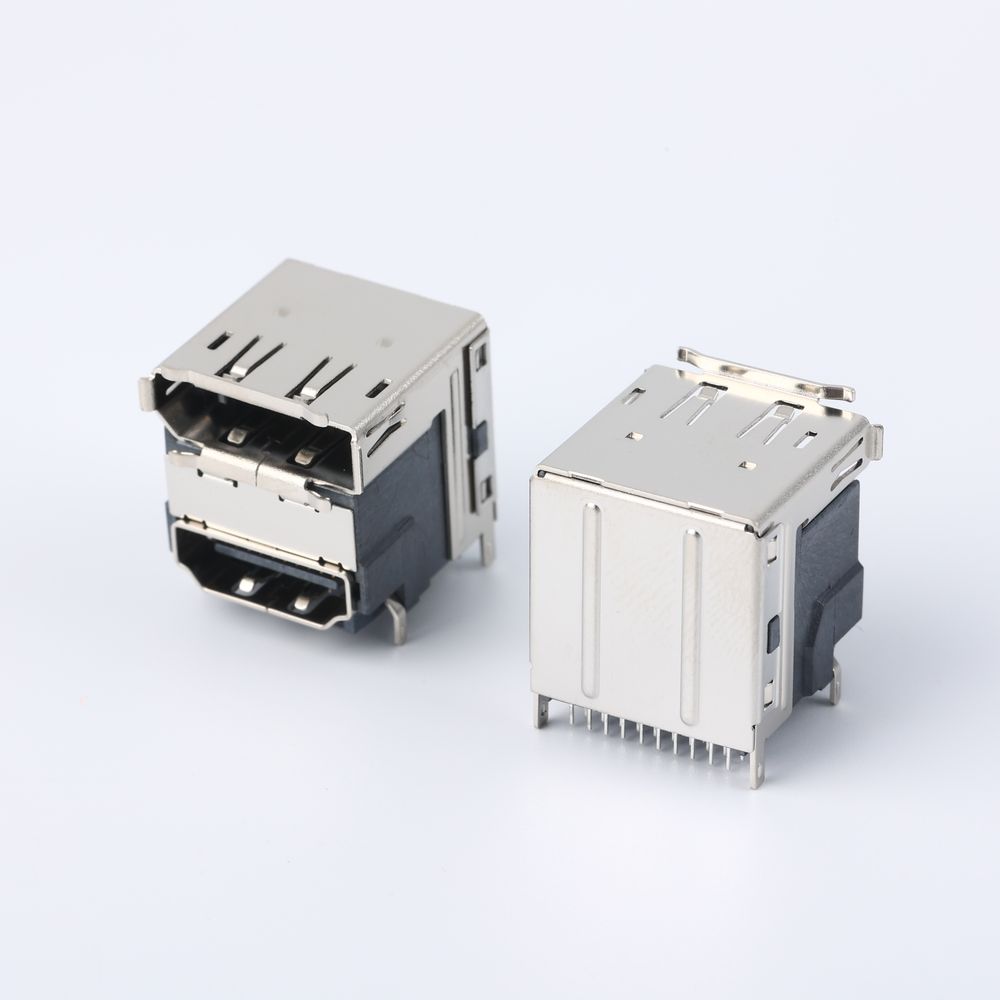

model numarası.: AAUS+11AN+4XP0
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MATERIAL: | |
| INSULATOR: | LCP(HF) UL94V-0 BLACK |
| CONTACT: | PPER ALLOY |
| HDMI SHELL: | COPPER ALLOY |
| DP SHELL: | TAINLESS STEEL |
| REAR COVER: | STAINLESS STEEL |
| MIDDLE SHIELD: | STAINLESS STEEL |
| CONTACT: | NTACT AREA GOLD PLATED |
| SOLDER ARE | |
| UNDER PLAT | |
| HDMI SHELL: | NICKEL PLATED |
| DP SHELL: | ICKEL PLATED |
| SPECIFICATION: | |
| CURRENT RATING: | 0.5A |
| VOLTAGE RATING: | 40V RMS |
| CONTACT RESISTANCE: | 30mΩ MAX. (CONTACT); 50mΩ MAX. (SHELL) |
| WITHSTANDING VOLTAGE: | 500V AC |
| INSULATION RESISTANCE: | 100MΩ MIN. |
| MATING FORCE: | 4.5Kgf(44.1N)MAX. |
| UNMATING FORCE: | 1.0Kgf~4.0Kgf(9.8N~39.2N) |
| DURABILITY: | 10000 CYCLES |
| TEMPERATURE RANGE: | -25°C TO +85°C |
