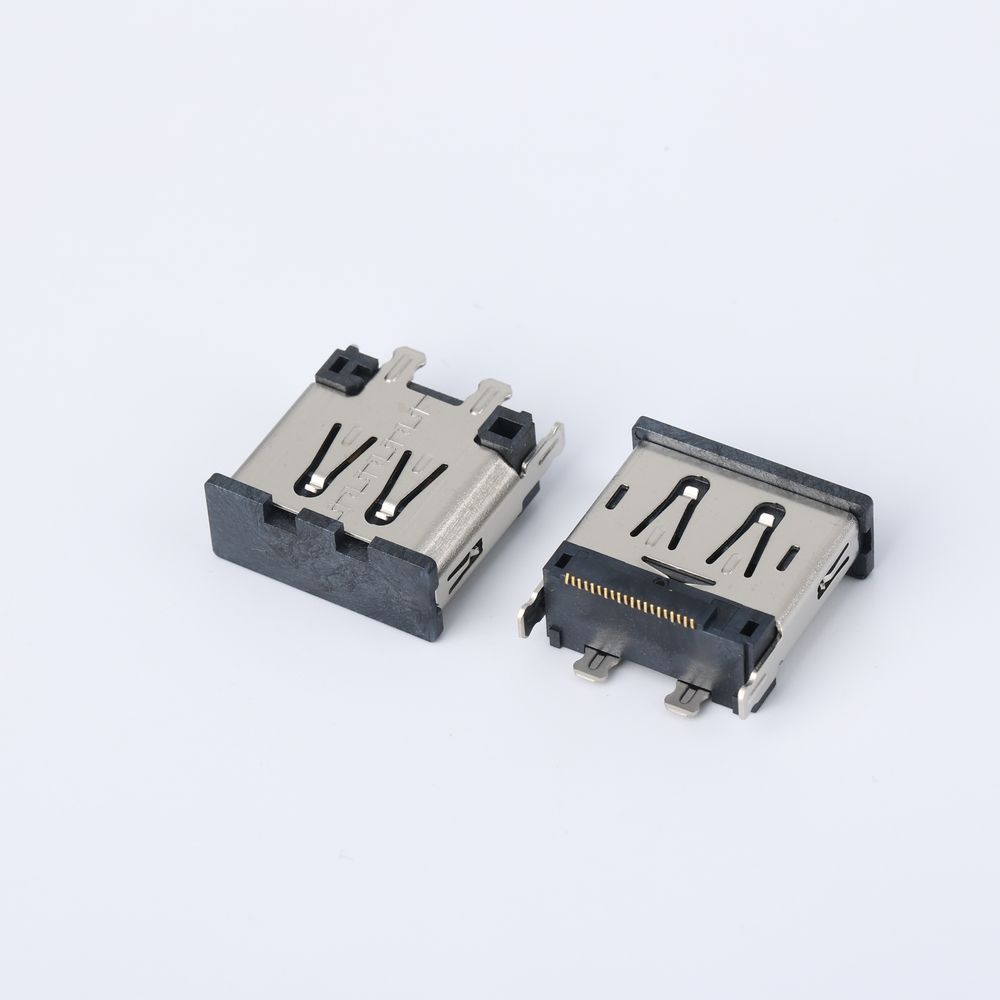

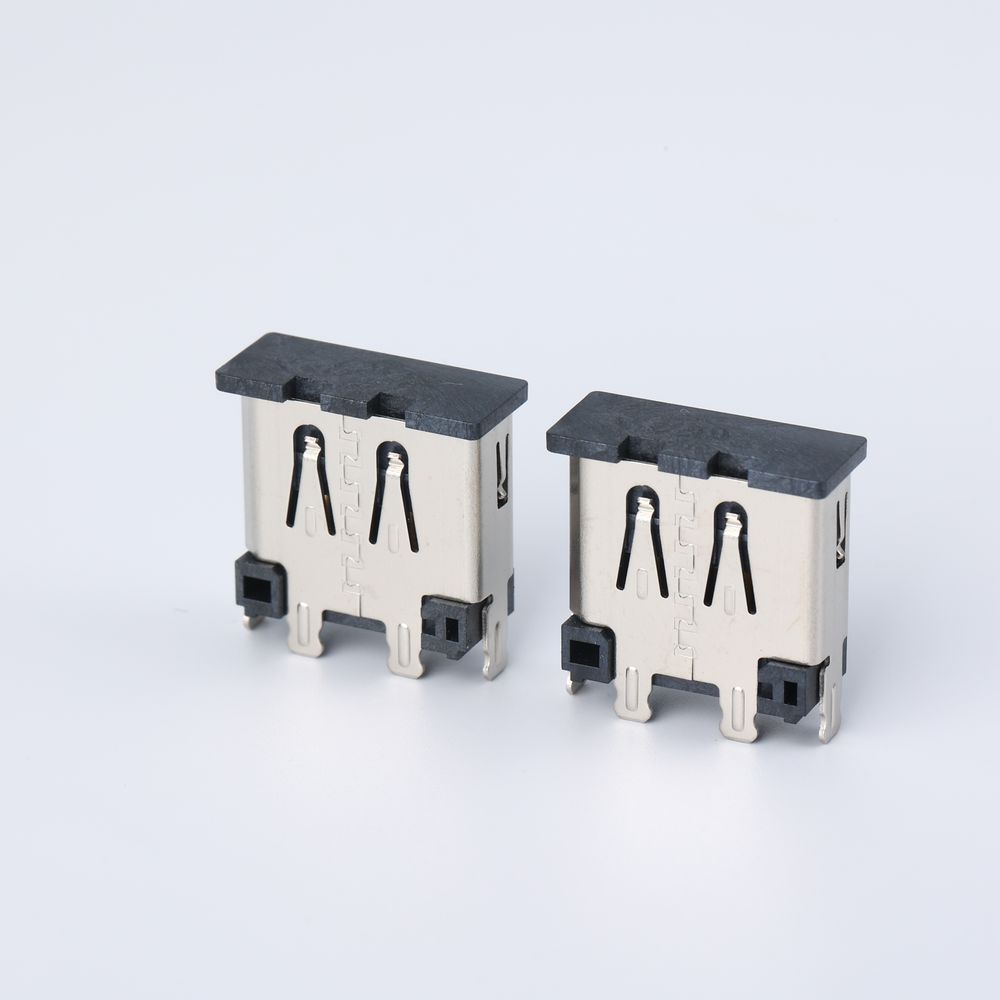

model numarası.: ADP+021S2+180B DISPLAYPORT CONNECTOR UHBR20 TYPE
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP,UL94V-0,BLACK; |
| TERMINAL: | COPPER ALLOY,T=0.15mm; |
| SHELL: | SUS ,T=0.40mm; |
| PLATING SPECIFICATION: | |
| TERMINAL: | GOLD PLATING ON CONTACT AREA,GOLD FLASH PLATING ON SOLDER TAIL,30u" MIN. NICKEL UNDERPLATED OVERALL. |
| SHELL: | NICKEL 30u" min; |
| ELECTRICAL PERFORMANCE | |
| Rated Voltage: | 40V |
| Rated Current: | 0.5A Max. |
| CONTACT RESISTANCE : | 40m OHMS MAX. |
| INSULATION RESISTANCE: | 100MO MIN. |
| DIELECTRIC WITHSTANDING VOLTAGE; 500V AC(RMS) | |
| MECHANICAL PERFORMANCE | |
| INSERTION FORCE : | 4.5kgf MAX. |
| EXTRACTION FORCE : | 1.0~4.0kgf MIN. |
| DURABILITY: | 10000 CYCLES |
| OPERATING TEMPERATURE: | -20C~+85'C |
