HDMI 19P/F SMT konektörü
Son Fiyat alın| Min. sipariş: | 1 |

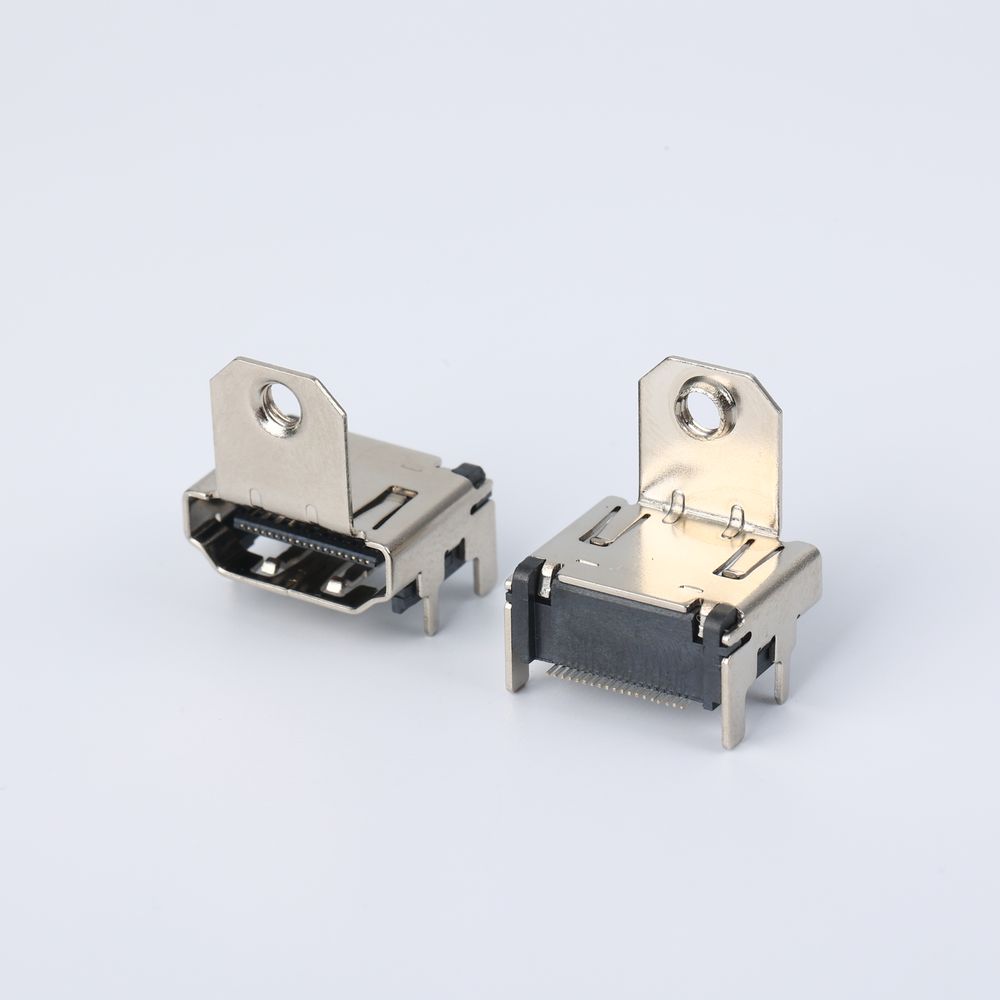

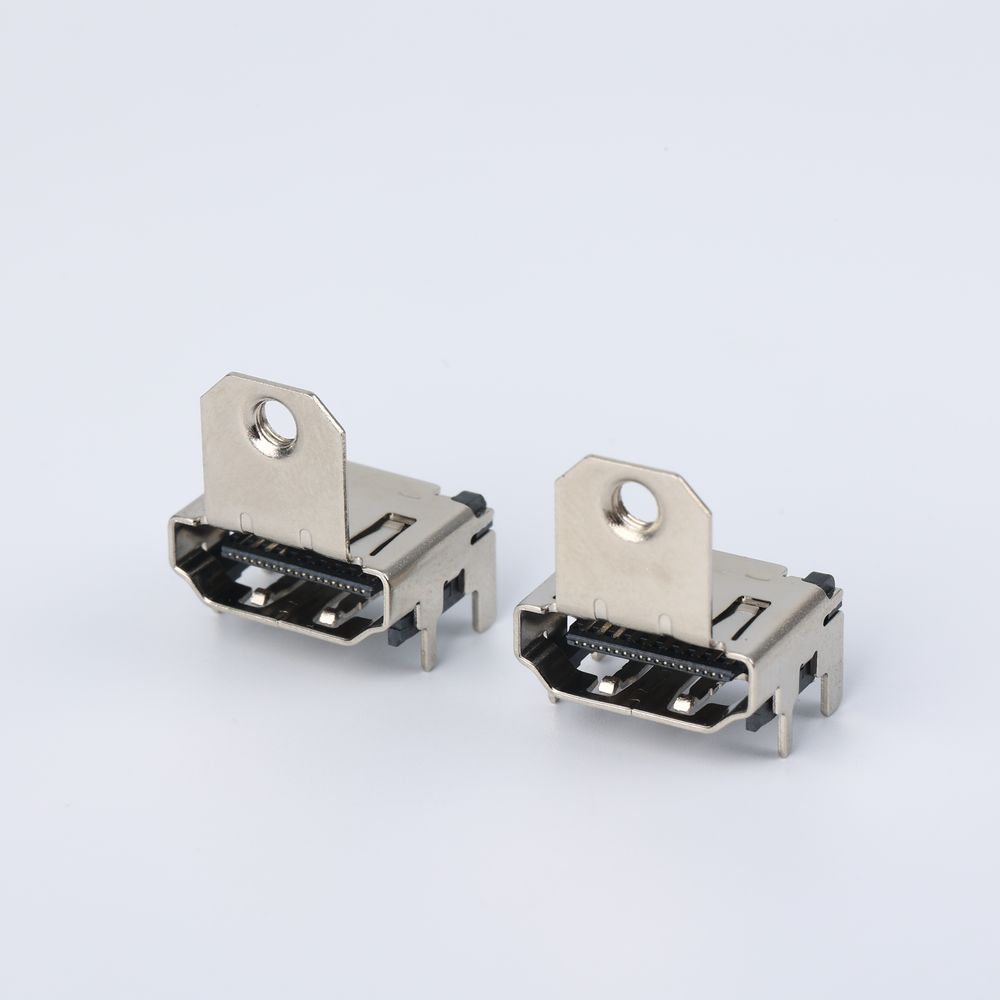

model numarası.: AAUS+19613+S197R HDMI 19P/F SMT connector
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it


| Housing: | thermoplastic plastics LCP BLACK |
| terminals: | Copper Alloy |
| G/F plated in contact area: | F plated in contact area: |
| Tin plated in termination | |
| Nickel Plated overall | |
| Shell: | Copper Alloy |
| Nickel/Au Plated overall | |
| ELECTRICAL CHARACTERISTICS: | |
| Rating Current: | 0.5 Ampere |
| Rating Voltage: | 40 V Max |
| Contact Resistance: | 30 Mili ohms |
| Insulation Resistance: | 100 Mega ohms Min. |
| MECHANICAL CHARACTERISTICS: | |
| Connector Mating force: | 4.5kg MAX |
| Connector Unmating force: | 1.0Kg min |
| Durability: | 10000Cycles. |
| ENVIRONMENT CHARACTERISTICS: | |
| Operating temperature: | -20℃ to +85℃ |
| Storage temperature: | -20℃ to +65℃ |
