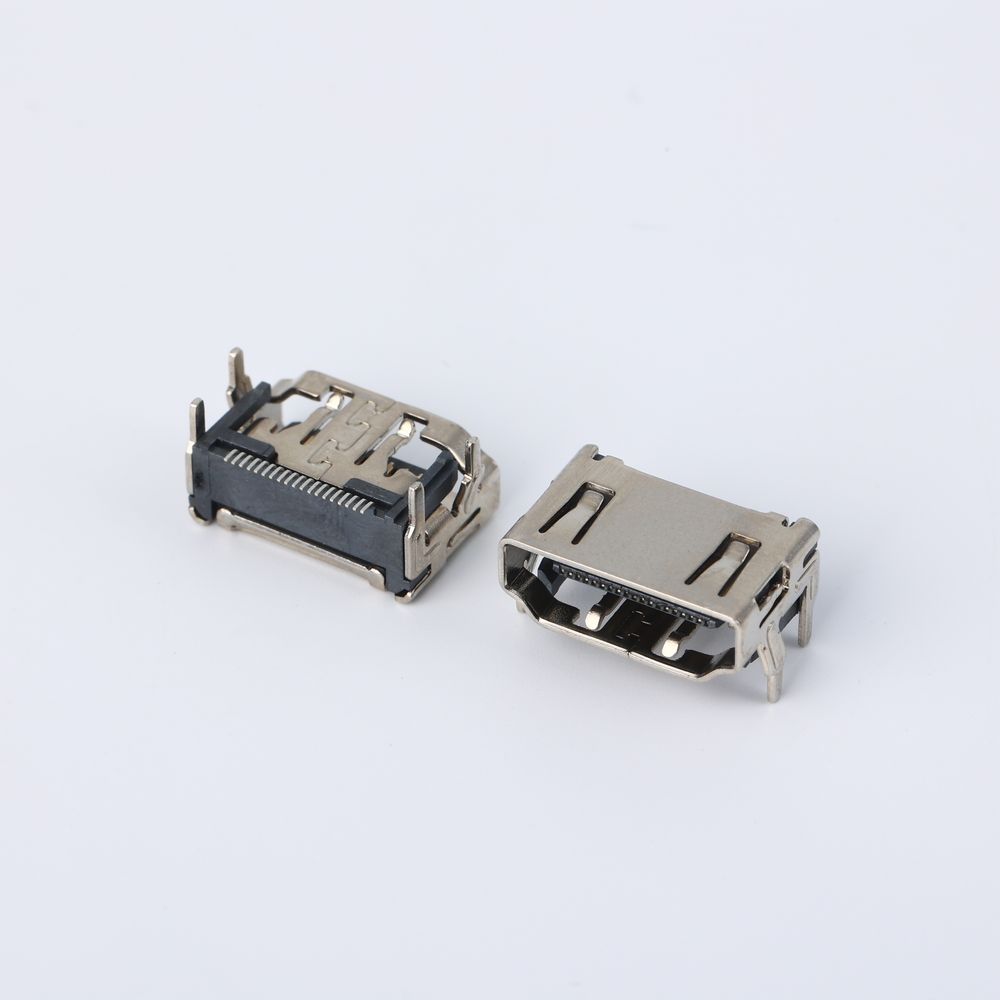

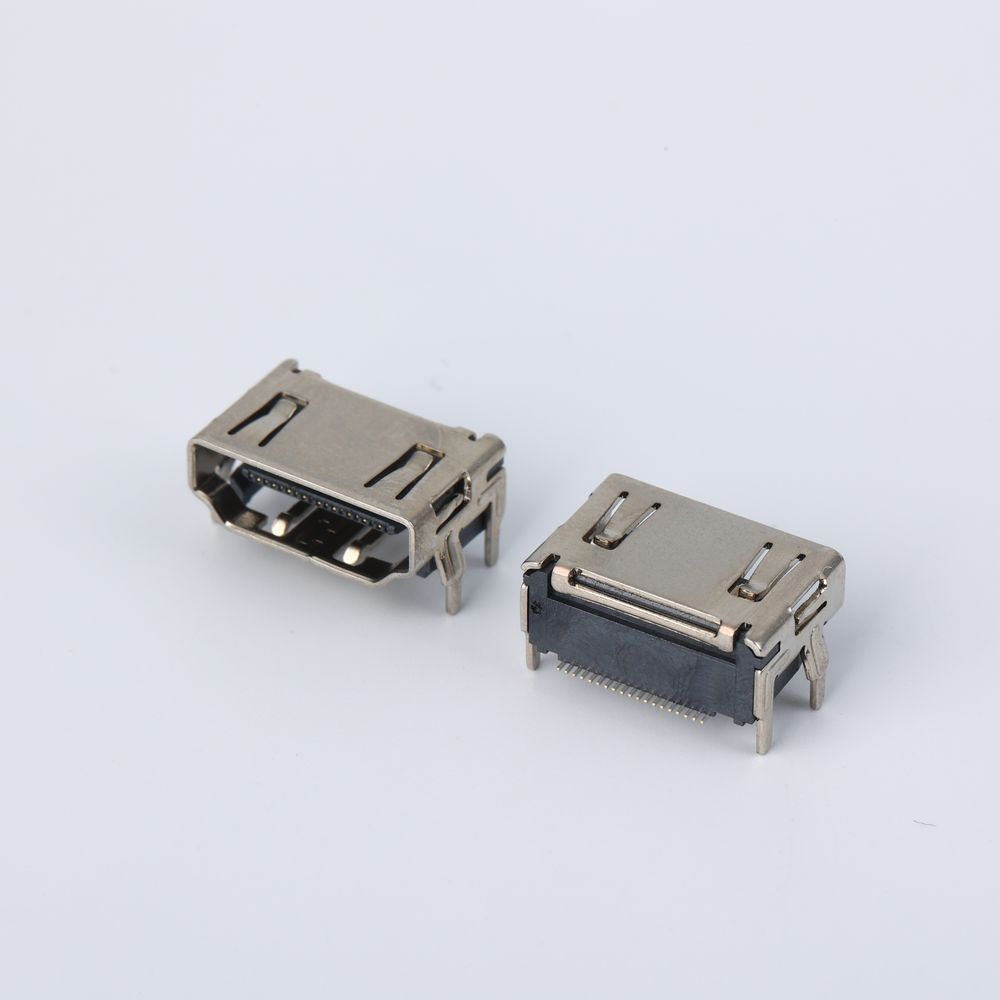

model numarası.: AAUS+19613+0197R
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | LCP,UL 94V-0,COLOR:BLACK; |
| CONTACT: | C2680 T=0.20mm |
| SHELL: | C2680 T=0.50mm |
| CONTACT: CONTACT: | 0.6u” MIN Gold Over 30u” MIN Ni. |
| SHELL: | 30u” Nickel plated over all. |
| SPECIFICATIONS: | |
| VOLTAGE RATING: | 40V |
| CURRENT RATING: | 0.5A |
| INSULATION RESISTANCE: | 100M Ω MIN |
| CONTACT RESISTANCE: | 30m Ω MAX |
| OPERATION TEMPERATURE: | -20° TO +85° |
| INSERT FORCE: | 4.0kgf MAX |
| EXTRACT FORCE: | 1.0kgf~4.0kgf |
| DURABILITY: | 5000 CYCLES |
