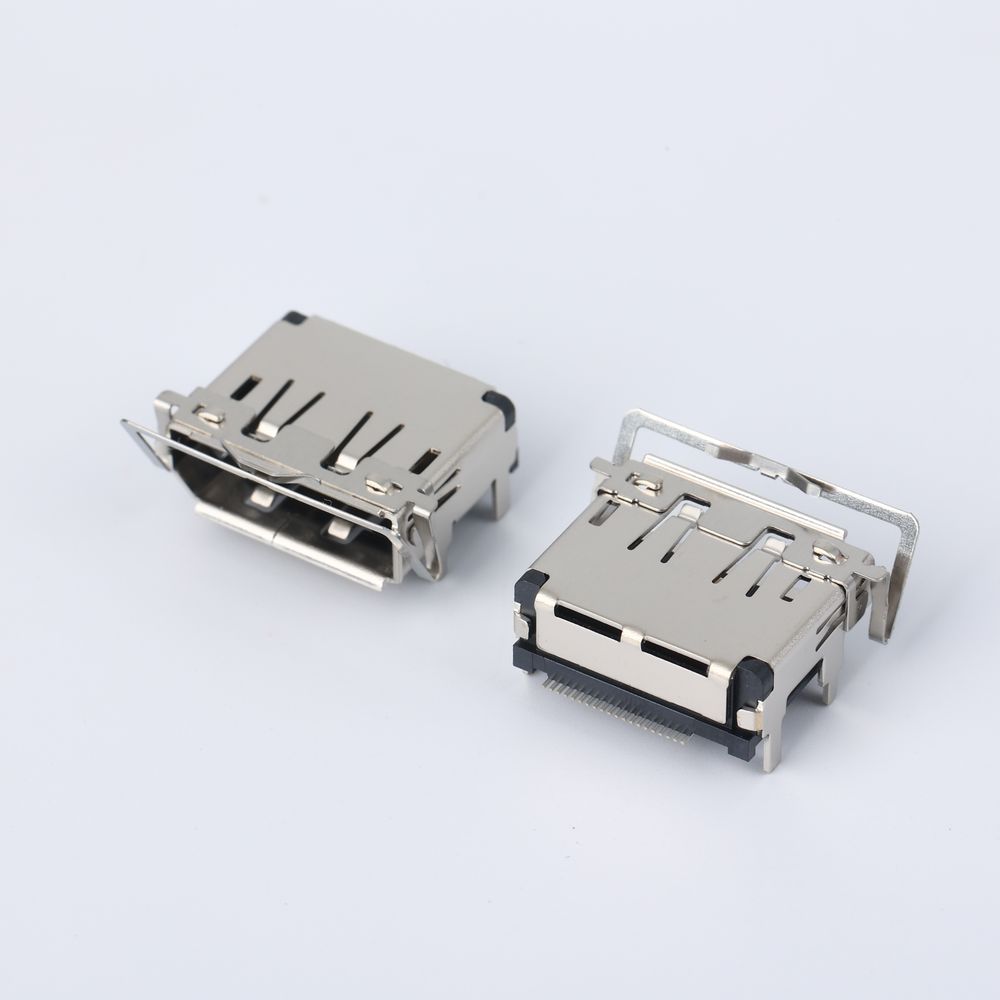

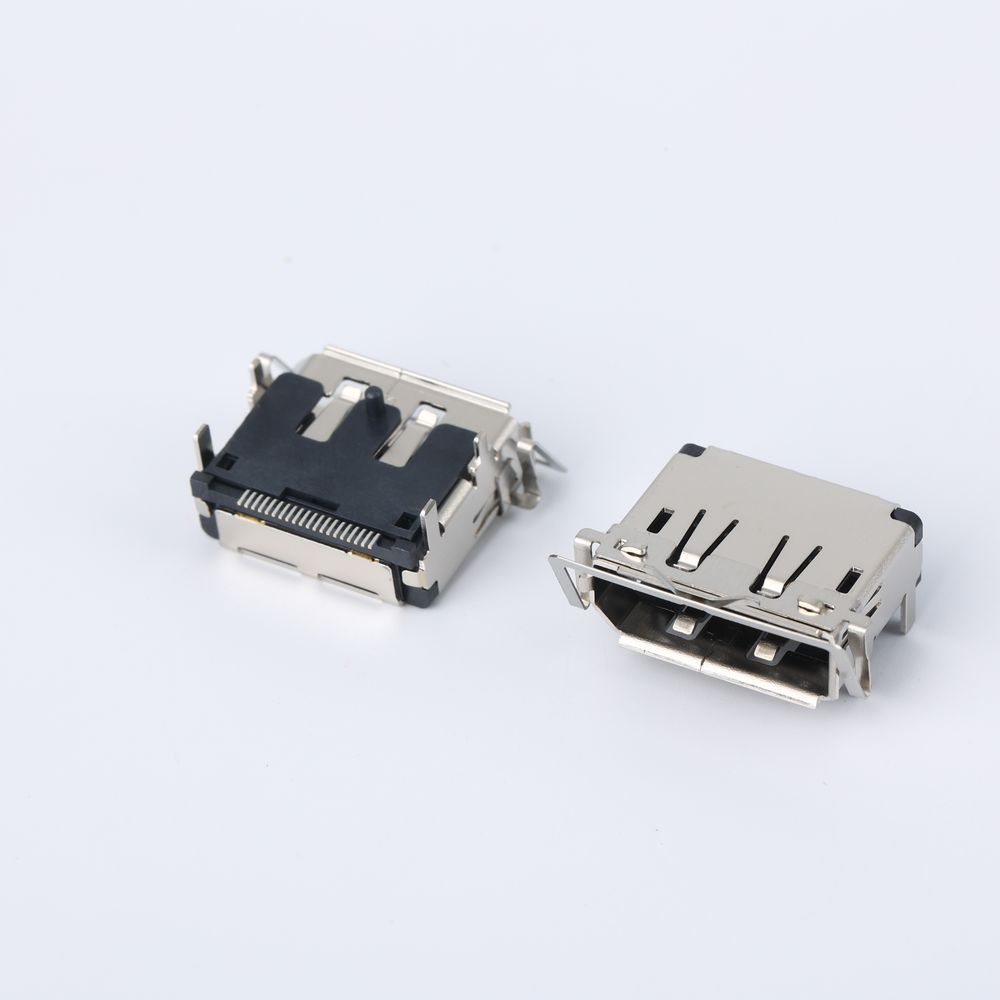

model numarası.: AAUS+11BN+JXR0 DP SMT type B connector
Marka: yifeng
Origin: Çin
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| MATERIAL | |
| Housing: | LCP(HF) UL94V-0 Black |
| Cover: | LCP(HF) UL94V-0 Black |
| Contact: | Copper Alloy T=0.20 |
| Shell: | Copper Alloy T=0.40 |
| Spring: | Stainless Steel T=0.20 |
| PLATING: | |
| Contact: | Contact Area Gold Plated，Solder Area Sn Plated，Under Plated Nickel |
| Shell: | Nickel Plated |
| SPECIFICATION: | |
| Current: | 0.5A |
| Voltage: | 40V RMS |
| Withstanding Voltage: | 500V AC |
| Contact Resistance: | 50 mΩ max. (Contact)，30 mΩ max. (Shell) |
| Insulation Resistance: | 100 MΩ min. |
| Temperature Range: | -20°C to +85°C |
| Mating And Unmating Force: | |
| Mating Force: | 4.5Kgf(44.1N)max. |
| Unmating Force: | 1.0Kgf~4.0Kgf(9.8N~39.2N) |
| Durability: | 10000 Cycles |
