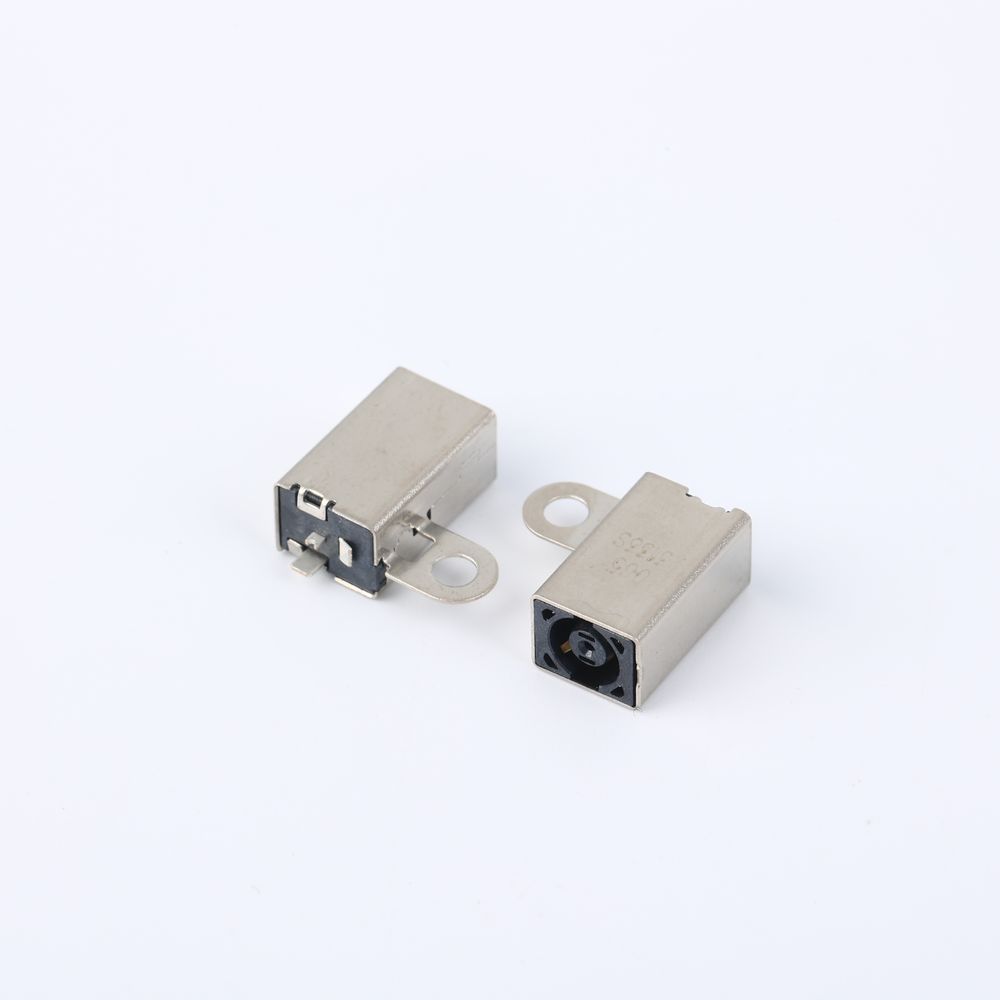

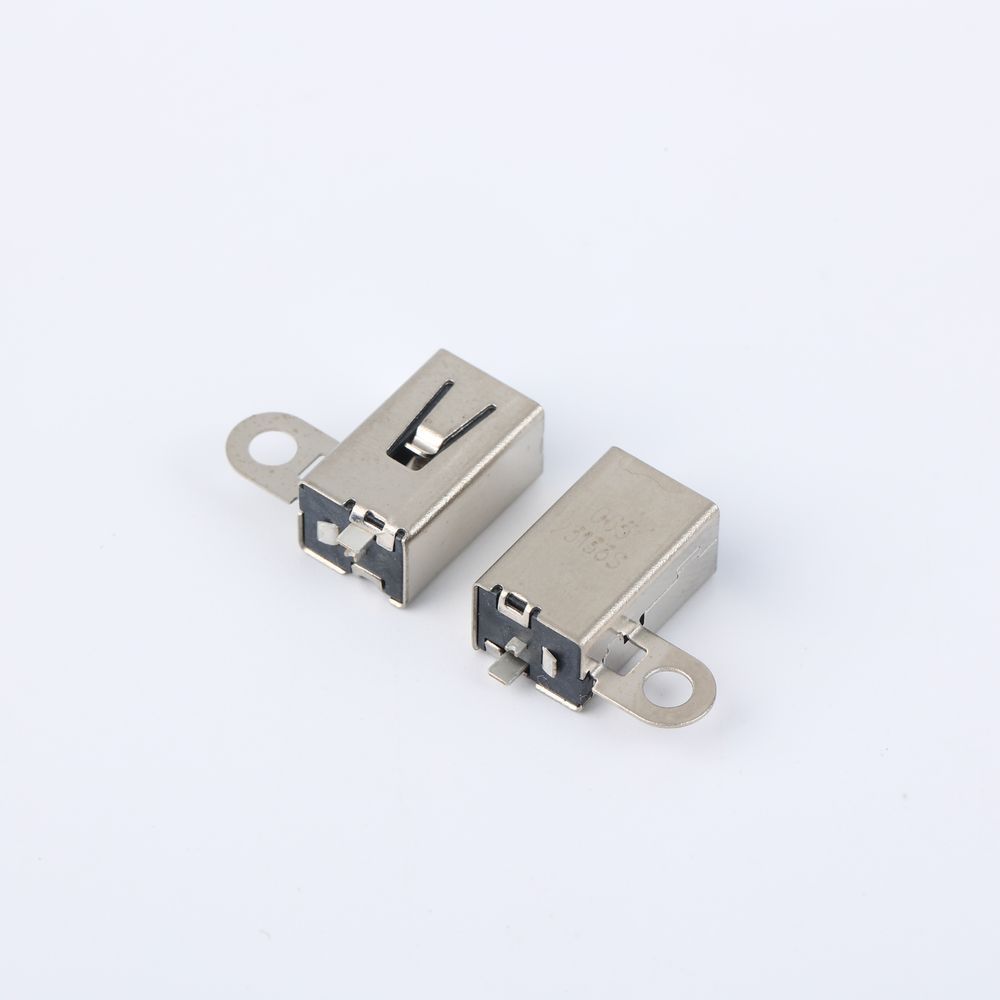

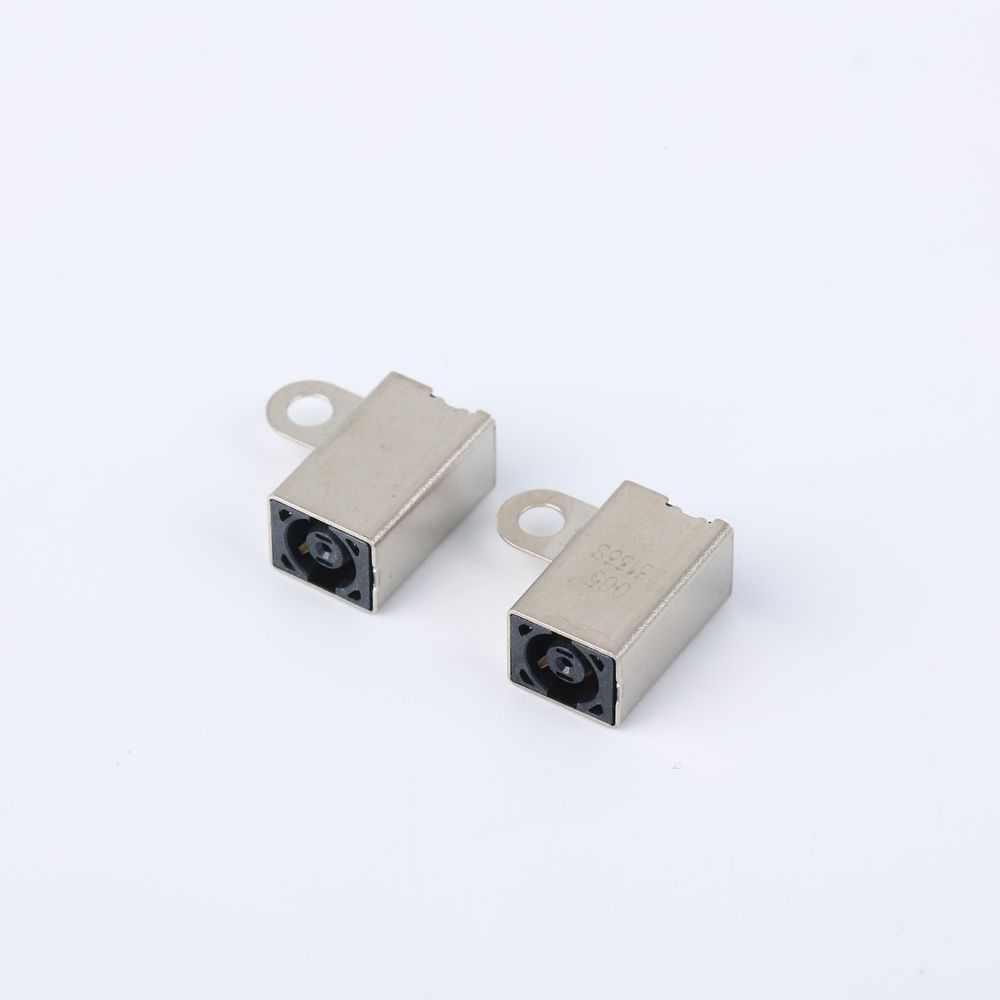

model numarası.: APJ+10U0+065 DC jack 065 H=12.0
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING/BACK COVER: | LCPE1301 BLACK |
| TERMINAL: | C5210R-EH |
| SHELL: | SUS201 1/2H, T=0.25, PLATING 50U'' NI MIN PD/NI 30U'' MIN WITH 5U'' AU PLATING AT CONTACT AREA |
| ELECTRICAL CHARACTERISTICS: | |
| RATING CURRENT: | 7.0A & Maximum Temperature Rise of 30℃（In a 20V DC voltage environment) |
| CONTCAT RESISTANCE: | MAXIMUN 30 MILLINS |
| INSULATON RESISTANCE: | MINIMUM 50 MEGOHMS |
| VOLTAGE WITHSTANDING: | DC 500V |
| BREAKING FORCE OF THE CENTER COLUMN OF THE FINISHED PRODUCT: | >15KGF |
| TERMINAL CLAMPING FORCE: | 0.2Kg/PIN |
| INSERTION FORCE : | 2.5Kgf MAX |
| PULL-OUT FORCE: | 0.8Kgf MIN (INITIAL) |
| PULL-OUT FORCE: | 0.6Kgf-2.0Kgf (AFTER 5000 CYCLES) |
