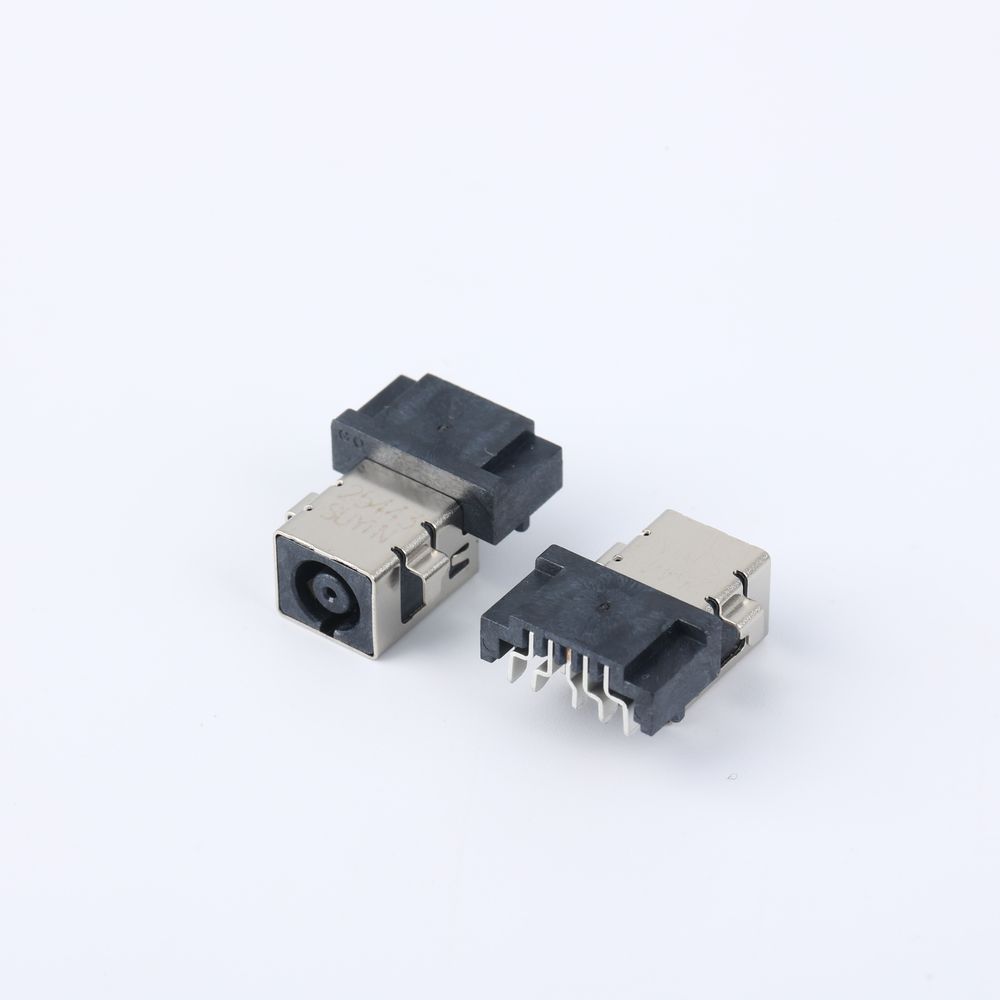

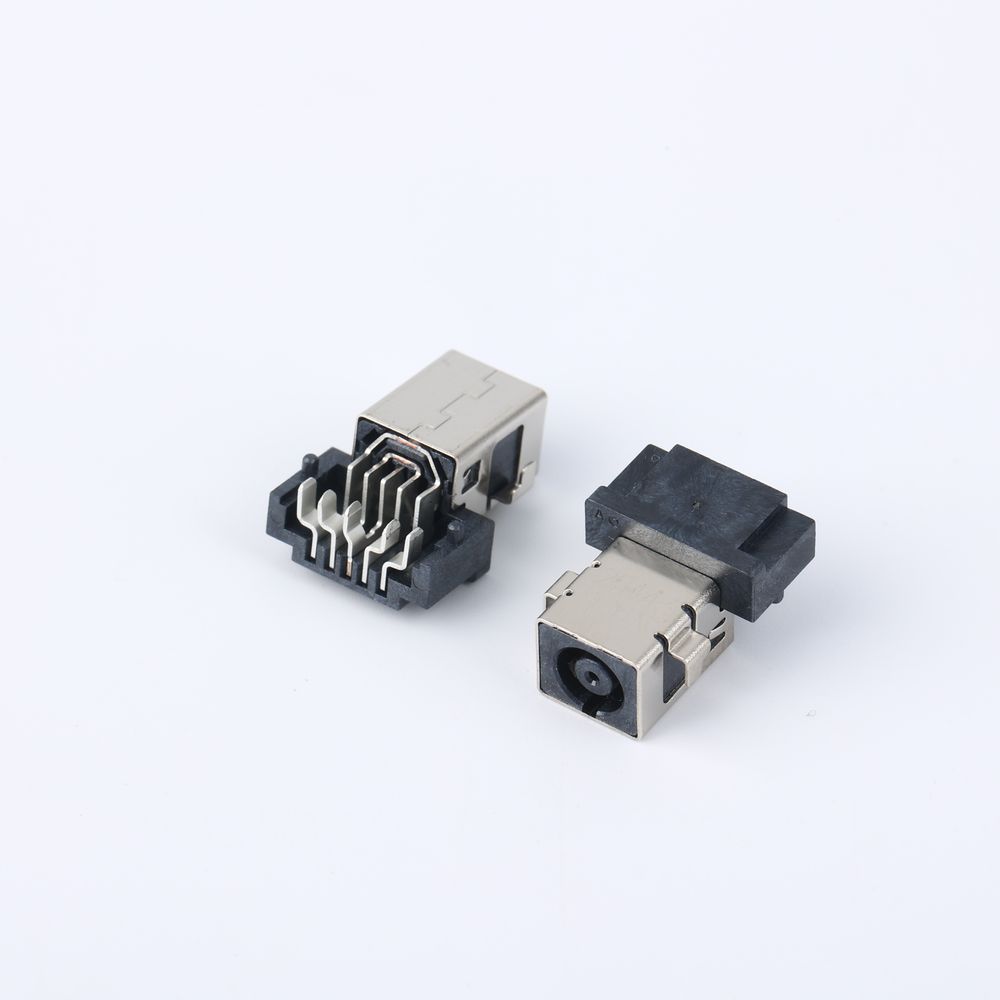

model numarası.: APJ+10U0+091 DC Jack 091 CH=-0.99mm
Marka: yifeng
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| HOUSING: | HIGH TEMP THERMOPLASTIC, BLACK |
| SHELL: | SUS201, T=0.25, PLATING 50U'' NI MIN |
| SIGNAL: | HIGH CONDUCTIVITY COPPER T=0.3, PD/NI 30U'' MIN & GOLD-PLATED 5U' MIN, OR AU 30U'' MIN ON CONTACT AREA, MATTE SN 120U'' ON SOLDE TAIL, ALL OVER NI 50U'' MIN |
| SPRING (+): | HIGH CONDUCTIVITY COPPER T=0.3, PD/NI 30U'' MIN & GOLD-PLATED 5U' MIN, OR AU 30U'' MIN ON CONTACT AREA, MATTE SN 120U'' ON SOLDE TAIL, ALL OVER NI 50U'' MIN |
| SPRING (-): | HIGH CONDUCTIVITY COPPER T=0.3, PD/NI 30U'' MIN & GOLD-PLATED 5U' MIN, OR AU 30U'' MIN ON CONTACT AREA, MATTE SN 120U'' ON SOLDE TAIL, ALL OVER NI 50U'' MIN |
| ELECTRICAL CHARACTERISTICS: | |
| RATING CURRENT: | 20V 16.5A |
| CONTCAT RESISTANCE: | 30mΩ MAX |
| DIELECTRIC WITHSTANDING VOLTAGE: | 500V AC FOR ONE MINUTE |
| INSULATON RESISTANCE: | 100mΩ MIN MEASURED BY 500 V DC |
| VOLTAGE WITHSTANDING: | DC 500V |
| INSERTION FORCE : | 0.6~2.5Kgf |
| WITHDRAWAL FORCE: | 0.6~2.5Kgf |
| LIFE TEST: | 5000 CYCLES |
